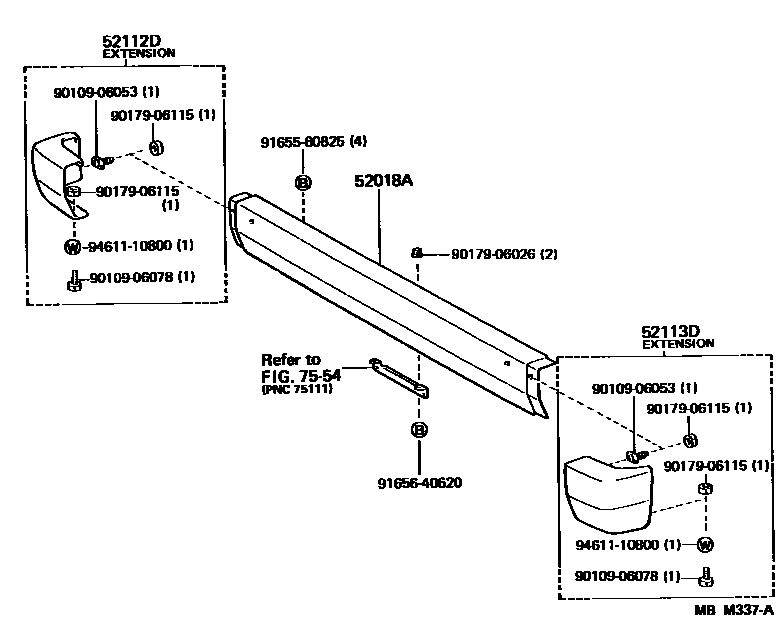

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52018ABAR SUB-ASSY, FRONT BUMPER GUARD

main52018-95J12iLH51,6#,YH51,6#;LH56,YH56..02S,R198708-198908

main52018-95J14iLH56,YH56..U198708-198908

main52018-95J15iYH61..U;YH61..V5D..(4HC,5H);YH51,66..LHD..V4D..(4H,5F)198708-198908

SWEDEN SPEC

main52018-95J16iLH61..LHD..03S;YH61..V5D..MTM..03S;LH5#,66,YH51..LHD..VSP..MTM198708-198808

FINLAND SPEC

52112DEXTENSION, FRONT BUMPER, RH

main52112-29035iLH5#,6#,YH5#,6#198708-198908

52113DEXTENSION, FRONT BUMPER, LH

main52113-29035iLH5#,6#,YH5#,6#198708-198908

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

9010906053

main90109-06053

9010906078

main90109-06078

9017906026

main90179-06026

9017906115

main90179-06115

9165560825

main91655-60825

9165640620

main91656-40620

9461110800

main94611-10800

11 parts on this diagram · 2 diagrams in section
