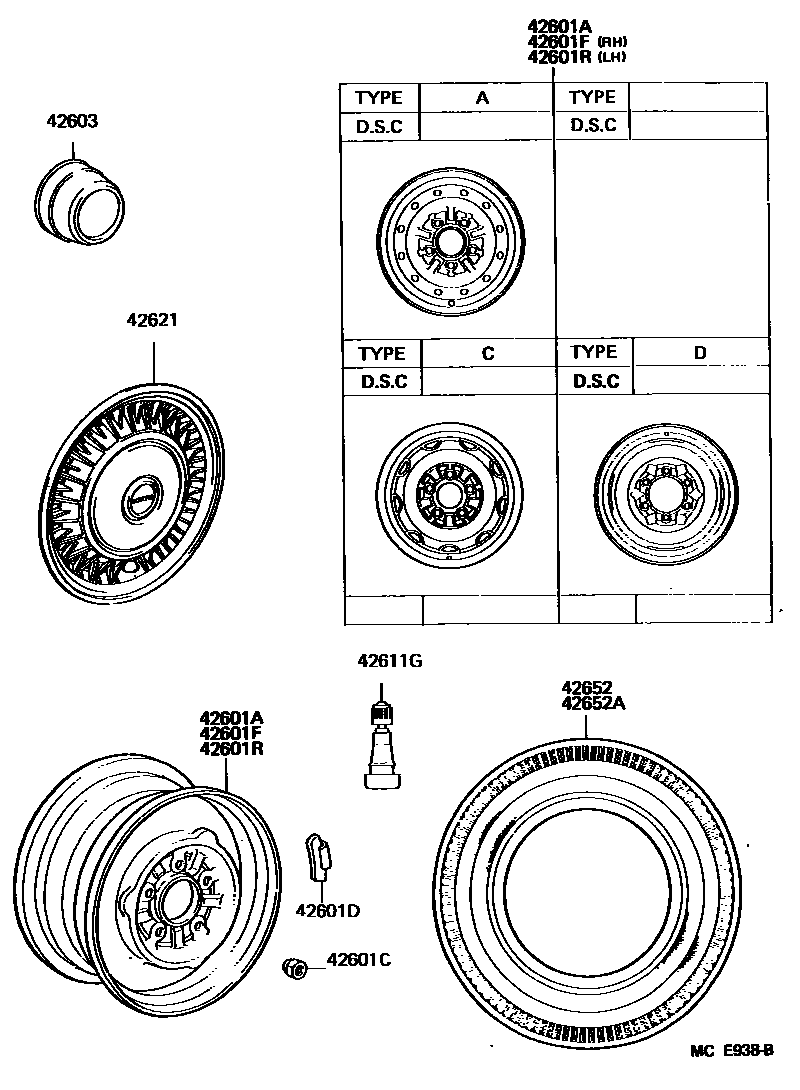

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42601-26180-01iLH51,61,YH51,61198708-198908

14X4.5J,BLACK,045 ,148 ,153 ,358 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2

main42601-26250-03iLH51,61,YH51,61198708-198908

5.5J-14, #,SILVER,045 ,148 ,153 ,358 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iLH51,61,YH51,61198708-198908

main90942-01030×24iLH56,66,YH56,66198708-198908

main90942-01059×20iLH51,61,YH51,61198708-198908

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iLH51,61,YH51,61198708-198908

20G,T=8

main90942-03020iLH51,61,YH51,61198708-198908

30G,T=10

main90942-03022iLH51,61,YH51,61198708-198908

40G,T=9.5

main90942-03025iLH51,61,YH51,61198708-198908

50G,T=9.5

main90942-03027iLH51,61,YH51,61198708-198908

60G,T=9.5

main90942-03029iLH51,61,YH51,61198708-198908

70G,T=9.5

main90942-03031iLH51,61,YH51,61198708-198908

80G,T=9.5

main90942-03041iLH51,61,YH51,61198708-198908

10G,T=7.5

main90942-03079iLH56,66,YH56,66198708-198908

20G,T=10

main90942-03080iLH56,66,YH56,66198708-198908

30G,T=9.3

main90942-03081iLH56,66,YH56,66198708-198908

40G,T=9.3

main90942-03082iLH56,66,YH56,66198708-198908

50G,T=9.3

main90942-03083iLH56,66,YH56,66198708-198908

60G,T=9.3

main90942-03084iLH56,66,YH56,66198708-198908

70G,T=9.3

main90942-03085iLH56,66,YH56,66198708-198908

80G,T=9.3

main90942-03086iLH56,66,YH56,66198708-198908

100G

main90942-03107iLH56,66,YH56,66198708-198908

10G,T=8

42601FWHEEL, DISC (FOR FRONT)

main42601-26180-01×2iLH51,61,YH51,61198708-198908

14X4.5J,BLACK,045 ,148 ,153 ,358 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2

main42601-26250-03×2iLH51,61,YH51,61198708-198908

5.5J-14, #,SILVER,045 ,148 ,153 ,358 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2

42601RWHEEL, DISC (FOR REAR)

main42601-26180-01×2iLH51,61,YH51,61198708-198908

14X4.5J,BLACK,045 ,148 ,153 ,358 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2

main42601-26250-03×2iLH51,61,YH51,61198708-198908

5.5J-14, #,SILVER,045 ,148 ,153 ,358 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26070×4iLH51,61,YH51,61198708-198908

*STE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iLH5#,6#,YH5#,6#198708-198908

42621CAP, WHEEL

main42621-26160×4iLH51,61,YH51,61198708-198908

42652TIRE

main42652-26010×4iLH61,YH61..J;LH51,YH51..03S,J,R198708-198908

185R14C-6

main42652-26020×4iLH51,YH51..U;LH61,YH61..03S,15S,R,U198708-198908

185R14C-8

main42652-26210×4iLH56,66,YH56,66198708-198908

195R15-6

42652ATIRE (FOR SPARE)

main42652-26010iLH61,YH61..J;LH51,YH51..03S,J,R198708-198908

185R14C-6

main42652-26020iLH51,YH51..U;LH61,YH61..03S,15S,R,U198708-198908

185R14C-8

main42652-26210iLH56,66,YH56,66198708-198908

195R15-6

10 parts on this diagram · 1 diagram in section
