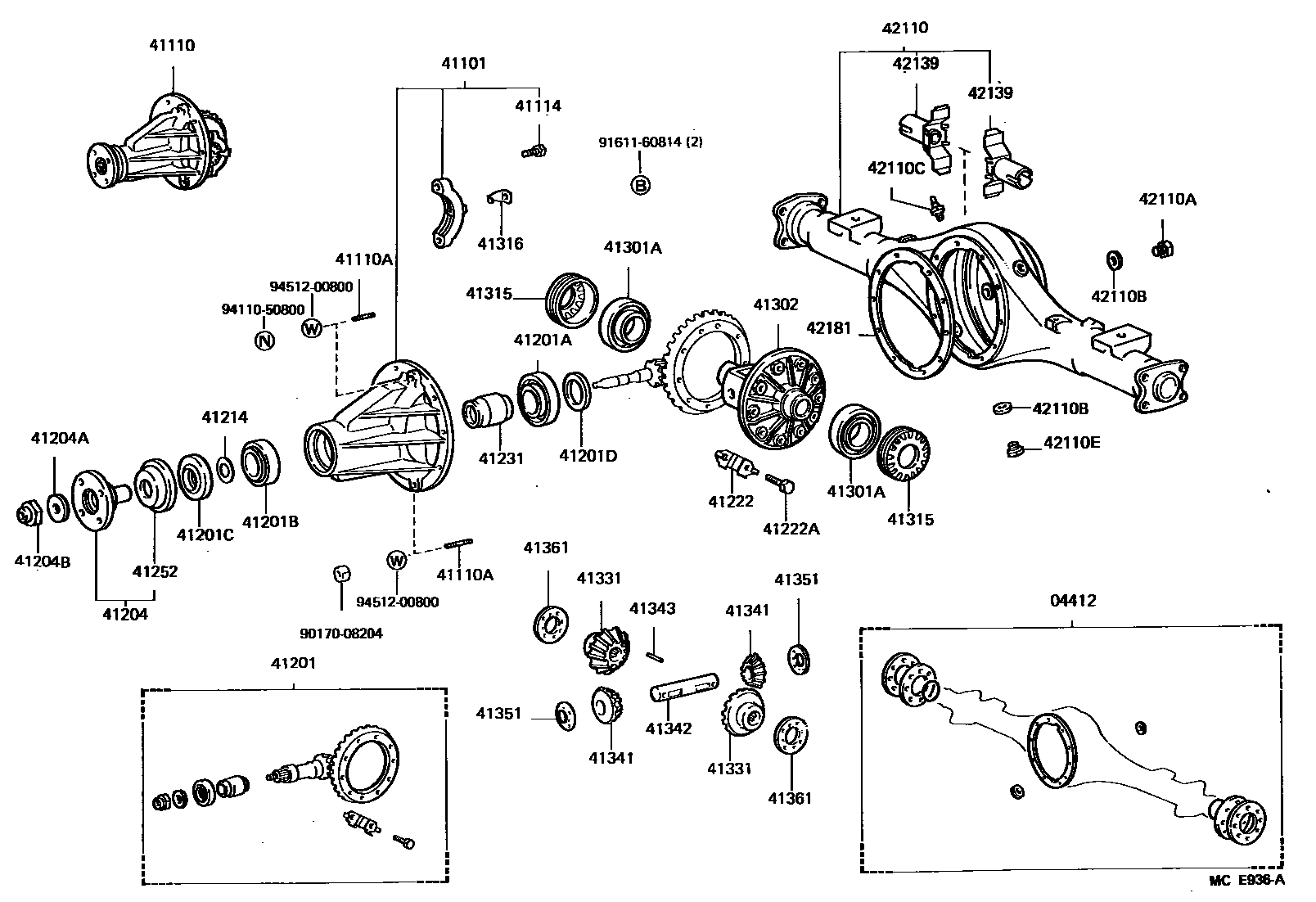

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=39:8=4.875,*AXC=G145,*FGR=39:8,W(LSD)
*FGR=39:8=4.875,*AXC=G145,*FGR=39:8
*FGR=39:8=4.875
*FGR=37:7=5.286
*FGR=37:7=5.286,W(LSD)
*FGR=37:7=5.286
*FGR=41:8=5.125,*AXC=G152,*FGR=41:8
*FGR=41:8=5.125
*FGR=41:8=5.125,*AXC=G155,*FGR=41:8
*FGR=41:8=5.125,*AXC=G155,*FGR=41:8,W(LSD)
*FGR=41:8=5.125
*FGR=37:7=5.285,*AXC=G162,*FGR=37:7
*FGR=37:7=5.285
*FGR=39:8=4.875
*FGR=43:10=4.300
*FGR=39:8=4.875
*FGR=43:10=4.300
*FGR=43:10=4.300
*FGR=43:10=4.300,W(LSD)
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
L=36
L=44
L=38
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:8=5.125
*FGR=43:10=4.300
*FGR=39:8=4.875
*FGR=37:7=5.285
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W(LSD)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W(LSD)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
W(LSD)
41341PINION, REAR DIFFERENTIAL
W(LSD)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
T=1.7
T=1.8
T=0.15
T=0.20
T=0.25
T=0.30
T=0.35
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9017008204
main90170-08204
9161160814
main91611-60814
9411050800
main94110-50800
9451200800
main94512-00800
39 parts on this diagram · 2 diagrams in section
