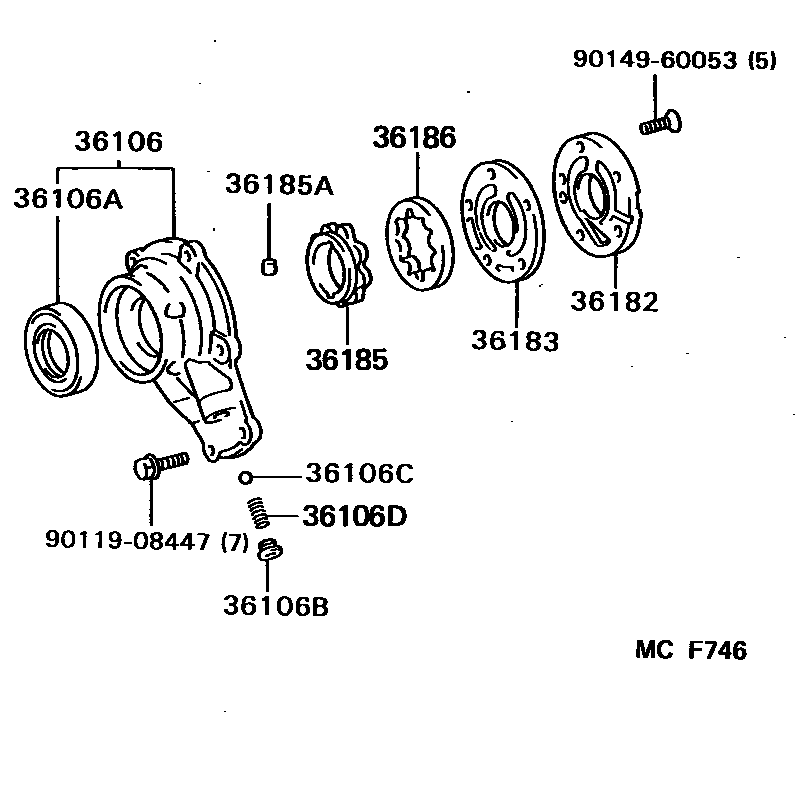

TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-28020iLH56,66,YH56,66198708-198908

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90310-40002iLH56,66,YH56,66198708-198908

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iLH56,66,YH56,66198708-198908

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iLH56,66,YH56,66198708-198908

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iLH56,66,YH56,66198708-198908

36182COVER, TRANSFER OIL PUMP

main36182-28010iLH56,66,YH56,66198708-198908

36183PLATE, TRANSFER OIL PUMP

main36183-28010iLH56,66,YH56,66198708-198908

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-28010iLH56,66,YH56,66198708-198908

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025×2iLH56,66,YH56,66198708-198908

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-28010iLH56,66,YH56,66198708-198908

9011908447

main90119-08447

9014960053

main90149-60053

12 parts on this diagram · 1 diagram in section
