TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

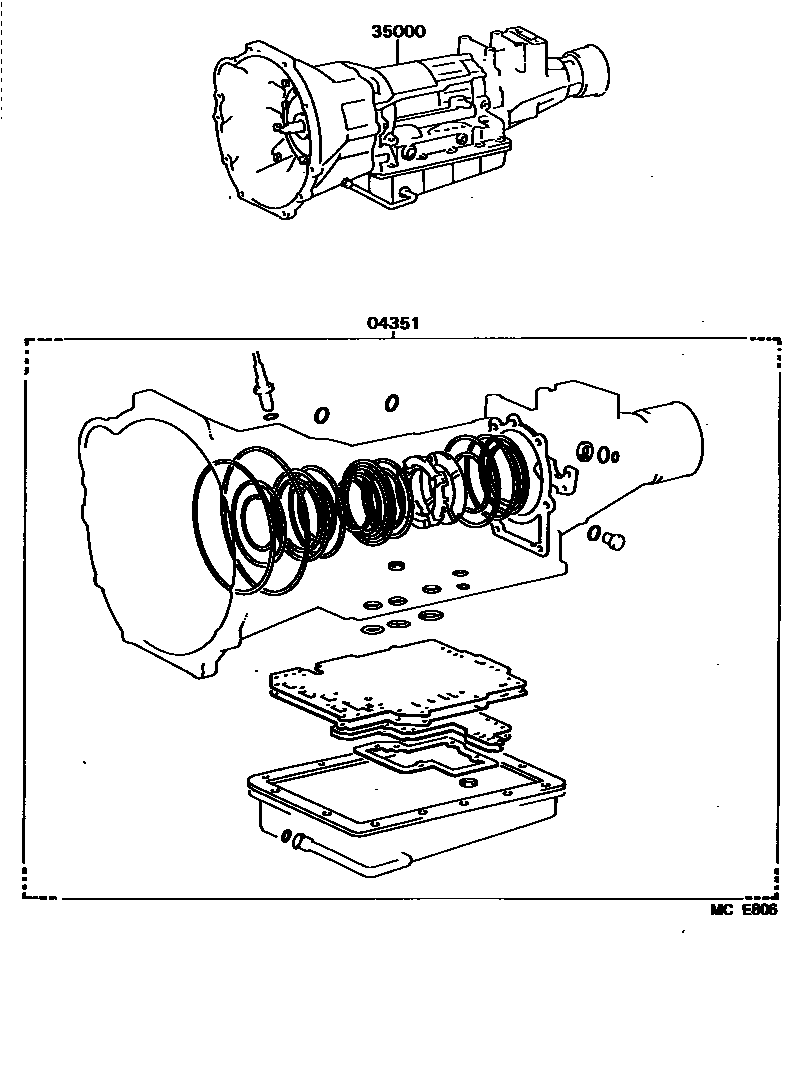

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-28020i198708-198908

35000TRANSMISSION ASSY, AUTOMATIC

main35000-26400i198708-198908

main35000-26420i198708-198908

2 parts on this diagram · 1 diagram in section
