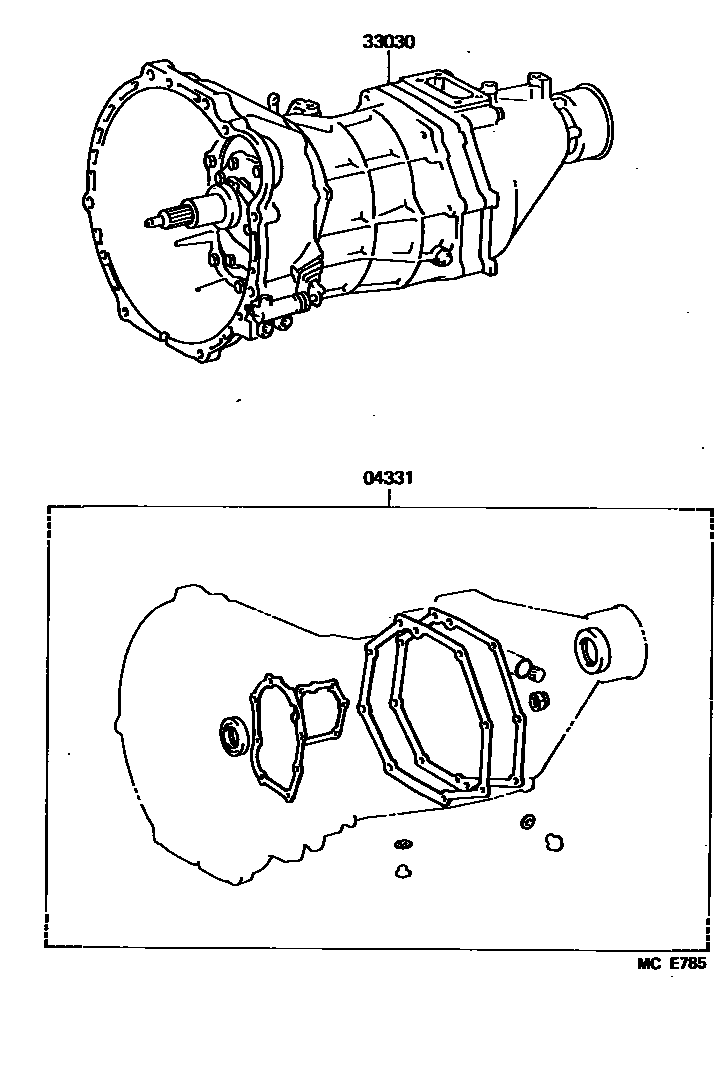

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G45,G55,G56 0002 1R351F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26020iLH56,66,YH56,66198708-198908

main04331-35101iLH51,61,YH51,61..MTM198708-198908

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-26480iLH56,66198708-198908

main33030-26490iYH56,66198708-198908

main33030-26920iYH51,61..V..5H198708-198908

main33030-26922iLH51,61..5H198708-198908

G55

main33030-26928iYH51,61..5H..R; YH51..V4D..5H..03S; YH61..15S; YH61..LHD..5H..(03S,U)198708-198808

SWITZERLAND SPEC

main33030-26929iLH61..LHD..5H..(03S,R)198708-198808

SWITZERLAND SPEC

main33030-26930iYH51,61..4H198708-198908

2 parts on this diagram · 2 diagrams in section
