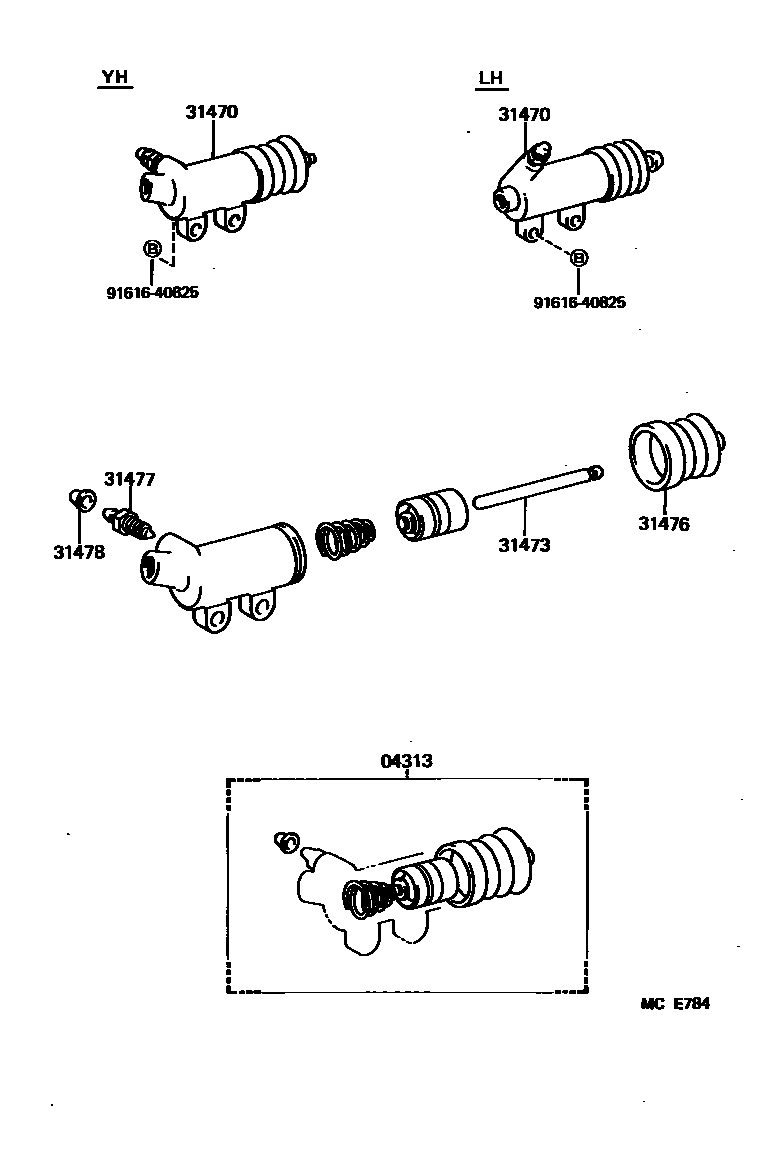

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLH51,61,YH5#,6#..MTM198808-198908

main04313-22020iLH56,66198708-198908

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLH56,66198708-198908

main31470-30220iLH51,61..5H198708-198808

main31470-30221iLH51,61..5H198808-198908

main31470-30260iYH51,61..MTM198808-198908

main31470-35050iYH51,61..MTM198708-198808

main31470-35070iYH56,66198708-198808

main31470-35071iYH56,66198808-198908

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLH5#,6#,YH5#,6#..MTM198708-198908

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLH5#,6#,YH5#,6#..MTM198708-198908

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLH5#,6#,YH5#,6#..MTM198708-198908

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLH5#,6#,YH5#,6#..MTM198708-198908

9161640825

main91616-40825

7 parts on this diagram · 1 diagram in section
