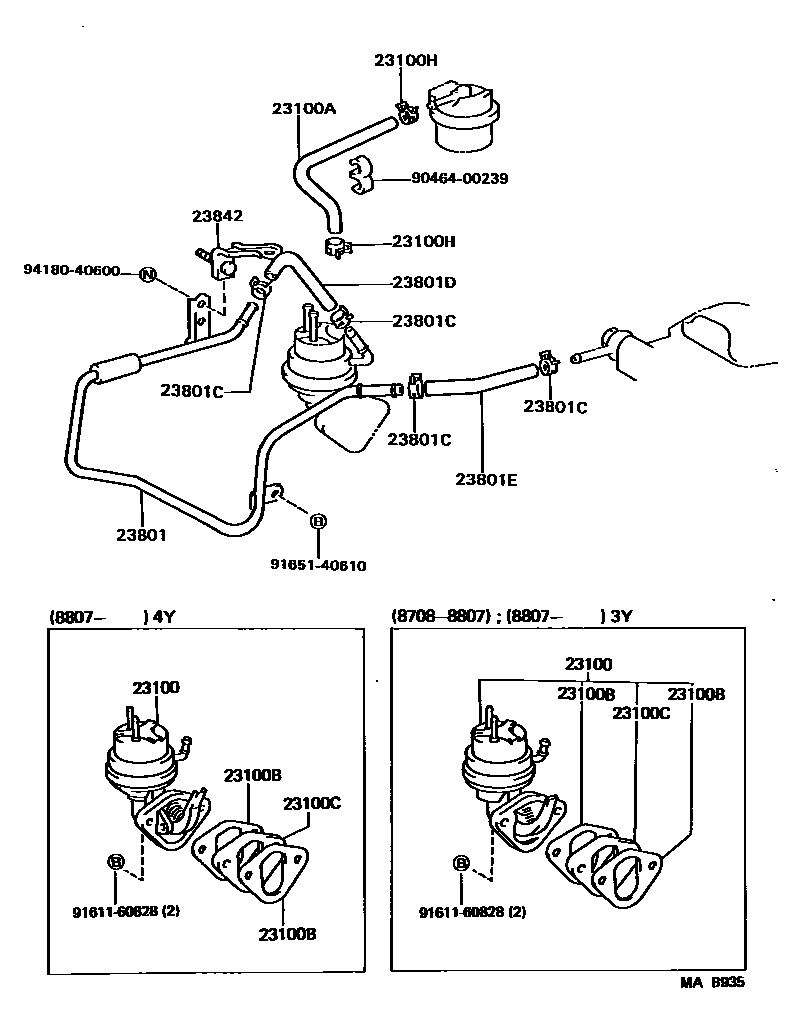

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-73021i4Y..YH56,66198807-198908

main23100-79025i4Y..YH56,66198708-198807

main23100-79026i3Y..YH51,61198811-198908

23100AHOSE, FUEL

main95333-06060i3Y,4Y..YH5#,6#198708-198908

23100BGASKET, FUEL PUMP

main90923-05016×2i3Y,4Y..YH5#,6#198708-198908

23100CINSULATOR, FUEL PUMP

main90923-06008i3Y,4Y..YH5#,6#198708-198908

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i3Y,4Y..YH5#,6#198708-198908

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i3Y,4Y..YH5#,6#198708-198908

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×4i3Y,4Y..YH5#,6#198708-198908

23801DHOSE, FUEL PIPE, NO.1

main95333-06010i3Y,4Y..YH5#,6#198708-198908

L=100

23801EHOSE, FUEL PIPE, NO.2

main95333-06010i3Y,4Y..YH5#,6#198708-198908

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-71011i3Y,4Y..YH5#,6#198708-198801

main23841-71012i3Y,4Y..YH5#,6#198801-198908

9046400239

main90464-00239

9161160828

main91611-60828

9165140610

main91651-40610

9418040600

main94180-40600

14 parts on this diagram · 1 diagram in section
