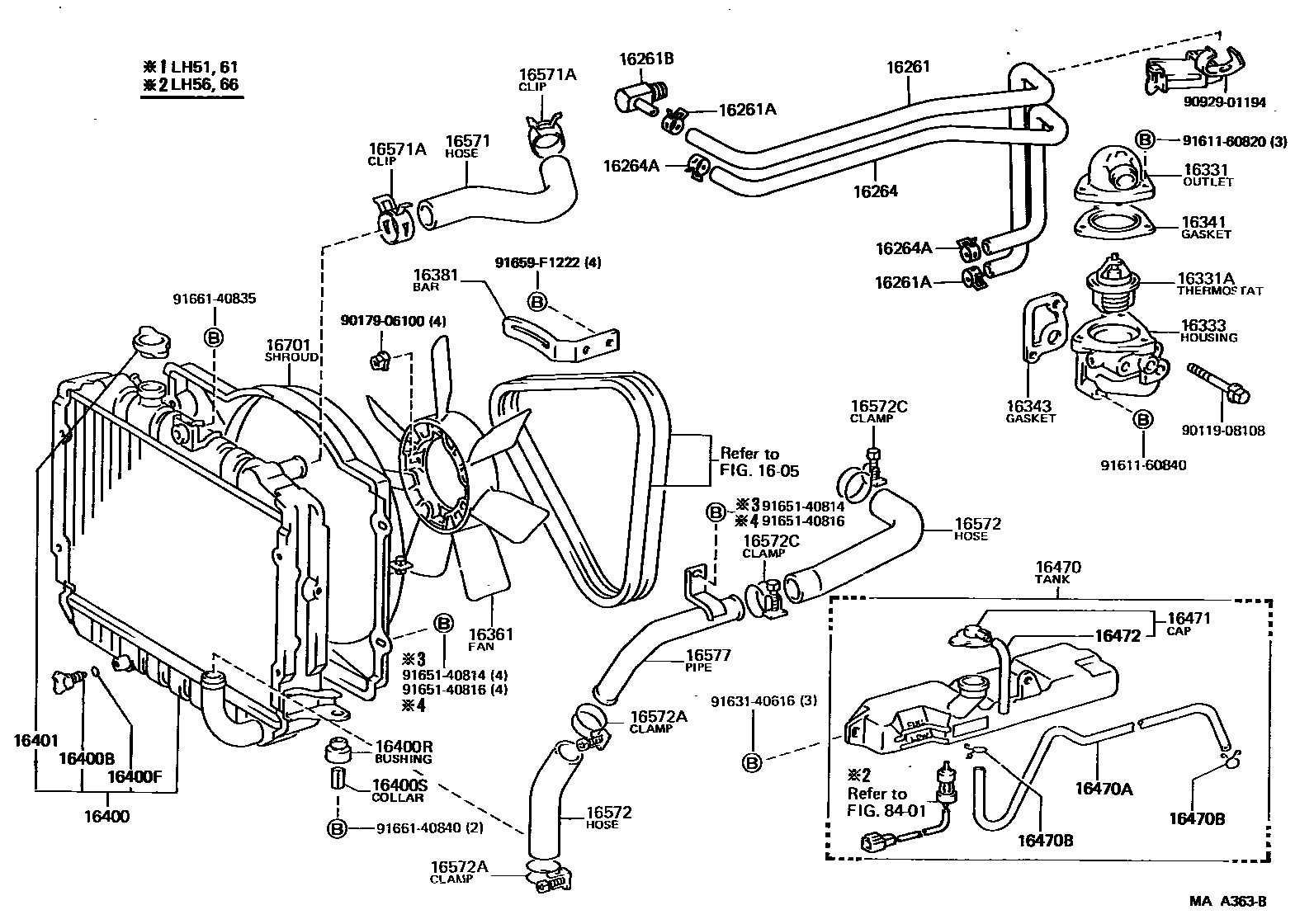

RADIATOR & WATER OUTLET

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-54070i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004×2i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-52015i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

16264HOSE, WATER BY-PASS, NO.2

main16264-54060i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15004×2i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

16331OUTLET, WATER

main16331-54030i2L..LH5#,6#198708-198908

main16331-71010i3Y,4Y..YH5#,6#198708-198908

16331ATHERMOSTAT

main90916-03062i2L..LH5#,6#198708-198805

*WAX 88-100

main90916-03069i3Y,4Y..YH5#,6#198708-198908

*WAX 82-95

main90916-03072i2L..LH5#,6#198805-198908

*WAX 88-100

16333HOUSING, WATER OUTLET

main16333-54050i2L..LH5#,6#198708-198908

main16333-54070i2L..LH51..LHD..VSP..5H;2L..LH61..LHD..5H..(03S,U)198808-198908

AUSTRIA SPEC

16341GASKET, WATER OUTLET

main16341-54011i2L..LH5#,6#198708-198808

main16341-54030i2L..LH5#,6#198808-198908

main16341-71010i3Y,4Y..YH5#,6#198708-198908

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LH5#,6#198708-198908

16361FAN

main16361-38010i3Y,4Y..YH5#,6#198708-198908

main16361-54020i2L..LH5#,6#198708-198908

16381BAR, FAN BELT ADJUSTING

main16381-54011i2L..LH51,61198708-198908

main16381-54040i2L..LH56,66198708-198908

main16381-71010i3Y,4Y..YH5#,6#198708-198908

16400RADIATOR ASSY

main16400-54220i2L..LH51,61..4HC198708-198908

main16400-54280i2L..LH51,61..5H198708-198908

main16400-54550i2L..LH56,66198708-198908

main16400-72040i3Y..YH51,61..MTM198708-198908

main16400-72060i3Y..YH51,61..4HC198708-198908

main16400-73270i4Y..YH56,66198708-198908

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16400RBUSHING(FOR RADIATOR)

main90540-10019×2i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16400SCOLLAR(FOR RADIATOR)

main90440-11042×2i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16401CAP SUB-ASSY, RADIATOR

main16401-71010i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16470TANK ASSY, RADIATOR RESERVE

main16470-54130i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33493i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

L=1000(*H,L=720)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16471CAP SUB-ASSY, RESERVE TANK

main16405-54050i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16472HOSE, BREATHER

main90445-12078i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

L=600

16571HOSE, RADIATOR, INLET

main16571-54120i2L..LH51,61198708-198908

main16571-54160i2L..LH56,66198708-198908

main16571-72020i3Y..YH51,61198708-198908

main16571-73070i4Y..YH56,66198708-198908

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001×2i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16572HOSE, RADIATOR, OUTLET

main16572-54090i2L..LH51,61198708-198908

WATER PUMP SIDE

main16572-54140i2L..LH56,66198708-198908

WATER PUMP SIDE

main16572-72020i3Y..YH51,61198708-198908

WATER PUMP SIDE

main16572-73060i4Y..YH56,66198708-198908

WATER PUMP SIDE

main16573-54030i2L..LH51,61; 3Y..YH51,61198708-198908

RADIATOR SIDE

main16573-54050i2L..LH56,66; 4Y..YH56,66198708-198908

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036×2i2L..LH5#,6#; 3Y,4Y..YH5#,6#198708-198908

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-47036i2L..LH5#,6#198708-198908

PIPE SIDE

main96111-10440×2i3Y,4Y..YH5#,6#198708-198908

main96111-10500i2L..LH5#,6#198708-198908

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-54060i2L..LH5#,6#198708-198908

main16577-72010i3Y,4Y..YH5#,6#198708-198908

16701SHROUD SUB-ASSY, FAN

main16701-54100i2L..LH51,61198708-198908

main16701-54140i2L..LH56,66198708-198908

main16701-72010i3Y..YH51,61198708-198908

main16701-73040i4Y..YH56,66198708-198908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908108

main90119-08108

9017906100

main90179-06100

9092901194

main90929-01194

9161160820

main91611-60820

9161160840

main91611-60840

9163140616

main91631-40616

9165140814

main91651-40814

9165140816

main91651-40816

91659F1222

main91659-F1222

9166140835

main91661-40835

9166140840

main91661-40840

43 parts on this diagram · 2 diagrams in section
