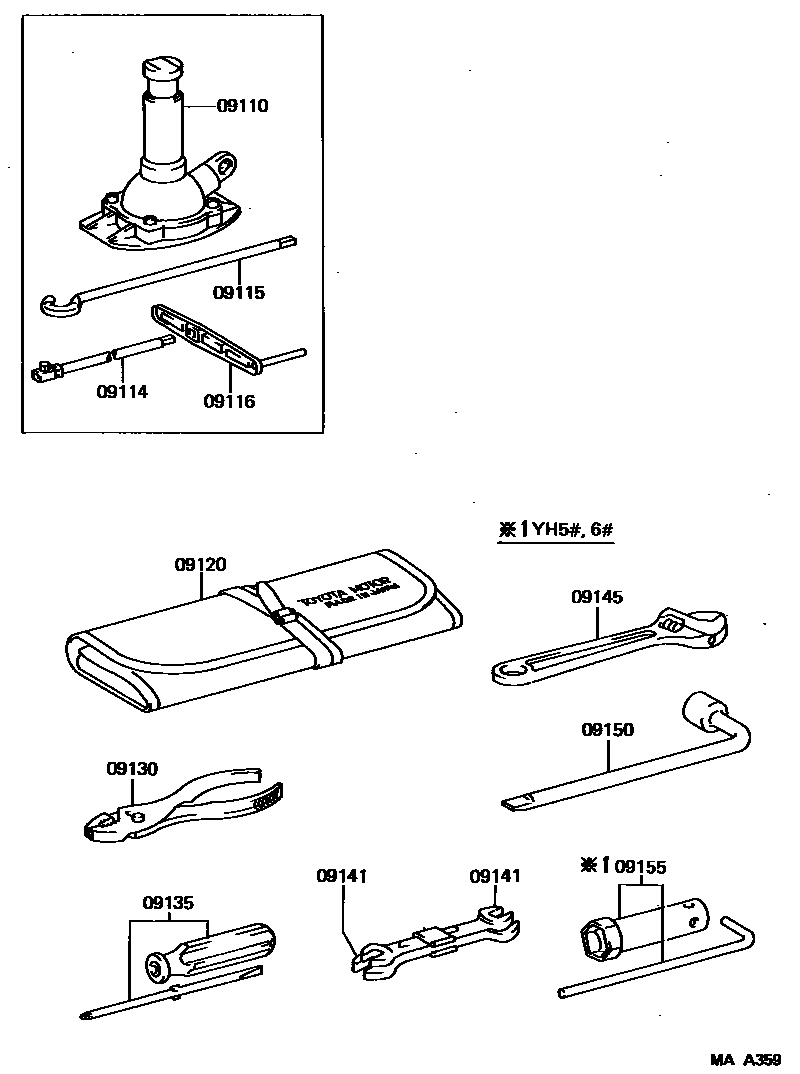

STANDARD TOOL

09110JACK ASSY

main09111-26050iLH56,66,YH56,66198708-198908

main09111-26070iLH51,61,YH51,61198708-198908

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iLH5#,6#,YH5#,6#198708-198908

main09114-60050×2iYH51..U198709-198908

HIGH GRADE PACKAGE

09115ROD SUB-ASSY, JACK HANDLE

main09115-25030iLH51,61,YH51,61198708-198908

main09115-60020iLH56,66,YH56,66198708-198908

main09115-60030iYH51..U198709-198908

HIGH GRADE PACKAGE

09116LEVER, JACK HANDLE

main09116-35041iLH5#,6#,YH5#,6#198708-198908

09120BAG, TOOL

main09120-26021iLH5#,6#,YH5#,6#198708-198908

09130PLIERS

main99913-11500iLH5#,6#,YH5#,6#198708-198908

09135DRIVER, SCREW

main99915-10700iLH5#,6#,YH5#,6#198708-198908

09141SPANNER

main99914-10810iLH5#,6#,YH5#,6#198708-198908

8 X 10

main99914-11214iLH5#,6#,YH5#,6#198708-198908

12 X 14

09145WRENCH, MONKEY

main99911-11200iLH5#,6#,YH5#,6#198708-198908

09150WRENCH, HUB NUT BOX

main09150-35020iLH5#,6#,YH5#,6#198708-198908

09155WRENCH, SPARK PLUG

main09155-41010iYH5#,6#198708-198908

11 parts on this diagram · 1 diagram in section
