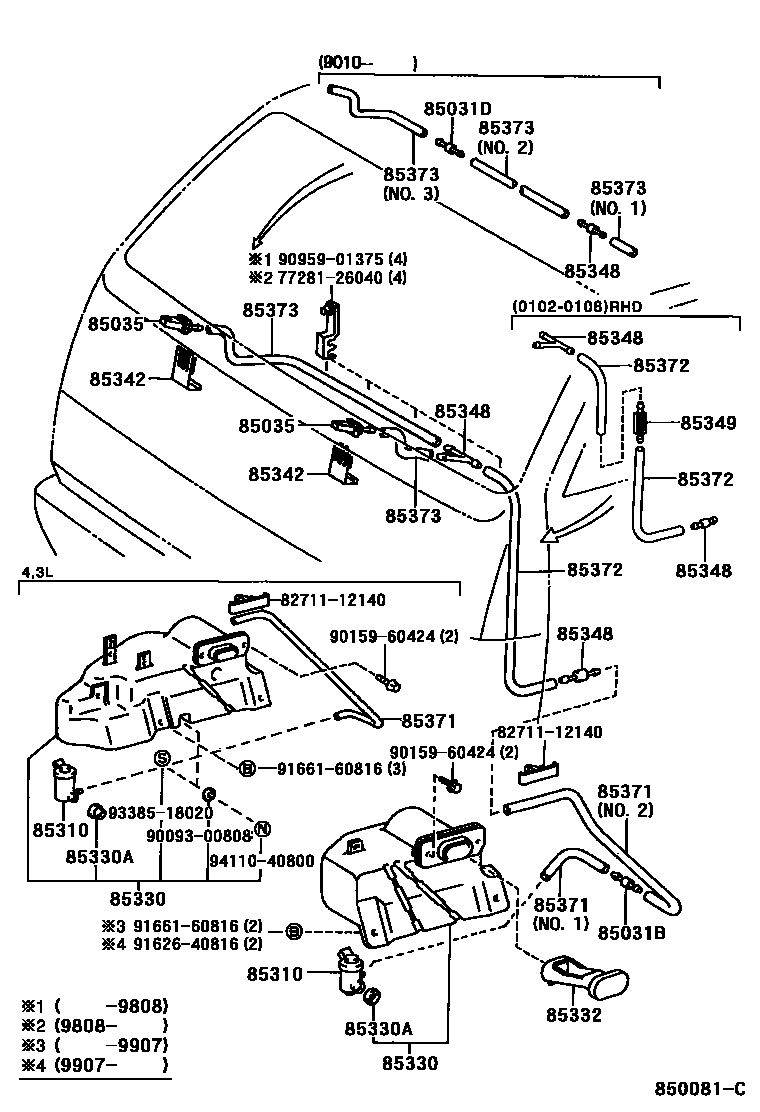

WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-30010iRZH112..4D..06S198908-200208

85031DVALVE SUB-ASSY, WASHER NO.2

main85031-12250iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199010-200208

85035NOZZLE SUB-ASSY, WASHER

main85035-95J01iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD198908-200208

RH

main85035-95J05iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD198908-200208

LH

main85035-95J06iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

RH

main85035-95J07iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

LH

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-95J03iLH10#,11#,125,RZH10#,11#,125198908-199208

main85330-35050iRZH112..4D..06S199208-200208

85330JAR ASSY, WINDSHIELD WASHER

main85315-26020iLH104,114,RZH104,114..LHD..SRF199008-199508

JAR 4.3L

main85330-95J06iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

JAR 2.5L

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

85332CAP, WINDSHIELD WASHER JAR

main85332-95J00iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

85342HOLDER, WASHER NOZZLE

main85342-95J02iRZH112..4D..06S198908-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

3-WAY

main85349-89122iLH10#,11#,125,RZH10#,11#,125198908-200208

2-WAY

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150iLH162..4FC;RZH104..RHD;LH172..06S..GL200102-200501

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iLH104,112,114,RZH104,112,114..CIS199008-199508

L=1450(*H,L=510)

main90099-33299iRZH112..4D..06S198908-200208

L=1000(*H,L=350),NO.2

main90446-06013iRZH112..4D..06S198908-200208

L=130,NO.1

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-59302iRZH103..03S..GEN200102-200208

L=500

main90446-06006iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD198908-200508

L=2000(*H,L=1040)

main90446-06013iLH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD199808-200102

L=1000(*H,L=910)

main90446-06013iRZH103..03S..GEN200102-200208

L=1000(*H,L=380)

main90446-06013iLH10#,11#,125,RZH102,103,104,11#,125,135,153..RHD198908-199808

L=1000(*H,L=880)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85343-95J00iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD198908-200508

L=180,LH

main85343-95J01iLH102,104,112,114,RZH102,104,112,114..LHD198908-199010

L=720,RH

sub90446-06013

main85343-95J02iLH10#,11#,125,RZH10#,11#,125..RHD198908-199010

L=720,RH

sub90446-06013

main85374-26050iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907-200208

L=200

main85374-26050iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199010-199508

L=200,RH,NO.3

main85374-26060iRZH112..4D..06S199907-200208

L=460

main85374-26060iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH102,103,104,11#,125,RZH102,103,104,114,115,125,135,153..RHD199010

L=460,RH,NO.2

main85374-26070iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199010-200508

L=460,RH,NO.2

main90099-33097iRZH112..4D..06S199907-200208

L=300(*H,L=100),RH,NO.3

sub90099-33418

main90099-33299iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907-200208

*H,L=40

main90099-33299iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199010

*H,L=40,RH,NO.1

main90099-33299iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199010

*H,L=180,LH

main90099-33299iLH10#,11#,154,164,166,17#,RZH102,104,105,11#,155..LHD200008-200508

L=1000(*H,L=180)

main90099-33299iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD199907

*H,L=180

main90099-33322iLH10#,11#,125,RZH10#,11#,125..RHD198908-199010

L=180,LH

sub90446-06013

main90099-33418iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199508

L=300(*H,L=100),RH,NO.3

main90446-06013iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199907-200508

L=1000(*H,L=200)

main90446-06013iRZH112..4D..06S200008-200208

L=1000(*H,L=560)

main90446-06013iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199608-200008

L=1000(*H,L=200),RH,NO.3

7728126040BRACKET, FUEL MAIN TUBE, NO.1

main77281-26040

8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12140

9009300808

main90093-00808

9015960424

main90159-60424

9095901375

main90959-01375

9162640816

main91626-40816

9166160816

main91661-60816

9338518020

main93385-18020

9411040800

main94110-40800

22 parts on this diagram · 1 diagram in section
