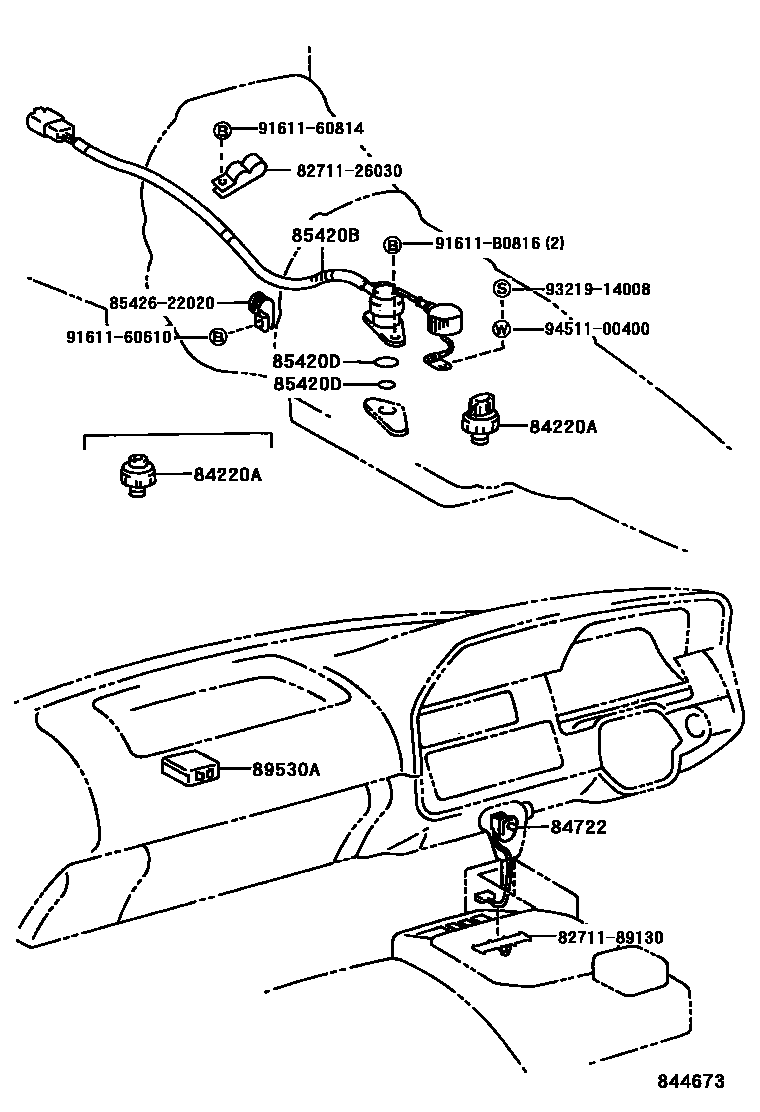

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main83531-12010iLH162..4FC199907-200108

main84220-30050iLH103,113..4FC198908-199308

84722SWITCH, TRANSMISSION CONTROL

main84722-20060-23iLH103,113,RZH103,113,114..4FC199002-199308

GRAY,TRIM1#

main84722-26050-03iLH103,113,RZH103,113,114..4FC198908-199002

GRAY,TRIM1#

main84722-26100-B0iLH103,113,125,RZH103,113,125..4FC199308-199907

BLUISH GRAY,TRIM1#

main84722-26100-B1iLH103,113,125..4FC199907-200008

SHADOW GRAY,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main85420-30050iRZH103,113,125..4FC199808-199907

NO.1

main85420-30070iRZH103,113,125..4FC199808-199907

NO.2

85420BSOLENOID ASSY, TRANSMISSION

main85420-26020iLH103,113..4FC198908-199308

main85420-26030iRZH103,113,114..4FC198908-199308

main85420-30160iLH103,113,125,RZH103,113..4FC..(CBR,DSL)199308-199907

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-11001iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-199907

INNER

main90301-23001iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-199907

OUTER

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-26090iLH103,113..4FC198908-199308

main89530-26100iLH103,113,125..4FC199308-199907

8271126030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26030

8271189130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89130

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

9161160610

main91611-60610

9161160814

main91611-60814

91611B0816

main91611-B0816

9321914008

main93219-14008

9451100400

main94511-00400

14 parts on this diagram · 3 diagrams in section
