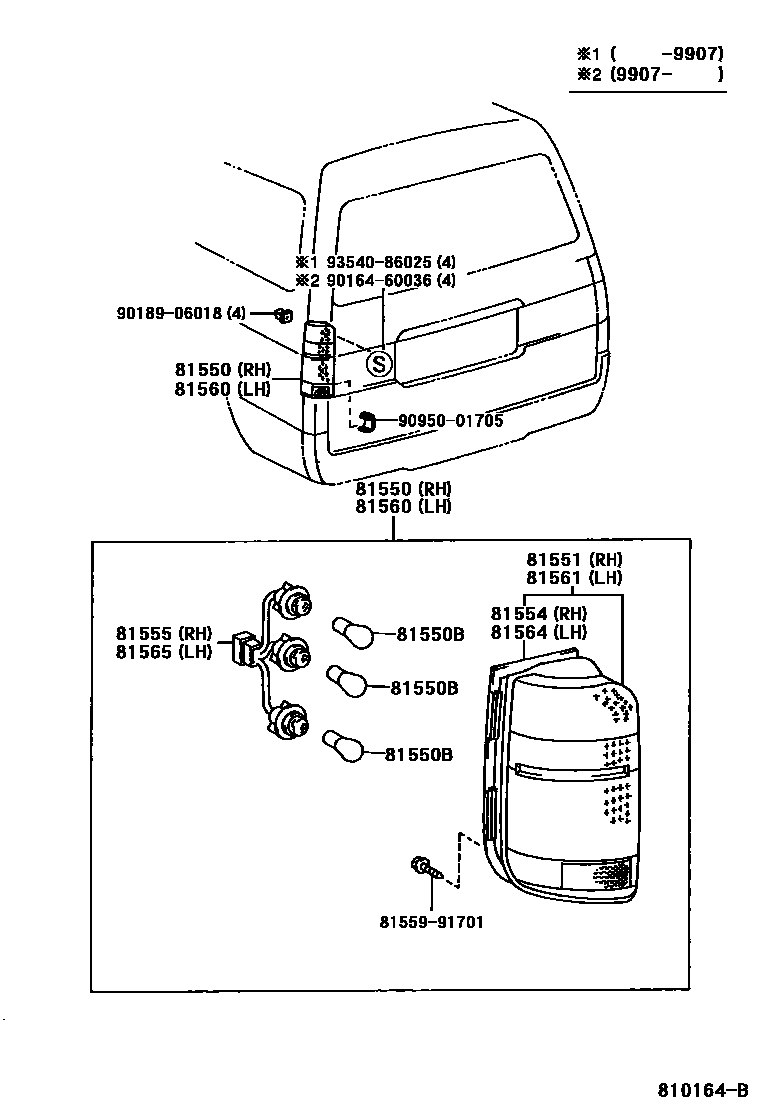

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-26080iRZH115..GL;LH103,105,113,115,125,166,176,RZH103,105,113,115,125..ARL,CIS199108-199907

main81550-26080iRZH114..15S..GL;RZH112..LHD..03S;LH102,104,11#,RZH102,103..LHD..(03S,06S,09S,12S,15S)..GEN..(CBR,DSL)199808-200008

ALGERIA SPEC OR NIGERIA SPEC

main81550-26080iLH103,113,125,RZH103,104,113,114,125..ARL,CIS199508-199907

CHINA SPEC

main81550-26190iRZH135,153199611-199710

main81550-26280iRZH135,153199710-199907

main81550-26290iRZH105..STD..GEN;RZH113..5D..03S..GEN199709-200501

SINGAPORE SPEC

main81550-26330iLH154,RZH135,153..03S,10S,12S199907-200501

main81550-95J10iLH125,RZH125199808-199907

NEW ZEALAND SPEC

main81550-95J10iLH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,125,RZH10#,112,114,115..GCC,GEN198908-200008

main81550-95J13iLH103,113,125,RZH103,113,125..ARL198908-199108

sub81550-26080

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059iLH154,RZH135,153..03S,10S,12S199907-200501

12V 16W

main90981-13043iRZH135,153199611-200501

12V 21W

main90981-13044iLH154,RZH135,153..03S,10S,12S199611-200501

12V 21/5W

main99132-11210iLH103..5D;RZH102,112..RHD;RZH103..STD..EFI;LH113,115,RZH104,114..RHD..SG199709-200501

12V 21W,SINGAPORE SPEC

main99132-11210iRZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,11198908-200602

12V 21W

main99132-11270iLH103..5D;RZH102,112..RHD;RZH103..STD..EFI;LH113,115,RZH104,114..RHD..SG199709-200408

12V 27W,SINGAPORE SPEC

main99132-11270iLH172,RZH113..RHD..5D..03S;LH162,174,RZH105..RHD..SRF..(03S,12S,15S)..GEN199907-200501

12V 27W

main99132-21210iLH172..RHD;LH172..GCC;LH174..HRF;RZH113..LHD;RZH113..RHD..SG;LH162,RZH103..SG;RZH113..RHD..4D..03S;LH174,RZH112..LHD..SG;LH162,RZH103,112..4D..03S;LH154,172,RZH105.198908-200602

12V 21/5W

main99132-21270iLH103..5D..03S;LH115,RZH102,103,104,114..RHD..(03S,12S,15S)..STD..GEN199709-200408

12V 27/8W,SINGAPORE SPEC

main99132-21270iLH172,RZH113..RHD..5D..03S;LH162,174,RZH105..RHD..SRF..(03S,12S,15S)..GEN199907-200501

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-26080iRZH114..LHD..15S;LH102,104,112,114,115,RZH102,104,112,115..LHD..STD..GEN..(CBR,DSL)199808-200501

ALGERIA SPEC OR NIGERIA SPEC

main81551-26080iLH112,RZH113..DX;LH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199108-200208

main81551-26080iRZH103..4D;RZH104,112,114..LHD..SG;LH103,104,113,114,125,RZH113,125..ARL,CIS199508-200108

CHINA SPEC

main81551-26190iRZH135,153199611-199710

main81551-26280iRZH135,153199710-199907

main81551-26330iLH154,RZH135,153..03S,10S,12S199907-200501

main81551-95J10iLH125199808-200501

NEW ZEALAND SPEC

main81551-95J10iRZH112..4D..06S198908-200602

main81551-95J10iRZH115..12S200208-200508

VIETNAM SPEC

main81551-95J13iLH103,113,125,RZH103,113,125..ARL198908-199108

sub81551-26080

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-95J10iLH172..RHD;LH172..GCC;LH174..HRF;RZH113..LHD;RZH113..RHD..SG;LH162,RZH103..SG;RZH113..RHD..4D..03S;LH174,RZH112..LHD..SG;LH162,RZH103,112..4D..03S;LH154,172,RZH105.198908-200602

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-26190iRZH135,153199611-199907

main81555-26290iLH103..5D..03S;LH115,RZH102,103,104,114..RHD..(03S,12S,15S)..STD..GEN199711-200501

SINGAPORE SPEC

main81555-26330iLH154,RZH135,153..03S,10S,12S199907-200501

main81555-95J10iRZH115..STD..GEN198908-200602

main81555-95J10iLH125,184,RZH125..ARL199808-200501

NEW ZEALAND SPEC

main81555-95J10iRZH115..12S200208-200508

VIETNAM SPEC

main81555-95J14iLH103,113,125,RZH103,113,125..ARL199508-199608

main81565-95J14iRZH114..LHD..15S;RZH115..STD..GEN;RZH103,104,105,112..LHD..SG..GEN199508-199907

CHINA SPEC

main81565-95J14iLH112,RZH113..DX;LH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS198908-200208

main81565-95J14iRZH114..LHD..15S;RZH115..STD..GEN;RZH103,104,105,112..LHD..SG..GEN199808-200501

ALGERIA SPEC OR NIGERIA SPEC

81560LAMP ASSY, REAR COMBINATION, LH

main81560-26080iLH104,105,11#,166,176,RZH104,105,112,114,115..CIS199411-199907

main81560-26090iLH112,RZH113..DX;LH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS199108-199907

main81560-26090iRZH114..LHD..15S;RZH115..STD..GEN;RZH103,104,105,112..LHD..SG..GEN199508-199907

CHINA SPEC

main81560-26090iRZH112..LHD..03S;LH102,104,11#,RZH102..LHD..STD..GEN199808-200008

ALGERIA SPEC OR NIGERIA SPEC

main81560-26190iRZH135,153199611-199710

main81560-26280iRZH135,153199710-199907

main81560-26290iLH174..RHD..SRF;LH162,172,RZH103..RHD..5D..03S199709-200501

SINGAPORE SPEC

main81560-26330iLH154,RZH135,153..03S,10S,12S199907-200501

main81560-95J10iLH172..RHD;RZH115..STD..CBR;RZH113..STD..(GCC,GEN);LH174,RZH103..SG..(03S,06S,10S);LH102,103,104,11#,184,RZH10#,112,114..(GCC,GEN)..(CBR,DSL)198908-200008

main81560-95J10iLH125,RZH125199808-199907

NEW ZEALAND SPEC

main81560-95J14iLH103,113,125,RZH103,113,125..ARL198908-199108

sub81560-26090

81561LENS, REAR COMBINATION LAMP, LH

main81561-26080iRZH103,115,155..GL,SGL;LH105,113,115,164,166,174,176,RZH105,115..STD..CIS199907-200501

CHINA SPEC

main81561-26080iLH104,105,11#,166,176,RZH104,105,112,114,115..CIS199411-199907

main81561-26080iRZH104..GL;RZH114..15S..GL199907-200108

NEW ZEALAND SPEC

main81561-26080iLH172..LHD..5D..GEN200108-200208

TURKEY SPEC

main81561-26090iRZH114..LHD..15S;RZH115..STD..GEN;RZH103,104,105,112..LHD..SG..GEN199508-199907

CHINA SPEC

main81561-26090iLH184..ARL199808-200501

ALGERIA SPEC OR NIGERIA SPEC

main81561-26090iLH112,RZH113,115..LHD..(DX,GL);LH103,113,125,RZH103,113,125..ARL199108-199907

main81561-26190iRZH135,153199611-199710

main81561-26280iRZH135,153199710-199907

main81561-26330iLH154,RZH135,153..03S,10S,12S199907-200501

main81561-95J10iRZH112..5D;LH172..RHD..GEN;LH172,RZH115..GCC..(DSL,EFI);RZH105,112..(03S,12S)..STD..(GCC,GEN);LH154,172,RZH115..LHD..4D..(03S,11S,15S)..(CBR,DSL);LH102,103,104,11#,198908-200602

main81561-95J10iLH125,RZH125199808-200501

NEW ZEALAND SPEC

main81561-95J10iRZH115..12S200208-200508

VIETNAM SPEC

main81561-95J14iLH103,113,125,RZH103,113,125..ARL198908-199108

sub81561-26090

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-95J10iLH103,113,162,172,RZH103,113..ARL199907-200501

main81564-95J10iRZH103..03S..STD;RZH114..LHD..15S;RZH115..GEN..CBR;LH103,113,125,RZH105,113,115,125..STD..(ARL,CIS);LH102,104,105,11#,166,176,RZH10#,112..LHD..SRF..(03S,06S,09S,12S198908-200602

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-26190iRZH135,153199611-199907

main81555-26290iRZH105..STD..GEN;RZH113..5D..03S..GEN199711-200501

SINGAPORE SPEC

main81555-26330iLH154,RZH135,153..03S,10S,12S199907-200501

main81555-95J10iRZH105..GL;LH162,174..RHD..SRF..(03S,15S)..GEN198908-200602

main81555-95J10iRZH115..12S200208-200508

VIETNAM SPEC

main81555-95J10iLH125,RZH125199808-200501

NEW ZEALAND SPEC

main81555-95J14iRZH103,115,155..GL,SGL;LH105,113,115,164,166,174,176,RZH105,115..STD..CIS199907-200501

CHINA SPEC

main81555-95J14iLH172..LHD..5D..GEN200108-200208

TURKEY SPEC

main81555-95J14iLH103,104,113,114,125,RZH103,104,113,114,125..ARL,CIS199411-199907

main81555-95J14iRZH104..GL;RZH114..15S..GL199907-200108

NEW ZEALAND SPEC

main81565-95J14iLH174..LHD..GEN199907-200501

ALGERIA SPEC OR NIGERIA SPEC

main81565-95J14iLH112,RZH113..DX;LH103,104,112,113,114,125,RZH103,104,112,113,114,125..ARL,CIS198908-199907

main81565-95J14iRZH103,104,112,114..LHD..SG..GEN199508-199907

CHINA SPEC

main81565-95J14iRZH112..LHD..03S;LH102,104,11#,RZH102..LHD..STD..GEN199808-200008

NIGERIA SPEC OR ALGERIA SPEC

8155991701MOULDING, REAR COMBINATION LAMP, RH

main81559-91701

9016460036

main90164-60036

9018906018

main90189-06018

9095001705

main90950-01705

9354086025

main93540-86025

14 parts on this diagram · 2 diagrams in section
