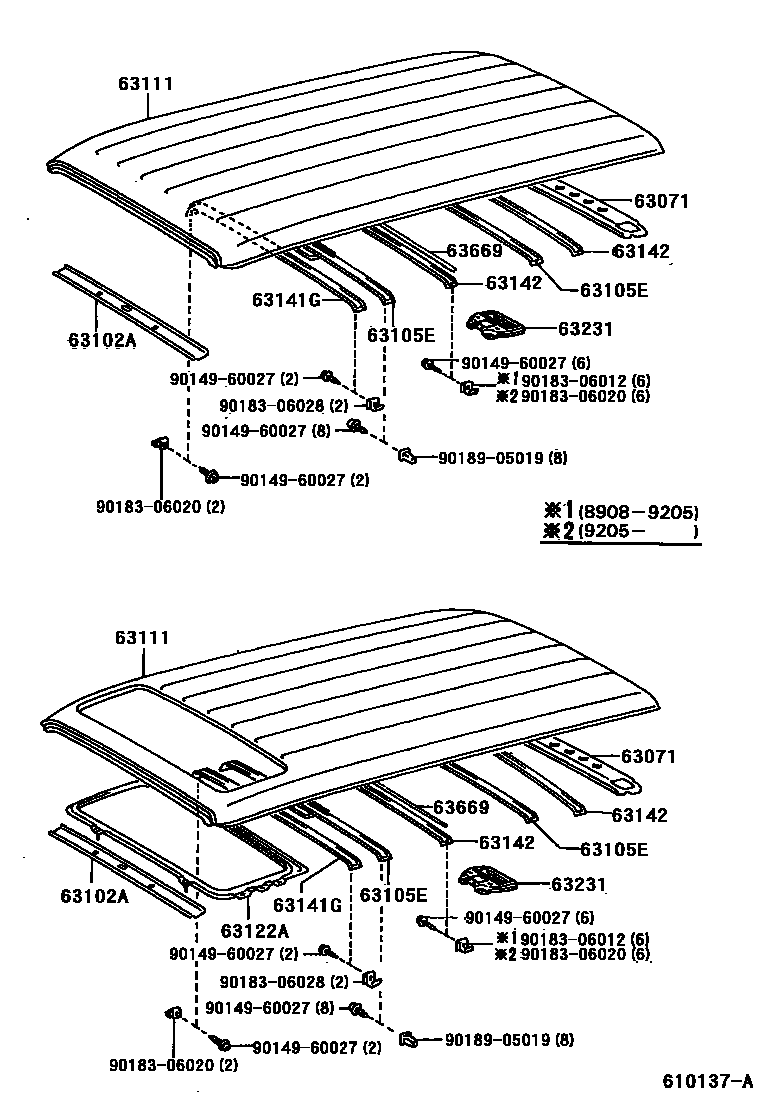

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-26030iLH172..03S..GL;RZH105,115..STD..CIS;RZH115..SRF..15S..CBR;RZH113..4D..STD..GEN..EFI;RZH105,113..(GCC,GEN)..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,114..SRF..(03S,06S,09S,15S);LH10#,11#,125,166,176,184,RZH103,104,112..(SMRF,SRF)..(03S,06S,12S,15S)..(CIS,GCC,GEN)199608-200208

main63071-26040iLH174,RZH102,103,114,115,135,153..(03S,09S,10S,12S)..(GL,SGL)199907-200508

main63071-26060iRZH113..LHD..EFI199508-199907

W(DOUBLE SWING BACK DOOR)

main63071-26160iLH103,113,162,172,RZH103,113..ARL; LH172..5D..06S;LH103,113,162,RZH103,113..RHD..06S199907-200501

NEW ZEALAND SPEC

main63071-26210iLH154,RZH155200008-200501

main63071-95J05iLH125..ARL;LH112,114,RZH114,125..HRF198908-199411

main63071-95J07iLH10#,11#,RZH10#,11#..SRF..STD198908-199108

main63071-95J08iLH113,RZH113..03S199001-199108

W(DOUBLE SWING BACK DOOR)

main63071-95J09iRZH103..GL198908-199108

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95J06iRZH103..03S..GEN200208

main63102-95J07iRZH114,115,135,15#..03S,10S,11S,12S;LH125,154,174,184,RZH102,103,125..09S,10S,11S,14S199907-200508

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-26010×2iRZH135199907-200501

main63105-26900iRZH103..03S..GEN200208

main63105-26901iLH174,RZH114,115..SRF..15S;LH104,105,114,115,164,166,176,RZH10#,113..08S,09S,10S,12S,15S199907-200602

main63105-26902iLH174,RZH114,115,153..SRF..(03S,10S,12S)199907-200508

main63105-26903iLH184..SMRF199808-199907

main63105-26904iLH125..SMRF199610-199808

main63105-26905iLH154,184,RZH155..SMRF,SRF199907-200501

main63105-95J09iLH112,114,RZH114..HRF198908-199411

main63105-95J10iLH113,172..HRF199907-200501

main63105-95J12iLH125,174,184,RZH112,114,115,125..HRF199907-200602

main63105-95J13-08iLH102,103,112,113,RZH102,103,112,113..SRF..STD198908-199308

IVORY,TRIM1#

main63105-95J16-08iLH104,105,114,115,RZH104,114..SRF198908-199308

IVORY,TRIM1#

main63105-95J17-08iRZH103..GL198908-199108

IVORY,TRIM1#

63111PANEL, ROOF

main63111-26170iLH125,184,RZH135..SMRF199610-199907

main63111-26360iRZH104..LHD..STD; RZH105..GCC199901-199907

MIDDLE EAST SPEC & W/O(GULF SPEC)

main63111-26370iLH115,174,RZH112,114..LHD..SRF..STD..GEN199907-200501

MIDDLE EAST SPEC & W/O(GULF SPEC)

main63111-95J14iLH10#,RZH102,104;RZH103..STD..ARL; RZH103..SG198908-199308

W(MOON ROOF); W(SUN ROOF)

main63111-95J15iLH11#,RZH11#..SRF198908-199308

W(SUN ROOF)

main63111-95J16iLH10#,166,RZH10#198908-199901

main63111-95J17iLH11#,17#,RZH11#,153..SRF..(ARL,CIS,GEN)199904-199907

main63111-95J19iLH112,113,114,RZH114,115..HRF198908-199907

main63111-95J20iLH125,RZH125..ARL198908-199411

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-95J01iLH10#,11#,RZH10#,11#..SRF198908-199308

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-26030×2iLH174,RZH114,115..10S,12S; RZH102,153..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115..SRF..4D..SG199808-199907

W(OVERHEAD DUAL AIR CONDITIONER)

main63141-26900iLH103..4D..GEN;RZH102,103..03S..GEN; RZH112..4D..06S199907-200208

main63141-95J20-08×2iLH104,105,114,115,RZH103,104,114..SRF..4D..SG198908-199308

W(OVERHEAD DUAL AIR CONDITIONER),IVORY,TRIM1#

main63141-95J22-08iLH10#,11#,RZH10#,11#..SRF..STD198908-199308

IVORY,TRIM1#

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-26900×3iLH125,RZH135..SMRF199610-199808

main63142-95J03-08×2iLH10#,11#,RZH10#,11#..SRF198908-199308

IVORY,TRIM1#

63231BRACKET, ROOM LAMP

main63231-26080iRZH155..CIS200008-200408

main63231-95J06iRZH103..4FC..GL198908-199108

63669CUSHION, ROOF PROTECTOR

main63669-95J00×7iLH102,103,112,113,RZH102,103,112,113..SRF..03S198908-199308

9014960027

main90149-60027

9018306012

main90183-06012

9018306020

main90183-06020

9018306028

main90183-06028

9018905019

main90189-05019

14 parts on this diagram · 4 diagrams in section
