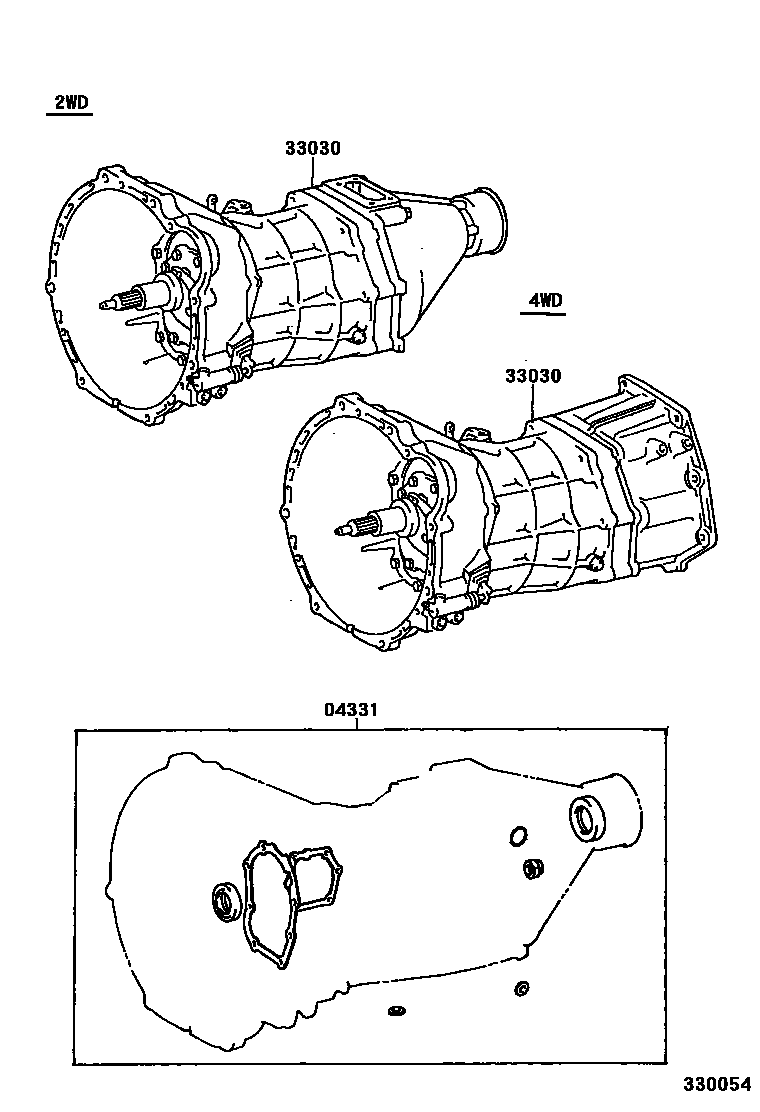

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G52,G55 0002 1G52,G55

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-28010iLH114,RZH114200501

main04331-28130iLH17#,RZH112200501

TAP:REFER TO ILLUSTRATION

main04331-35170iLH172..HRF;RZH112..SRF;LH172..03S..GL;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174..06S,10S,15S;LH114,172,RZH114..LHD..4D;LH10#,112,113,115,125,154,16#,176,18198908-200508

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0W370iRZH112..4D..SG199907

G55

main33030-0W380iLH174..12S199907-200208

G55

main33030-0W380iLH172..RHD..SRF..4D..03S..STD..GEN200208

G55,MALAYSIA SPEC & W(DRIVEN GEAR N=17):TAP

main33030-0W630iRZH113..LHD..EFI;RZH10#,11#,125..5F..CBR199805-199806

TAP:REFER TO ILLUSTRATION

main33030-0W631iRZH114..15S;RZH113..LHD..03S..GEN;RZH115..(CIS,GCC)..EFI;RZH105,113,155..CIS,GCC;RZH102,104,112,115..SRF..CBR199806-200308

G55,TAP:REFER TO ILLUSTRATION

main33030-0W640iLH10#,11#,125..CIS,GEN199805-199806

TAP:REFER TO ILLUSTRATION

main33030-0W641iLH172,184..03S,15S199808-200501

G55,W(DRIVEN GEAR N=17):TAP

main33030-0W641iLH172..HRF;LH172..LHD..4D;LH172..5D..03S..GEN;LH10#,11#,154,162,164..5F..(CIS,GEN);LH172,174..(06S,10S,15S)..(CIS,GEN)..DSL199806-200008

G55,TAP:REFER TO ILLUSTRATION

main33030-0W730iLH172,184..GL..DSL200109-200501

G55,W(DRIVEN GEAR N=20):TAP

main33030-0W740iRZH103,113,125..5F..ARL200308-200412

G55,TAP:REFER TO ILLUSTRATION

main33030-26561iRZH102,104,112,114..4F198908-199108

main33030-26581iLH166,176199907-200408

G52

main33030-26581iLH166,176199808-199907

main33030-26631iRZH112..LHD;RZH102..LHD..03S198908-200008

W(DRIVEN GEAR N=18,19,20)

main33030-26631iRZH112..LHD..STD;RZH103,113..06S..GEN..CBR199608-199808

W(DRIVEN GEAR N=18,19,20),TOYOTA

main33030-26631iRZH103..RHD..GEN;RZH113..RHD..4D..STD..GEN;RZH102,135,153..4D..(03S,06S,12S)199611-200308

main33030-26631iRZH112..LHD199907-200501

G55,TOYOTA:REFER TO ILLUSTRATION, W(6.00-14-8 W/TUBE TIRE)

main33030-26631iRZH103,113,125..5F..ARL199907-200508

G55

main33030-26641iRZH112..5F..GEN;RZH102..LHD..06S..5F;RZH102,104,114..(03S,12S,15S)..5F..GEN198908-199608

W(DRIVEN GEAR N=21,22)

main33030-26671iLH102,104,112,114198908-199308

W(195/70R15C TIRE)

main33030-26671iLH104,112,114..CIS199308-199508

main33030-26681iLH102,104,112,114198908-199308

W(185R14-8 TIRE)

main33030-26691iLH103..5D;LH113..SRF..5F;LH103,115,125..5F..(ARL,GCC)199907-200008

TOYOTA:REFER TO ILLUSTRATION

main33030-26691iLH103,105,113,115,125..5F198908-199411

W(DRIVEN GEAR N=18,19,20)

main33030-26691iLH115..GCC;LH102,103,105,112,113,125..5F..(GL,STD)..(ARL,GCC,GEN)199411-199907

6.00-14 TIRE

main33030-26691iLH103..4D..GEN199608-200008

W(DRIVEN GEAR N=18,19,20),TOYOTA

main33030-26691iLH103..4D..GEN199608-199808

6.00-14 TIRE,TOYOTA

main33030-26691iLH172..SRF..4D..03S..GEN199907-200501

G55,6.00-14 TIRE

main33030-26691iLH172..HRF;LH172..RHD..5D;LH162,184..5F..STD;LH172..4D..06S..STD..DSL;LH172,174..5F..(ARL,GCC)200008-200501

G55

main33030-26691iLH184..GEN200109-200501

G55,W(DRIVEN GEAR N=17):TOYOTA

main33030-26701iLH103,105,113,115..GEN198908-199411

W(DRIVEN GEAR N=21,22)

main33030-26701iLH113,115..RHD..SG;LH102,103,104,112,114..(GL,STD)..GEN199411-199608

W(DRIVEN GEAR N=18,19,20)

main33030-2F010iLH112..DX199405-199508

main33030-2F150iRZH113..LHD..EFI;RZH102,104,112,114,125..5F;RZH103,105,113,115..5F..CBR;RZH103,105,113,115..5F..STD..(ARL,CIS)..EFI199608-200308

G55,TOYOTA:REFER TO ILLUSTRATION

main33030-2F160iLH174..GL;LH172..RHD;LH10#,11#,125..CIS,GEN199608-200008

TOYOTA:REFER TO ILLUSTRATION

main33030-2F160iLH184199808-199907

W(DRIVEN GEAR N=20):TOYOTA

main33030-2F160iLH172..RHD..SRF..4D..03S..STD..GEN199907-200501

G55,W(DRIVEN GEAR N=20):TOYOTA

main33030-2F160iLH172..RHD..SRF..4D..03S..STD..GEN199907-200501

G55,TOYOTA:REFER TO ILLUSTRATION

main33030-2F160iLH172..HRF;LH172..RHD..5D;LH162..06S..5F200008-200501

G55,W(DRIVEN GEAR N=19):TOYOTA

main33030-2F260iLH172..DEFI200108-200501

G56

2 parts on this diagram · 2 diagrams in section
