VENTURI

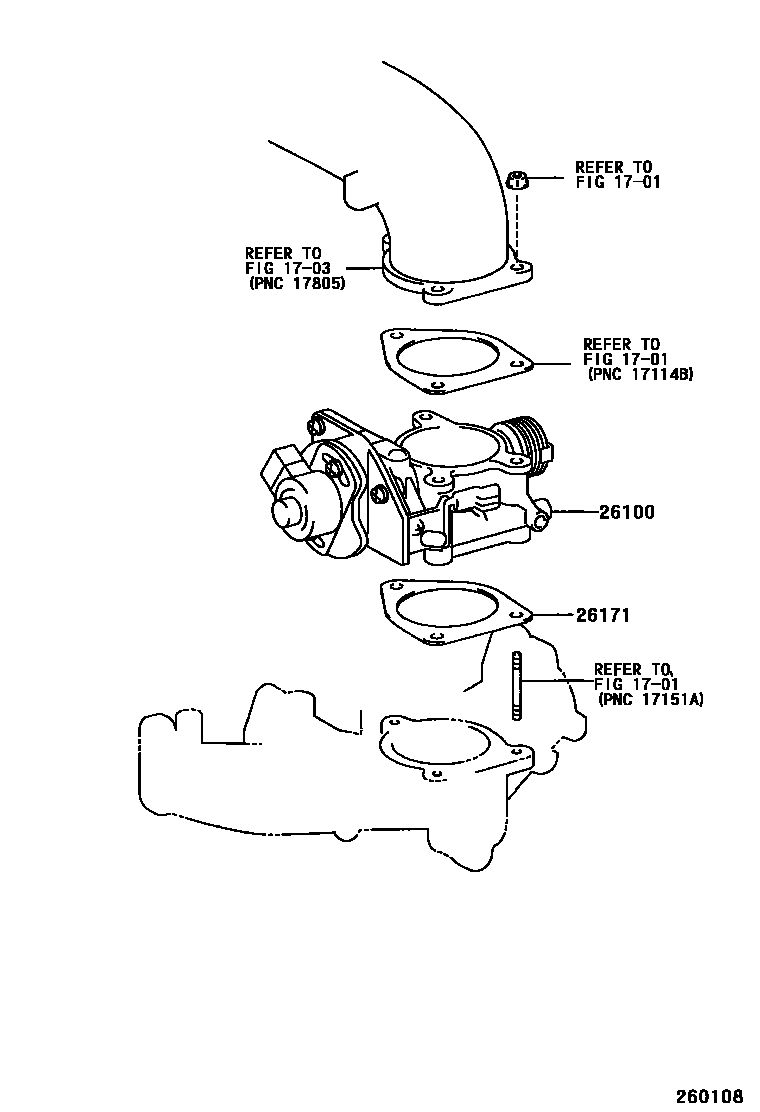

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

26100VENTURI ASSY

main26100-54290i200108-200501

26171GASKET, VENTURI

main17116-54030i200108-200501

4 parts on this diagram · 1 diagram in section
