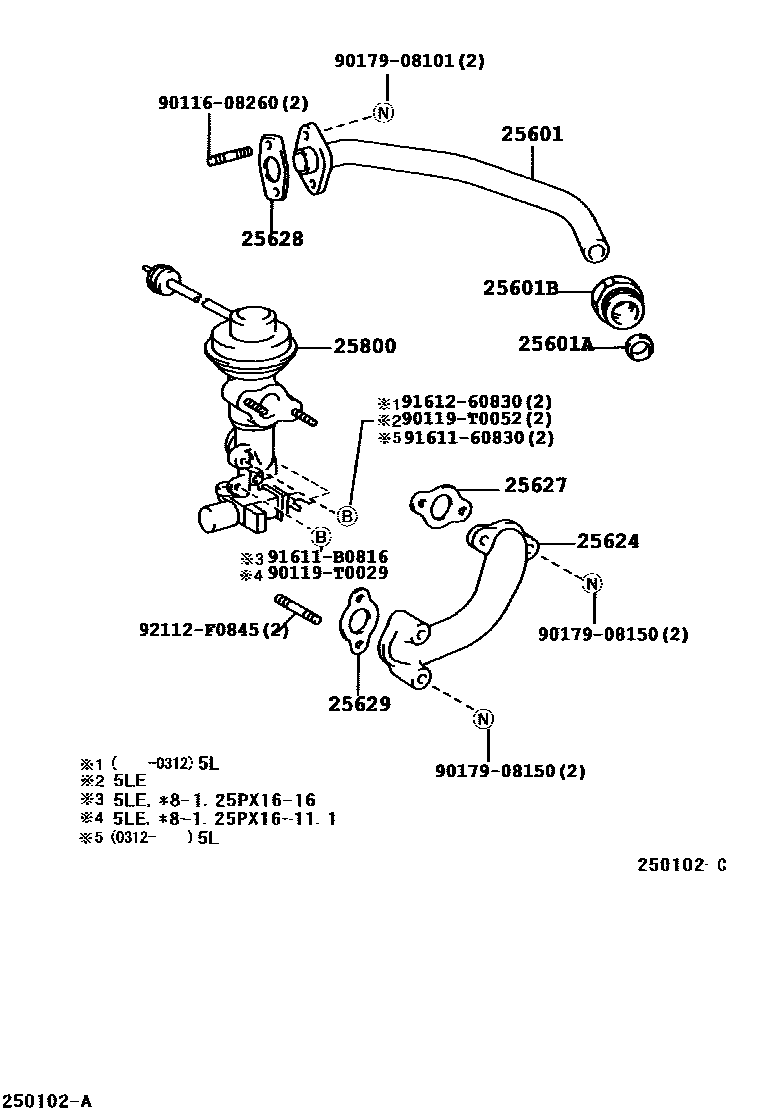

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54061i5L..LH172,174..LHD..4D..GEN199808-200501

main25611-75010i2RZE..RZH113199405-199508

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i5L..LH172,184199808-200501

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i5L..LH172,184199808-200501

25624ADAPTER, EGR VALVE

main25624-54040i5L..LH172,184199808-200501

25627GASKET, EGR VALVE

main25627-54011i5L..LH172,184199808-200501

main25627-75010i2RZE..RZH113199405-199508

25628GASKET, EGR INLET

main25628-54012i5L..LH172,184199808-200501

main89466-20020i2RZE..RZH113199405-199508

25629GASKET, EGR VALVE ADAPTER

main25629-54011i5L..LH172,184199808-200501

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54240i5L..LH172,174..LHD..4D..GEN199808-200501

main25800-54260i5LE..LH172200108-200501

9011608260

main90116-08260

90119T0029

main90119-T0029

90119T0052

main90119-T0052

9017908101

main90179-08101

9017908150

main90179-08150

9161160830

main91611-60830

91611B0816

main91611-B0816

9161260830

main91612-60830

92112F0845

main92112-F0845

17 parts on this diagram · 2 diagrams in section
