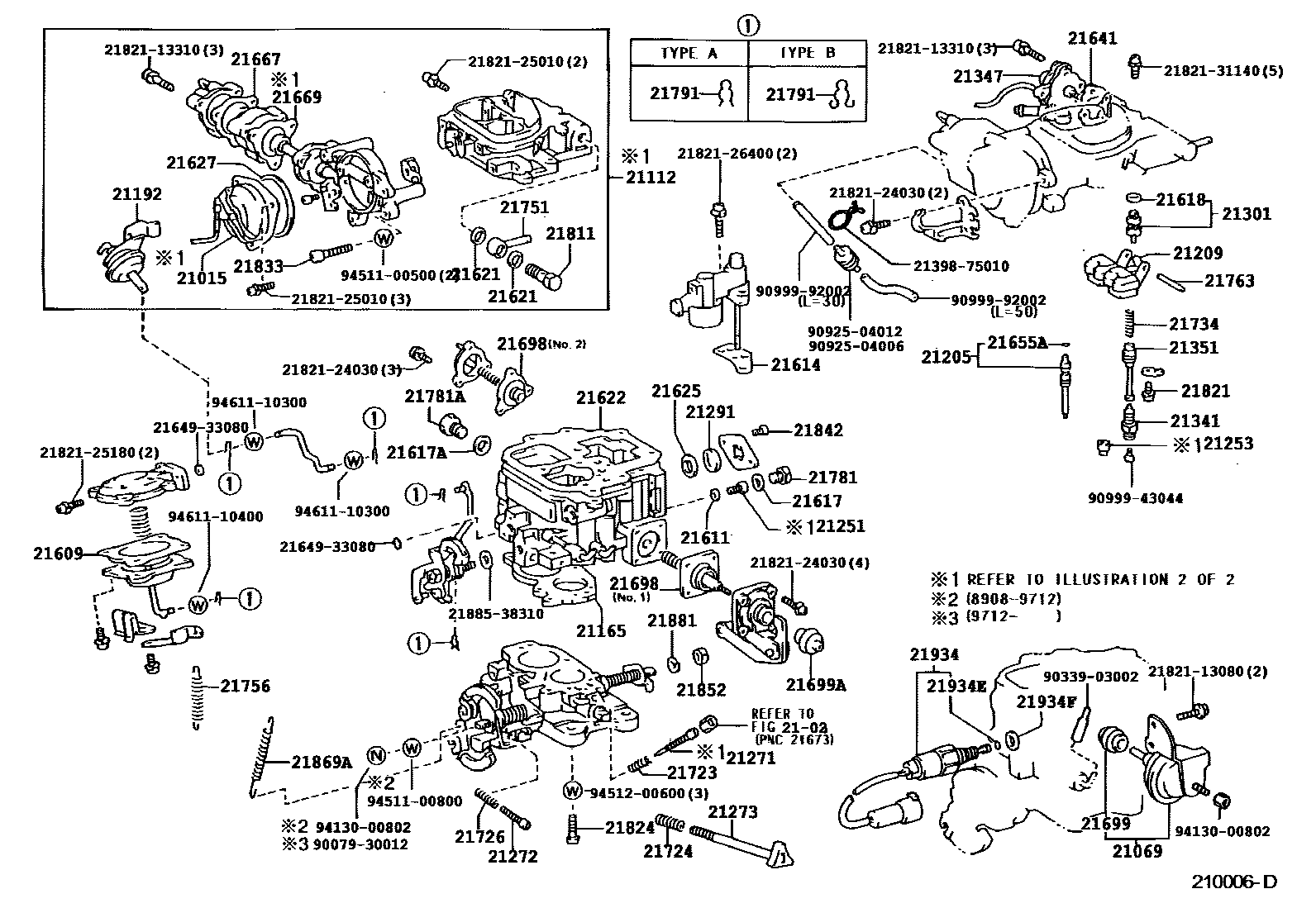

CARBURETOR
21015HOUSING SUB-ASSY, COIL
main21015-72030i1RZ..RZH104..CIS;1RZ..RZH114..SRF..STD;1RZ..RZH104,112,114..GL;1RZ..RZH102,104,112..RHD198908-200208
TYPE A:REFER TO ILLUSTRATION
sub21015-71010
TYPE B:REFER TO ILLUSTRATION
2102
21069DASH POT SUB-ASSY
21112HORN, AIR
TYPE A:REFER TO ILLUSTRATION
main21112-75060i1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ..RZH102,104..03S,06S,12S198908-200108
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
21192BREAKER
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
main21251-13700i1RZ..RZH112,114..4D;1RZ..RZH102,104..RHD;1RZ..RZH102,112..LHD..5D..03S;1RZ..RZH102,104,112..LHD..SG..4F198908-200208
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
21253JET, 2ND MAIN
TYPE A:REFER TO ILLUSTRATION
main21253-75020i1RZ..RZH112,114..4D;1RZ..RZH102,104..RHD;1RZ..RZH102,112..LHD..5D..03S;1RZ..RZH102,104,112..LHD..SG..4F198908-199308
TYPE B:REFER TO ILLUSTRATION
21271SCREW, IDLE ADJUSTING
main21271-15230i2RZ..RZH113..ARL;1RZ,2RZ..RZH113,114..(06S,15S)..GEN;1RZ,2RZ..RZH102,103,104,112,125..(03S,05S,06S,10S,12S,14S)..(ARL,GEN)198908-200108
TYPE B:REFER TO ILLUSTRATION
main21271-26440i1RZ..RZH114..GL;1RZ..RZH112..06S;1RZ..RZH112..LHD..03S;1RZ,2RZ..RZH113,114..SRF..STD;1RZ,2RZ..RZH10#,115..03S,09S,10S,12S,15S198908-200208
TYPE A:REFER TO ILLUSTRATION
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21341VALVE, POWER
21351PISTON, POWER
21609DIAPHRAGM SUB-ASSY
21611GASKET, MAIN JET
21617GASKET, MAIN PASSAGE PLUG
21617AGASKET, MAIN PASSAGE PLUG, NO.2
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21655ARING, O(FOR SLOW JET)
21667DIAPHRAGM
sub21667-72301
main21667-72301i1RZ..RZH104..CIS;1RZ..RZH114..SRF..STD;1RZ..RZH104,112,114..GL;1RZ..RZH102,104,112..RHD199009-200208
21669DIAPHRAGM
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
sub21669-73370
TYPE B:REFER TO ILLUSTRATION
21698DIAPHRAGM
NO.1
NO.2
21699BOOT(FOR PUMP PLUNGER)
21699ABOOT(FOR ACCELERATION PUMP)
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21734SPRING, POWER PISTON
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781APLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)
21811BOLT, UNION NIPPLE
21821SCREW, 2ND THROTTLE VALVE SET
21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21869ASPRING(FOR THROTTLE)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2139875010SUPPORT(FOR DASH POT)
main21398-75010
2164933080GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
main21649-33080
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182113310SCREW, 2ND THROTTLE VALVE SET
main21821-13310
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2188538310
main21885-38310
9007930012
main90079-30012
9033903002
main90339-03002
9092504006
main90925-04006
9092504012
main90925-04012
9099943044
main90999-43044
9099992002
main90999-92002
9413000802
main94130-00802
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
