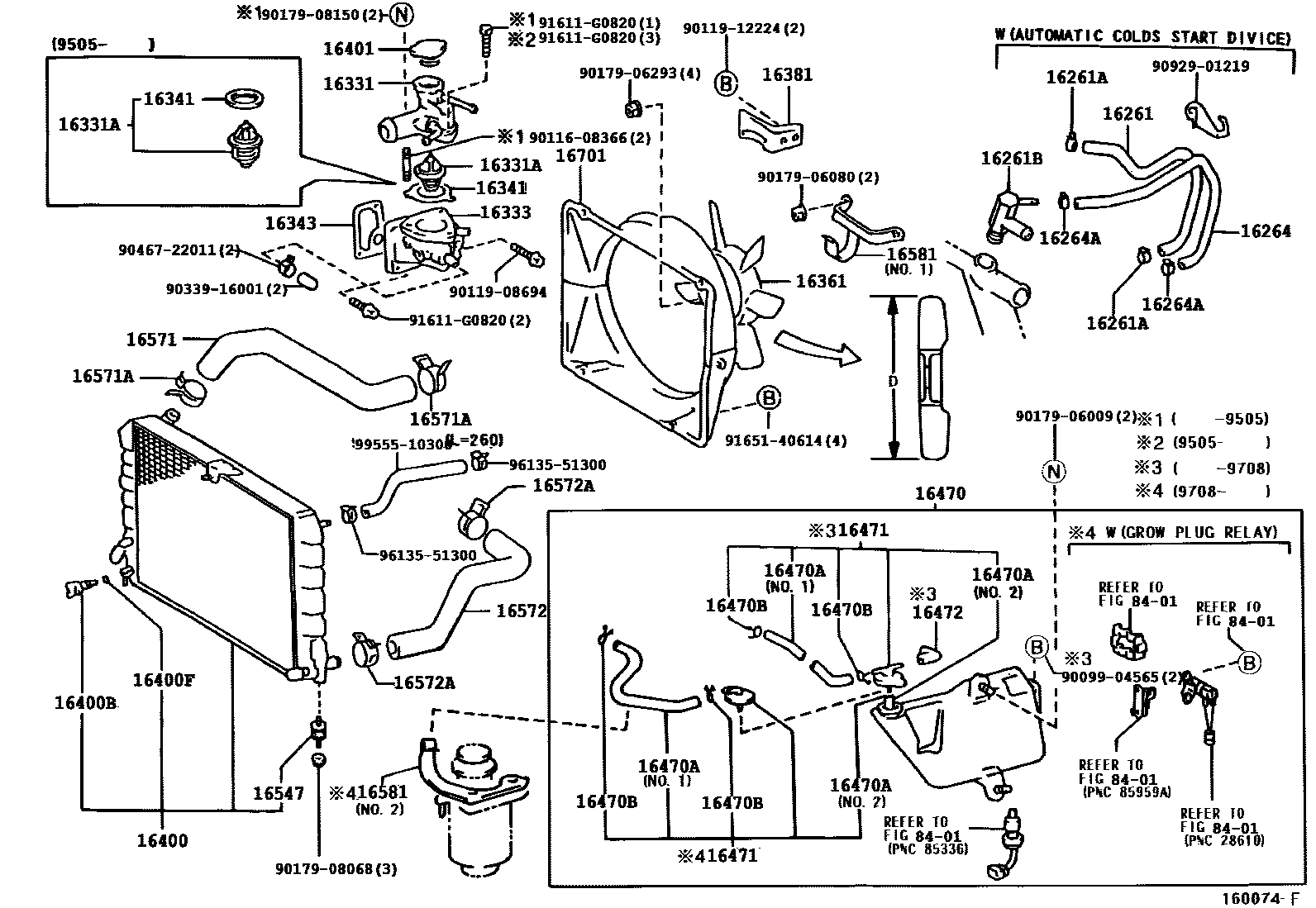

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-54120i2L..LH104,114..LHD199010-199808

sub16261-54121

main16261-54120i3L..LH115..CIS;3L..LH103..5D..03S;3L,5L..LH115,172..RHD;3L,5L..LH113,184..HRF,SMRF;2L,3L,5L..LH105,112,114,166,174,176..LHD199808-199908

NO.1

sub16261-54121

main16261-54121i5L..LH174..12S199908-200501

NO.1

main16261-54130i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199808-200501

NO.2

main16261-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115198908-200208

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i5L..LH174..12S199010-200312

main96135-41300i1RZ,2RZ..RZH10#,11#,125198908-200008

sub96135-51300

main96135-51300i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115199907-200208

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-54037i2L..LH112..DX;2L..LH104,112,114..CIS199010-199808

main90404-54040i2L..LH104,114..LHD199108-199501

sub90404-54037

main90404-54046i5L..LH162..03S..GEN;5L..LH164,166,174,176..CIS199808-200501

16264HOSE, WATER BY-PASS, NO.2

main16264-54120i2L..LH104,114..LHD199010-199608

sub16264-54121

main16264-54121i3L..LH103..5D;2L..LH104..CIS;2L..LH112,114..LHD;3L..LH113,115..RHD..GEN199608-200602

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022i3L..LH103..5D;2L..LH104..CIS;2L..LH112,114..LHD;3L..LH113,115..RHD..GEN199010-200501

16331OUTLET, WATER

main16304-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

main16331-54110i2L,3L..LH10#,11#,125198908-199108

sub16331-54111

main16331-54111i2L,3L..LH10#,11#,125199108-199808

main16331-54112i5LE..LH172;5L..LH174..12S199808-200501

16331ATHERMOSTAT

main16340-54010i5L..LH162..4FC;5L..LH172..06S;5L..LH172,174..GCC199505-200108

*WAX 88-100

main16340-54040i5LE..LH172;5L..LH174..12S200104-200501

*WAX 82-95

main16340-54040i2L,3L,5L..LH10#,11#,125,166,17#,184199505-199907

*WAX 82-95,THAILAND SPEC

main90916-03088i1RZ,2RZ..RZH10#,11#,125198908-199304

*WAX 82-95

sub90916-03101

main90916-03099i2L,3L..LH10#,11#,125198908-199505

*WAX 88-100

main90916-03101i1RZ#,2RZ#..RZH10#,11#,125,135,153199304-199709

*WAX 82-95

sub90916-03120

main90916-03106i2L..LH112..RHD199907-200104

*WAX 88-100,MALAYSIA SPEC

sub90916-03099

main90916-03120i1RZ..RZH112..4D..06S199709-200208

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-54111i2L..LH104,114..LHD199010-199108

W(AUTOMATIC COLD START DIVICE)

sub16333-54112

main16333-54112i2L..LH112..DX;2L..LH104,112,114..CIS199108-199505

W(AUTOMATIC COLD START DIVICE)

main16333-54113i2L..LH112..5D199505-200501

W(AUTOMATIC COLD START DIVICE)

main16333-54121i2L,3L..LH10#,11#,125198908-199108

sub16333-54122

main16333-54122i2L,3L..LH10#,11#,125..(GL,STD)..(ARL,GCC,GEN)199108-199505

main16333-54123i5L..LH162..03S..GEN199505-200501

16341GASKET, WATER OUTLET

main16341-05020i5L..LH174..12S200104-200501

(L)

main16341-05020i2L..LH114..RHD200104

MALAYSIA SPEC,(L)

main16341-35010i2L..LH114..RHD200104

MALAYSIA SPEC,(J)

main16341-35010i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199505-200312

main16341-35010i5L..LH172..4FC200104-200501

(J)

main16341-54030i2L,3L..LH10#,11#,125198908-199110

sub16341-54040

main16341-54040i2L,3L..LH10#,11#,125199110-199505

main16341-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

16343GASKET, WATER OUTLET HOUSING

main16343-05010i5L..LH174..12S200211-200312

(L)

sub16343-54040

main16343-05010i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC,(L)

sub16343-54040

main16343-54030i2L,3L..LH10#,11#,125198908-199110

sub16343-54040

main16343-54040i5L..LH174..12S200211-200312

(J)

main16343-54040i5LE..LH172199110-200501

main16343-54040i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC,(J)

16361FAN

main16361-38010i2RZE..RZH113;1RZ,2RZ..RZH104,113,114..ARL,CIS;1RZE,2RZ..RZH102,103,125..RHD..4D199508-199608

NEW ZEALAND SPEC

main16361-38010i1RZ..RZH102..RHD..4F;1RZ,2RZ..RZH103,104,11#,125..RHD198908-199108

MALAYSIA OR SINGAPORE SPEC

main16361-38010i2RZ..RZH103,113,125199108-200208

MALAYSIA SPEC

main16361-38010i2RZ..RZH103,113,125199108-200208

CHINA SPEC(WITH OUT CKD,SKD)

main16361-38010i1RZ..RZH104,112,114..CIS;1RZ..RZH104,112,114..RHD;1RZ,2RZ#..RZH102,103,113,125..ARL,GEN199308-199808

MALAYSIA OR SINGAPORE OR THAILAND SPEC

main16361-38010i2RZE..RZH113;1RZ,2RZ..RZH104,113,114..ARL,CIS;1RZE,2RZ..RZH102,103,125..RHD..4D199508-199907

SINGAPORE SPEC

main16361-38010i2RZE..RZH113;1RZ,2RZ..RZH104,113,114..ARL,CIS;1RZE,2RZ..RZH102,103,125..RHD..4D199508-199608

SINGAPORE OR THAILAND SPEC

main16361-38010i2RZE..RZH113;1RZ,2RZ..RZH104,113,114..ARL,CIS;1RZE,2RZ..RZH102,103,125..RHD..4D199508-199907

NEW ZEALAND OR SINGAPORE SPEC

main16361-38010i1RZ..RZH114..LHD..SRF..STD..GEN199607-200208

VIETNAM SPEC

main16361-38010i1RZ..RZH104,114..CIS;1RZE,2RZE..RZH102,103,112,113,135,153199608-199907

main16361-38010i1RZ,2RZ..RZH103,104,105,112,114..GL199608-200108

CHINA SPEC

main16361-38010i1RZ..RZH102,104,114..RHD199808-200408

PHILIPPINES SPEC

main16361-44032i1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ..RZH102,104..03S,06S,12S198908-200108

main16361-54020i2L,3L..LH10#,11#,125..ARL,CIS,GEN199707-200008

main16361-54020i3L..LH125..STD;3L..LH125..SMRF;2L,3L..LH10#,11#..(GL,STD)..(ARL,CIS,GEN)198908-199808

D=410

main16361-54050i2L..LH112..DX199405-199508

sub16361-67030

main16361-54070i3L..LH113,115..GCC199308-200008

MIDDLE EAST SPEC

main16361-54070i3L..LH113..GCC;3L..LH115..LHD199608-199808

D=430

main16361-54070i3L..LH115..LHD..GEN199902-199907

EGYPT SPEC

main16361-54140i5L..LH172,174..GCC200008-200501

MIDDLE EAST SPEC OR EGYPT SPEC

main16361-67030i5L..LH166,17#,184199808-200312

16381BAR, FAN BELT ADJUSTING

main16381-54070i2L,3L,5L..LH10#,11#,125,172,174,184198908-199809

sub16381-54071

main16381-54071i5L..LH162..4FC;5L..LH172..06S..GL199809-200501

main16381-54090i5L..LH166,176199808-199809

sub16381-54091

main16381-54091i5L..LH166,176199809-200408

main16381-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-199704

main16381-75040i1RZ,2RZ#..RZH10#,11#,125,135,153199704-199908

sub16381-75050

main16381-75050i1RZ,2RZE..RZH102,103..03S..GEN199908-200208

16400RADIATOR ASSY

main16400-54750i3L..LH103,105,113,115,125..5F198908-199307

CORE THICKNESS=32,FIN PITCH=3.5

sub16400-54751

main16400-54751i2L..LH112..06S;3L..LH103,113,115..RHD..5F;2L,3L..LH104,112,114,125..4D..(ARL,CIS)199307-199411

CORE THICKNESS=32,FIN PITCH=3.5

sub16400-54752

main16400-54752i3L..LH103,115..RHD..5F;2L,3L..LH112,113..4D..06S;2L,3L..LH104,112,113,114,125..5F..(ARL,CIS)199411-199606

CORE THICKNESS=32,FIN PITCH=3.5

sub16400-54753

main16400-54753i3L..LH103,115..RHD..5F;2L,3L..LH112,113..4D..06S;2L,3L..LH104,113,114,125..5F..(ARL,CIS)199606-199808

CORE THICKNESS=32,FIN PITCH=3.5

main16400-54760i2L,3L..LH10#,11#..GEN198908-199307

CORE THICKNESS=49.5,FIN PITCH=4.0

sub16400-54761

main16400-54761i2L,3L..LH102,103,104,11#,125..(GL,STD)..GEN199307-199411

CORE THICKNESS=49.5,FIN PITCH=4.0

sub16400-54762

main16400-54762i2L,3L..LH102,103,104,11#,125..(GL,STD)..GEN199411-199606

CORE THICKNESS=49.5,FIN PITCH=4.0

sub16400-54763

main16400-54763i3L..LH125..SMRF;3L..LH125..STD..GEN;2L,3L..LH10#,11#..GEN199606-199808

CORE THICKNESS=49.5,FIN PITCH=4.0

main16400-54763i3L..LH125..HRF..GEN199707-199808

main16400-54770i3L..LH103,113..4FC198908-199307

sub16400-54771

main16400-54771i3L..LH103,113..4FC199307-199411

sub16400-54772

main16400-54772i3L..LH103,113..4FC199411-199606

sub16400-54773

main16400-54773i3L..LH103,113..4FC199606-199808

main16400-5B171i3L..LH113..GCC;2L,3L..LH105,112,115..LHD..(09S,12S,15S)199308-199411

sub16400-5B172

main16400-5B172i3L..LH113..GCC;2L,3L..LH105,112,115..LHD..(09S,12S,15S)199411-199606

CORE THICKNESS=49.5,FIN PITCH=3.5

sub16400-5B173

main16400-5B173i3L..LH113..GCC;3L..LH115..LHD199606-199808

CORE THICKNESS=49.5,FIN PITCH=3.5

main16400-5B740i5L..LH172..03S..GL;2L,5LE..LH112,172..4D;5L..LH162,172,174..5F..STD;2L,5L..LH102,104,114,154,164,166,176,184..(03S,10S,11S,12S,14S,15S)..5F199808-200208

sub16400-5B741

main16400-5B741i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN200208-200501

main16400-5B750i5L..LH162..4FC199808-200208

sub16400-5B751

main16400-5B751i5L..LH162..4FC200208-200501

main16400-75020i1RZ..RZH102,104,112,114..4F,5F198908-199011

sub16400-75070

main16400-75050i1RZ..RZH114..4FC198908-199010

sub16400-75051

main16400-75060i2RZ..RZH103,113,125..5F..ARL198908-199308

sub16400-75061

main16400-75061i2RZE..RZH113;2RZ..RZH103,113..5F..(ARL,GCC);1RZ,2RZ..RZH102,104,105,112,114,115,125199308-199411

sub16400-75062

main16400-75062i2RZE..RZH113;2RZ..RZH103,113..5F..(ARL,GCC);1RZ,2RZ..RZH102,104,105,112,114,115,125199411-199808

main16400-75070i1RZ..RZH114..4F,5F;1RZ..RZH102,104,112..4F198908-199011

MALAYSIA OR MIDDLE EAST OR SINGAPORE SPEC

sub16400-75071

main16400-75070i1RZ..RZH102,104,112,114199011-199308

sub16400-75071

main16400-75080i2RZ..RZH103,113..4FC..ARL198908-199308

sub16400-75081

main16400-75081i2RZ..RZH103,113..4FC199308-199411

sub16400-75082

main16400-75082i2RZ..RZH103,113..4FC199411-199808

main16400-75090i2RZ..RZH103,113..5F..GEN199210-199308

sub16400-75091

main16400-75091i2RZ..RZH103,113..GEN199308-199411

sub16400-75092

main16400-75092i2RZ..RZH103,113..06S..GEN199508-199808

NEW ZEALAND SPEC

main16400-75092i2RZ..RZH103,113..GEN199411-199508

main16400-75100i2RZ..RZH113..4FC..GEN199210-199308

sub16400-75101

main16400-75330i1RZ,2RZ#..RZH10#,11#,125,135,153..5F199808-199912

sub16400-75370

main16400-75340i2RZE..RZH103,113,125..SG..5F..STD199808-200501

NEW ZEALAND SPEC

main16400-75350i2RZE..RZH103,113,125..4FC199808-200501

main16400-75360i2RZE..RZH125..4FC199808-200501

NEW ZEALAND SPEC

main16400-75370i1RZ..RZH112..4D..06S199912-200208

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i5L..LH174..12S199808-200501

main16417-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-199808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i5L..LH174..12S199808-200501

main16418-24200i2L,3L..LH10#,11#,125198908-199610

main16418-50121i2L,3L..LH10#,11#,125199610-199808

16401CAP SUB-ASSY, RADIATOR

main16401-54750i2L,3L..LH10#,11#,125199606-199808

main16401-71010i2L,3L..LH10#,11#,125198908-200011

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-54190i2L,3L..LH10#,11#,125198908-199005

sub16470-54191

main16470-54191i2L,3L..LH10#,11#,125199005-199204

main16470-54212i2L..LH104,114..LHD199108-199204

*EX-USSR SPEC

sub16470-54213

main16470-54213i2L..LH104,114..LHD199204-199306

sub16470-54214

main16470-54214i2L,3L..LH10#,11#,125199306-199708

main16470-54215i2L,3L..LH10#,11#,125..ARL,GCC,GEN199708-199808

main16470-54360i2L..LH104..CIS;2L..LH112,114..LHD199708-199808

W(GLOW PLUG RELAY)

main16470-75010i1RZ,2RZ..RZH10#,11#,125198908-199205

main16470-75020i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15199205-200208

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-54215i2L,3L..LH10#,11#,125199708-199808

NO.1

main85338-54190i3L..LH125..HRF..GEN199707-199708

main85338-54190i3L..LH125..STD;3L..LH125..SMRF;2L,3L..LH10#,11#198908-199708

NO.1

main85338-75010i1RZ..RZH112..4D..06S199907-200208

main85338-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908

NO.2

main90099-33466i1RZ,2RZ..RZH10#,11#,125198908-198909

L=600(*H,L=210),NO.1

sub90445-12078

main90445-12078i2L,3L..LH10#,11#,125198908-199302

L=600(*H,L=155),NO.2

main90445-12078i1RZ..RZH112..4D..06S199907-200208

L=600(*H,L=220)

main90445-12078i3L..LH125..HRF..GEN199707-199708

L=600(*H,L=175)

main90445-12078i2L,3L..LH10#,11#,125199708-199808

L=600(*H,L=180),NO.2

main90445-12078i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198909

L=600(*H,L=220),NO.1

main90445-12078i3L..LH125..STD;3L..LH125..SMRF;2L,3L..LH10#,11#199302-199708

L=600(*H,L=175),NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

16471CAP SUB-ASSY, RESERVE TANK

main16401-63010i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F199808-200501

main16405-54200i2L,3L..LH10#,11#,125198908-199005

main16405-54201i2L,3L..LH10#,11#,125199005-199204

sub16405-54202

main16405-54202i2L,3L..LH10#,11#,125199204-199708

main16405-54203i2L,3L..LH10#,11#,125199708-199808

main16405-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

16472HOSE, BREATHER

main16477-54380i5L..LH172..4FC199808-200501

main85338-54191i2L,3L..LH10#,11#,125199005-199808

main85338-70100i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

main85338-74040i2L,3L..LH10#,11#,125198908-199005

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-67040i5L..LH162,172,184..4FC198908-200501

16571HOSE, RADIATOR, INLET

main16571-54320i5L..LH172..4FC198908-200501

main16571-54331i5L..LH166,176199808-200408

main16571-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i1RZ,2RZ#..RZH10#,11#,125,135,15#198908-200108

sub90467-37003

main90467-37005i5L..LH172..4FC200108-200501

16572HOSE, RADIATOR, OUTLET

main16572-54320i2L,3L..LH10#,11#,125198908-199808

main16572-54620i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)199808-200501

main16572-54630i5L..LH166,176199808-200408

main16572-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-199808

main16572-75150i1RZ..RZH112..4D..06S199808-200208

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i5L..LH162,172;2L,5L..LH112,174..4D..STD;2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S198908-200108

RADIATOR SIDE

sub90467-37003

main90467-37001i1RZ,2RZ#..RZH10#,11#,125,135,15#199808-200108

NO.1

sub90467-37003

main90467-37001i1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)198908-200108

NO.2

sub90467-37003

main90467-37002i1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)198908-200204

NO.1

sub90467-37005

main90467-37005i1RZ,2RZ#..RZH10#,11#,125,135,15#200108-200602

main90467-37005i5L..LH172..4FC200108-200501

NO.1

main90467-37005i1RZ,2RZ#..RZH10#,11#,125,135,15#199907-200204

ENGINE SIDE

main90467-41002i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199907-200501

NO.2

sub90466-41008

main90467-41006i5L..LH166,176199808-200408

NO.2

sub90467-41002

main90467-41006i2L,3L..LH10#,11#,125199608-199808

ENGINE SIDE

sub90467-41002

main96111-10480i2L,3L..LH10#,11#,125199002-199608

ENGINE SIDE

main96111-10500i2L,3L..LH10#,11#,125198908-199002

ENGINE SIDE

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-54010i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

NO.1

sub16581-54100

main16581-54070i2L,3L..LH10#,11#,125199705-199808

NO.2

main16581-54080i2L,3L,5L..LH10#,11#,125,166,17#,184199808-199907

NO.2

main16581-54081i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)199907-200501

NO.2

16701SHROUD SUB-ASSY, FAN

main16701-54220i2L,3L..LH10#,11#,125198908-199808

main16701-54290i5L..LH162..4FC;5L..LH172..06S..GL199808-200501

main16701-54300i5L..LH166,176199808-200408

main16701-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-199808

main16701-75040i1RZ..RZH112..4D..06S199808-200208

8401

9009904565

main90099-04565

9011608366

main90116-08366

9011908694

main90119-08694

9011912224

main90119-12224

9017906009

main90179-06009

9017906080

main90179-06080

9017906293

main90179-06293

9017908068

main90179-08068

9017908150

main90179-08150

9033916001

main90339-16001

9046722011

main90467-22011

9092901219

main90929-01219

91611G0820

main91611-G0820

9165140614

main91651-40614

9613551300

main96135-51300

9955510300

main99555-10300

45 parts on this diagram · 6 diagrams in section
