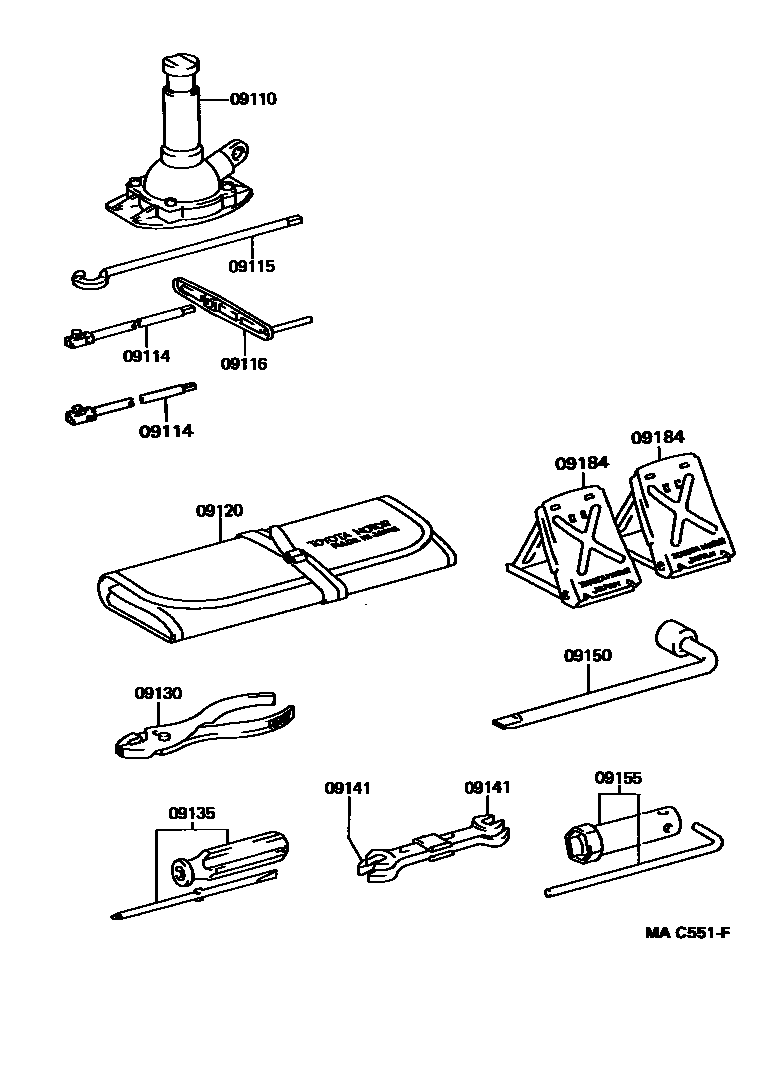

STANDARD TOOL

09110JACK ASSY

main09110-26050iLH10#,11#,125,RZH10#,11#,125,135,153199608-199808

main09110-95J00iLH103,113,125,RZH103,113,125..ARL198908-199608

main09111-26110iLH10#,11#,125,154,162,164,172,174,184,RZH10#,11#,125,135,15#199907-200602

main09111-26120iLH166,176199907-200408

main09111-95J00iLH10#,11#,125,RZH10#,11#..CIS,GCC,GEN199411-199608

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010×2iLH162,RZH103..5F..ARL; RZH104..LHD..STD;LH174,RZH115..STD..CIS;LH162,RZH103,155..(03S,06S,11S)..(CIS,GEN);LH102,104,164,166,176,RZH102,105..4D..(03S,10S,12S,15S)..(CIS,GEN)199907-200408

main09114-60050×2iLH10#,11#,125,RZH10#,11#,125198908-199210

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-199411

09116LEVER, JACK HANDLE

main09116-35041×2iLH162,RZH103..5F..ARL; RZH104..LHD..STD;LH174,RZH115..STD..CIS;LH162,RZH103,155..(03S,06S,11S)..(CIS,GEN);LH102,104,164,166,176,RZH102,105..4D..(03S,10S,12S,15S)..(CIS,GEN)199907-200408

09120BAG, TOOL

main09120-12011iLH125..ARL;LH10#,11#,RZH10#,11#,125199405-199411

main09120-26021iLH10#,11#,125,RZH10#,11#,125198908-199405

09130PLIERS

main99913-11500iLH172..RHD..SRF..4D..03S..STD..GEN; RZH103..03S..GEN200008

09135DRIVER, SCREW

main99915-10700iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-199508

09141SPANNER

main99914-10810iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-199508

8 X 10

main99914-11214iLH125..ARL;LH10#,11#,RZH10#,11#,125198908-199508

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35020iLH10#,11#,125,RZH10#,11#,125198908-199308

main09150-40010iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..03S,06S,09S,12S,14S,15S199308-200208

09155WRENCH, SPARK PLUG

main09155-41010iRZH112..5D;RZH112..03S;RZH102,104,105,113,114,115..CBR199907

09184STOPPER, WHEEL

main09184-00010×2iLH172..HRF;RZH112..5D;RZH112..03S;LH172..LHD..4D;LH172..ARL,GCC;LH172,184..06S,14S;LH172..5D..03S..GEN;LH10#,11#,125,154,16#,174,176,RZH10#,113,114,115,125,155199907

11 parts on this diagram · 1 diagram in section
