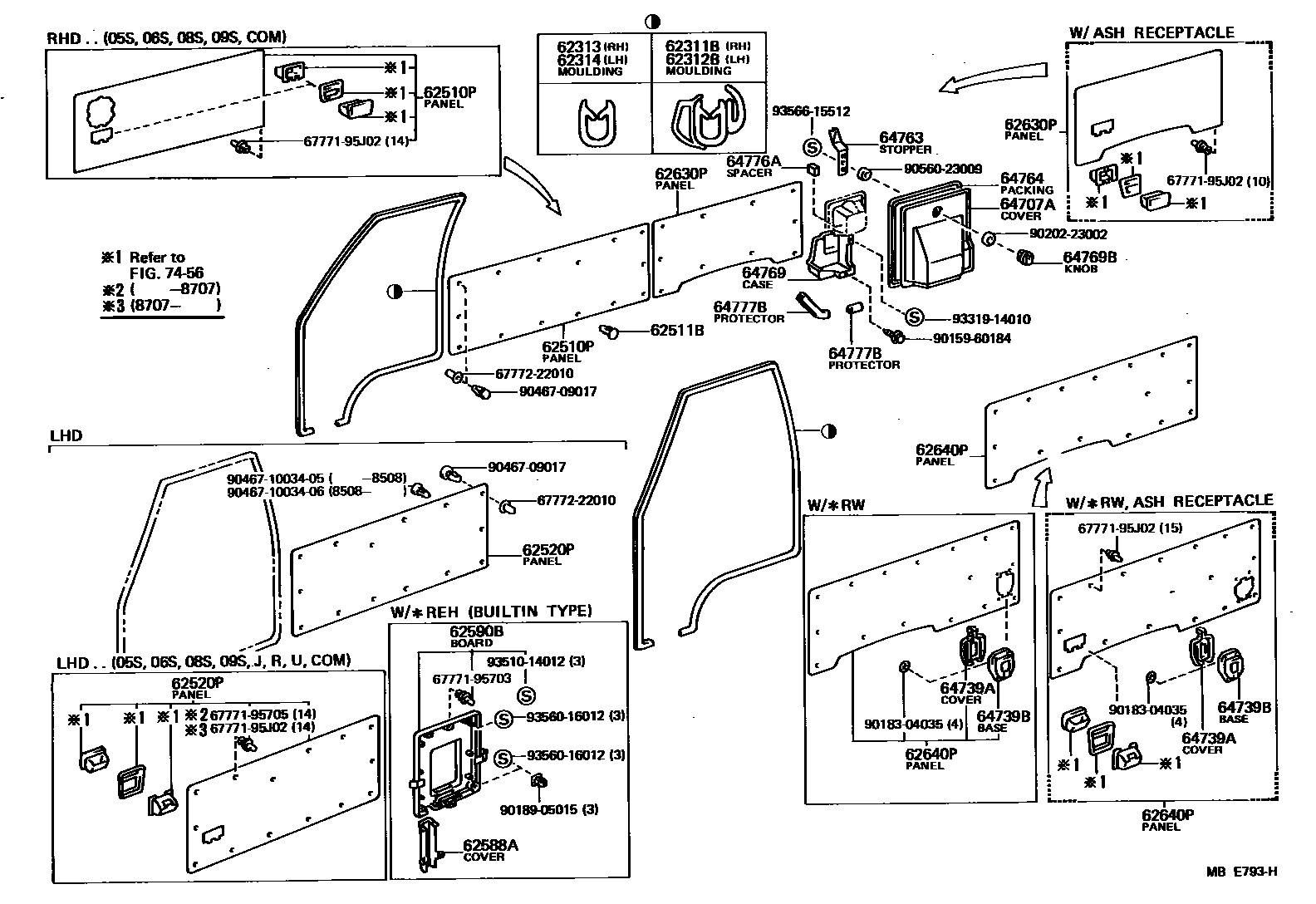

INSIDE TRIM BOARD

0001 1 0003 1 0006 1 0007 1

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-95J00-06iLH51,61,YH5#,61..EUR198411-198508

BROWN,NEW BROWN

sub62311-95J02

main62311-95J00-16iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198508-198608

BROWN,BROWN

sub62311-95J02

main62311-95J02-06iLH5#,6#,YH51,56,61,66..EUR198608-198708

BROWN,BROWN

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-95J00-06iLH51,61,YH5#,61..EUR198411-198508

BROWN,NEW BROWN

sub62312-95J02

main62312-95J00-16iLH51,61,YH5#,61..EUR198508-198608

BROWN,BROWN

sub62312-95J02

main62312-95J02-06iLH5#,6#,YH51,56,61,66..EUR198608-198708

BROWN,BROWN

sub62312-95J02

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-95J00-05iLH5#,6#,7#,YH5#,6#,71198212-198508

BEIGE,BEIGE

sub62313-95J00

main62313-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub62313-95J00

main62313-95J00-16iLH51,61,71,YH50,51,53,60,61,63,7#..4H,4HC,5H198508-198807

BROWN,BROWN

sub62313-95J00

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-95J00-05iLH5#,6#,7#,YH5#,6#,71198212-198508

BEIGE,BEIGE

sub62313-95J00

main62313-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub62313-95J00

main62313-95J00-16iLH51,61,71,YH50,51,53,60,61,63,7#..4H,4HC,5H198508-198807

BROWN,BROWN

sub62313-95J00

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-90C00-05iLH70,YH71198212-198401

BEIGE,BEIGE

sub62510-90C00

main62510-90C00-06iLH71,YH7#198508-198708

BROWN,BROWN

sub62510-90C00

main62510-90C00-15iLH71,YH71198401-198508

BEIGE,BEIGE

sub62510-90C00

main62510-95J06-05iLH50,60,YH50,6#..RHD..(06S,12S)198212-198401

BEIGE,BEIGE

sub62510-95J06

main62510-95J06-06iLH51,61,YH50,51,60,61,63..RHD..STD..(06S,09S,12S,15S)198508-198807

BROWN,BROWN

sub62510-95J06

main62510-95J06-15iLH51,61,YH5#,6#..RHD..STD..(06S,09S,12S,15S)198401-198508

BEIGE,BEIGE

sub62510-95J06

main62510-95J07-05iLH50,60,YH50,60..RHD..COM198212-198401

W/*REH,BEIGE,BEIGE

sub62510-95J07

main62510-95J07-06iLH51,61,YH50,51,60,61..RHD..COM..(EUR,GEN)198508-198708

W/*REH,BROWN,BROWN

sub62510-95J07

main62510-95J07-15iLH51,61,YH50,60..RHD..COM198401-198508

W/*REH,BEIGE,BEIGE

sub62510-95J07

main62510-95J17-04iYH51,53..05S198508-198708

BLUE,BLUE

main62511-95J05iYH51..RHD..V4D..4H..03S;LH50,51,60,61,YH50,53,60,61,63..RHD..V4D..03S198212-198807

main62511-95J17-06iYH51..V4D..03S..GEN198612-198708

HONG KONG SPEC,BROWN

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-09010-06iYH51..GL198306-198508

TYPE A,BROWN,BROWN

sub90467-09010

main90467-09010-14iYH51,53..05S198508-198708

BLUE,BLUE

sub90467-09010

main90467-09010-16iYH51..GL..SA198508-198807

BROWN,DARK BROWN

sub90467-09010

main90467-10034-05iYH51..GL198306-198508

TYPE B,BEIGE,REDDISH BROWN

sub90467-10034

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62512-95J02iYH63..V4D..03S..ARL198608-198708

W/O RR SEAT

main62512-95J02iLH50,51,60,61,YH50,51,60,61..LHD..V4D..03S198212-198708

main62512-95J02iYH63..V4D..03S..ARL198608-198708

W/*RW

main62520-90C00-05iLH70,YH71198212-198401

BEIGE,BEIGE

sub62520-90C00

main62520-90C00-06iLH71,YH71198508-198708

BROWN,BROWN

sub62520-90C00

main62520-90C00-15iLH71,YH71198401-198508

BEIGE,BEIGE

sub62520-90C00

main62520-95J03-05iLH50,60,YH50,60..LHD..COM198212-198401

W/*REH,FLOOR SET TYPE,BEIGE,BEIGE

sub62520-95J03

main62520-95J03-06iLH51,61,YH50,51,60,61..LHD..COM198508-198708

W/*REH,FLOOR SET TYPE,BROWN,BROWN

sub62520-95J03

main62520-95J03-15iLH51,61,YH50,60..LHD..COM198401-198508

W/*REH,FLOOR SET TYPE,BEIGE,BEIGE

sub62520-95J03

main62520-95J04-05iYH50..LHD..12S;LH50,60..LHD..(09S,12S);LH50,YH50,60..LHD..V4D..(06S,09S)198212-198401

BEIGE,BEIGE

sub62520-95J04

main62520-95J04-06iYH50..V4D..VSG..N1;YH51..LHD..V4D..VSG;YH50,60,61..LHD..V4D..06S;LH51,61,YH50,51,60,61..LHD..COM;LH5#,6#,YH56,61,66..V4D..(J,R,U)198508-198708

BROWN,BROWN

sub62520-95J04

main62520-95J04-15iYH50..LHD..12S;YH5#,6#..LHD..V4D..(06S,09S);LH51,61,YH60..LHD..(09S,12S,15S)198401-198508

BEIGE,BEIGE

sub62520-95J04

main62520-95J05-05iLH60,YH50,60..J198212-198401

W/*REH,BUILTIN TYPE,BEIGE,BEIGE

sub62520-95J05

main62520-95J05-06iYH50..V4D..VSG..N1;LH5#,6#,YH51,56,61,66..V4D..(J,R,U)..EUR198508-198708

W/*REH,BUILTIN TYPE,BROWN,BROWN

sub62520-95J05

main62520-95J05-15iLH51,61,YH5#,61..J..EUR198401-198508

W/*REH,BUILTIN TYPE,BEIGE,BEIGE

sub62520-95J05

62588ACOVER, SIDE HEATER, LOWER

main62588-95J00-05iLH60,YH50,60..09S198212-198401

BEIGE,BEIGE

sub62588-95J00

main62588-95J00-15iLH61,YH5#,61..09S..EUR198401-198508

BEIGE,BEIGE

sub62588-95J00

main62588-95J00-16iYH50..V4D..VSG..N1198508-198708

BROWN,BROWN

sub62588-95J00

main62588-95J00-16iLH51,6#,YH51,61,66..MTM..M1198508-198708

W/08S,09S,BROWN,BROWN

sub62588-95J00

62590BBOARD ASSY, SIDE HEATER COVER, LH

main62590-95J00-05iLH60,YH50,60..09S198212-198401

BEIGE,BEIGE

sub62590-95J00

main62590-95J00-06iLH51,6#,YH51,61,66..MTM..M1198508-198708

BROWN,BROWN

sub62590-95J00

main62590-95J00-06iLH51,6#,YH51,61,66..MTM..M1198508-198708

W/08S,09S,BROWN,BROWN

sub62590-95J00

main62590-95J00-15iLH61,YH5#,61..09S..EUR198401-198508

BEIGE,BEIGE

sub62590-95J00

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-90C00-05iLH70,YH71198212-198401

BEIGE,BEIGE

sub62630-90C00

main62630-90C00-06iLH71,YH7#198508-198708

BROWN,BROWN

sub62630-90C00

main62630-90C00-15iLH71,YH71198401-198508

BEIGE,BEIGE

sub62630-90C00

main62630-95J06-05iLH60,YH60..J198212-198401

W/*REH,BUILTIN TYPE,BEIGE

sub62630-95J06

main62630-95J07-05iYH50..G;LH50,YH50..12S198212-198401

BEIGE,BEIGE

sub62630-95J07

main62630-95J07-06iLH51,YH50,51..12S198508-198708

BROWN,BROWN

sub62630-95J07

main62630-95J07-15iYH50..G;LH51,YH50..12S198401-198508

BEIGE,BEIGE

sub62630-95J07

main62630-95J09-05iLH60,YH6#..15S198212-198401

BEIGE,BEIGE

sub62630-95J09

main62630-95J09-06iLH61,YH60,61,63..15S198508-198807

BROWN,BROWN

sub62630-95J09

main62630-95J09-15iLH61,YH6#..15S198401-198508

BEIGE,BEIGE

sub62630-95J09

main62630-95J10-05iLH60,YH60..J198212-198401

BEIGE,BEIGE

sub62630-95J10

main62630-95J10-06iLH6#,YH61,66..LHD..VSG..EUR198508-198708

W/ASH RECEPTACLE,BROWN,BROWN

sub62630-95J10

main62630-95J10-15iLH61,YH61..J198401-198508

BEIGE,BEIGE

sub62630-95J10

main62630-95J11-05iYH5#..J198212-198401

BEIGE,BEIGE

sub62630-95J11

main62630-95J11-06iYH50..V4D..VSG..N1;LH5#,YH51,56..STD..(J,R,U)198508-198807

W/ASH RECEPTACLE,BROWN,BROWN

sub62630-95J11

main62630-95J11-15iLH51,YH5#..STD..J198401-198508

BEIGE,BEIGE

sub62630-95J11

main62630-95J24-04iYH51,53..05S198508-198708

BLUE,BLUE

main62631-95J04iYH50..V4D..R;LH51,YH51..R,U;LH51,YH50..03S,06S;YH51..4HC..(03S,06S)..N1;LH50,56,YH53,56..V..(ARL,EUR,GEN);YH51..(4FC,4H,5F,5H)..(03S,05S,06S)198212-198708

W/O ASH RECEPTACLE

main62631-95J05iYH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)198212-198807

W/O ASH RECEPTACLE

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62632-95J05iYH50..V4D..R;LH51,YH51..R,U;LH51,YH50..03S,06S;YH51..4HC..(03S,06S)..N1;LH50,56,YH53,56..V..(ARL,EUR,GEN);YH51..(4FC,4H,5F,5H)..(03S,05S,06S)198212-198708

W/O ASH RECE PTACLE

main62632-95J06iYH66..N1;YH61..V..4H;LH61,YH61..5H..R;YH61..4HC..(ARL,EUR);LH6#,YH60,63..02S,03S,06S;YH61..5H..(03S,06S)..(ARL,EUR)198212-198807

W/O ASH RECEPTACLE

main62640-95J05-05iYH50..G;LH50,YH50..12S..EUR198212-198401

W/*PW,BEIGE,BEIGE

sub62640-95J05

main62640-95J05-06iLH51,YH51..12S..EUR198508-198708

W/*PW,BROWN,BROWN

sub62640-95J05

main62640-95J05-15iYH50..G;LH51,YH50..12S..EUR198401-198508

W/*PW,BEIGE,BEIGE

sub62640-95J05

main62640-95J07-05iLH70,YH71198212-198401

W/*RW,BEIGE,BEIGE

sub62640-95J07

main62640-95J07-06iYH61,63..GEN198508-198708

W/*RW,BROWN,BROWN

sub62640-95J07

main62640-95J07-15iLH71,YH71198401-198508

W/*RW,BEIGE,BEIGE

sub62640-95J07

main62640-95J08-05iLH50,YH50..12S198212-198401

BEIGE,BEIGE

sub62640-95J08

main62640-95J08-06iLH51,YH50,51..12S198508-198708

BROWN,BROWN

sub62640-95J08

main62640-95J08-15iLH51,YH50..12S198401-198508

BEIGE,BEIGE

sub62640-95J08

main62640-95J09-05iLH60,70,YH6#,71..15S198212-198401

BEIGE,BEIGE

sub62640-95J09

main62640-95J09-06iLH61,71,YH60,61,63,7#..15S198508-198807

BROWN,BROWN

sub62640-95J09

main62640-95J09-15iYH61..G;LH61,71,YH6#,71..15S198401-198508

BEIGE,BEIGE

sub62640-95J09

main62640-95J10-05iLH60,YH60..J198212-198401

BEIGE,BEIGE

sub62640-95J10

main62640-95J10-06iLH6#,YH61,66..LHD..VSG..EUR198508-198708

W/ASH RECEPTACLE,BROWN,BROWN

sub62640-95J10

main62640-95J10-15iLH61,YH61..J198401-198508

BEIGE,BEIGE

sub62640-95J10

main62640-95J12-05iLH60,YH60..J198212-198401

W/*RW,ASH RECEPTACLE,BEIGE,BEIGE

sub62640-95J12

main62640-95J12-06iLH6#,YH61,66..LHD..VSG..EUR198508-198708

W/*RW,ASH RECEPTACLE,BROWN,BROWN

sub62640-95J12

main62640-95J12-15iLH61,YH61..J198401-198508

W/*RW,ASH RECEPTACLE,BEIGE,BEIGE

sub62640-95J12

main62640-95J13-05iYH5#..J198212-198401

BEIGE,BEIGE

sub62640-95J13

main62640-95J13-06iYH50..V4D..VSG..N1;LH5#,YH51,56..STD..(J,R,U)198508-198708

W/ASH RECEPTACLE,BROWN,BROWN

sub62640-95J13

main62640-95J13-15iLH51,YH5#..STD..J198401-198508

BEIGE,BEIGE

sub62640-95J13

main62640-95J14-05iYH5#..J198212-198401

W/*RW,ASH RECEPTACLE,BEIGE,BEIGE

sub62640-95J14

main62640-95J14-06iYH50..V4D..VSG..N1;LH5#,YH51,56..MTM..(J,R,U)..EUR198508-198708

W/*RW,ASH RECEPTACLE,BROWN,BROWN

sub62640-95J14

main62640-95J14-15iLH51,YH5#..STD..J198401-198508

W/*RW,ASH RECEPTACLE,BEIGE,BEIGE

sub62640-95J14

main62640-95J15-06iYH61..15S..EUR198608-198708

W/*RW,BROWN,BROWN

sub62640-95J15

main62640-95J17-05iYH51..4H..ARL;YH51..(03S,06S)..N1;LH5#,YH50..(03S,06S)..(ARL,EUR)198212-198508

NEW ZEALAND SPEC,BEIGE,BEIGE

sub62640-95J17

main62640-95J17-05iYH51..4H..ARL;YH51..(03S,06S)..N1;LH5#,YH50..(03S,06S)..(ARL,EUR)198212-198508

W/*PW,W/O ASH RECEPTACLE,BEIGE,BEIGE

sub62640-95J17

main62640-95J17-06iYH50..V4D..N1;YH51..5H..(R,U);YH51..4HC..03S..N1;YH50..V5D..03S..N1;LH51,YH53,56..V..(ARL,EUR);YH51..(4FC,4H,5F,5H)..(03S,05S)..(ARL,EUR)198508-198708

W/*PW,W/O ASH RECEPTACLE,BROWN,BROWN

sub62640-95J17

main62640-95J18-05iLH61..V4D..06S198401-198508

NEW ZEALAND SPEC,W/*RW,BEIGE,BEIGE

sub62640-95J18

main62640-95J18-05iLH6#,YH6#..(03S,06S)..(ARL,EUR)198212-198508

W/*RW,W/O ASH RECEPTACLE,BEIGE,BEIGE

sub62640-95J18

main62640-95J18-06iLH61..R;YH61..ARL;YH61,66..N1;LH6#,YH63..(02S,03S,06S)..(ARL,EUR)198508-198708

W/*RW,W/O ASH RECEPTACLE,BROWN,BROWN

sub62640-95J18

main62640-95J30-04iYH51,53..05S198508-198708

BLUE,BLUE

64707ACOVER SUB-ASSY, QUARTER TRIM TOOL

main64707-95J01iLH5#,6#,7#,YH5#,6#,7#198212-198807

64739ACOVER, DECK TRIM REAR WASHER

main85365-95J00-05iYH51198212-198401

BEIGE,BEIGE

sub85365-95J00

main85365-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub85365-95J00

main85365-95J00-15iYH51..N1;YH51..4H..ARL;LH51,61,71,YH50,61,71..ARL,EUR198401-198508

BEIGE,BEIGE

sub85365-95J00

main85365-95J00-16iYH51..4HC..03S..N1;YH51..MTM..STD..(ARL,EUR);LH5#,6#,71,YH50,53,56,61,63,66,7#..STD..(ARL,EUR)198508-198807

BROWN,BROWN

sub85365-95J00

64739BBASE, REAR WASHER TANK, SERVICE HOLE COVER

main85366-95J00-05iLH50,60,70,YH50,6#,71..ARL,EUR198212-198401

BEIGE,BEIGE

sub85366-95J00

main85366-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub85366-95J00

main85366-95J00-15iYH51..N1;YH51..4H..ARL;LH51,61,71,YH50,61,71..ARL,EUR198401-198508

BEIGE,BEIGE

sub85366-95J00

main85366-95J00-16iYH51..4HC..03S..N1;YH51..MTM..STD..(ARL,EUR);LH5#,6#,71,YH50,53,56,61,63,66,7#..STD..(ARL,EUR)198508-198807

BROWN,BROWN

sub85366-95J00

64763STOPPER, TOOL COVER

main64763-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

64764PACKING, TOOL COVER

main64764-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

64769CASE SUB-ASSY, TOOL BAG

main64709-95J00iLH50,51,YH50,51198212-198807

main64709-95J01iLH60,61,7#,YH60,61,71198212-198807

64769BKNOB, TOOL COVER

main64769-13010-01iLH5#,6#,7#,YH5#,6#,7#198212-198807

BLACK,BLACK

sub64769-13010

64776ASPACER, TOOL BAG CASE

main64776-95J00iLH50,51,60,61,7#,YH50,51,60,61,71198212-198807

64777BPROTECTOR, QUARTER, INNER

main58426-95700iLH50,51,60,61,7#,YH50,51,60,61,71198212-198807

L=170

main58426-95701iLH50,51,60,61,7#,YH50,51,60,61,71198212-198807

L=40

7456

6777195703WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95703

6777195705WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95705

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9015960184

main90159-60184

9018304035

main90183-04035

9018905015

main90189-05015

9020223002

main90202-23002

9046709017

main90467-09017

904671003405

main90467-1003405

904671003406

main90467-1003406

9056023009

main90560-23009

9331914010

main93319-14010

9351014012

main93510-14012

9356016012

main93560-16012

9356615512

main93566-15512

37 parts on this diagram · 4 diagrams in section
