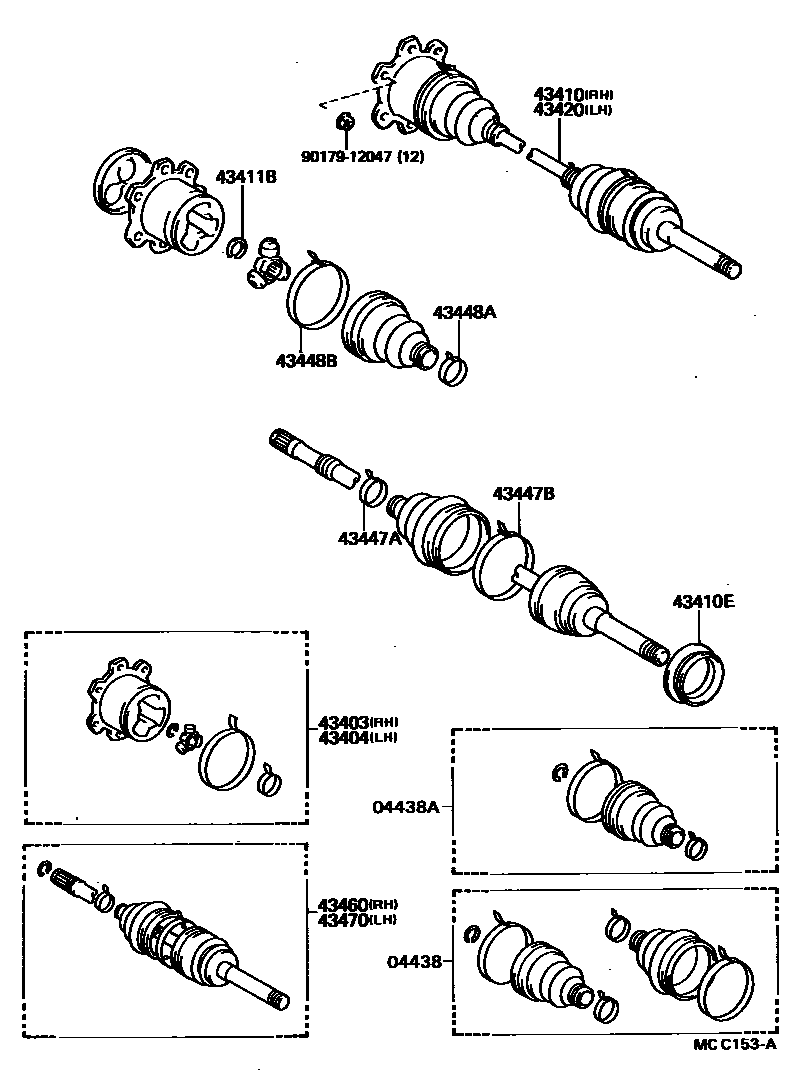

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-35021×2iLH56,66,YH56,66198608-198708

sub04438-35022

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35011×2iLH56,66,YH56,66198608-198708

sub04438-35012

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-39035iLH56,66,YH56,66198608-198708

sub43403-35010

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-39035iLH56,66,YH56,66198608-198708

sub43403-35010

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26010iLH56,66,YH56,66198608-198708

sub43430-26011

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main90304-76001×2iLH56,66,YH56,66198608-198708

sub90304-76002

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iLH56,66,YH56,66198608-198708

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26010iLH56,66,YH56,66198608-198708

sub43430-26011

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iLH56,66,YH56,66198608-198708

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iLH56,66,YH56,66198608-198708

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iLH56,66,YH56,66198608-198708

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iLH56,66,YH56,66198608-198708

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29065iLH56,66,YH56,66198608-198708

sub43460-29066

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29065iLH56,66,YH56,66198608-198708

sub43460-29066

9017912047

main90179-12047

15 parts on this diagram · 1 diagram in section
