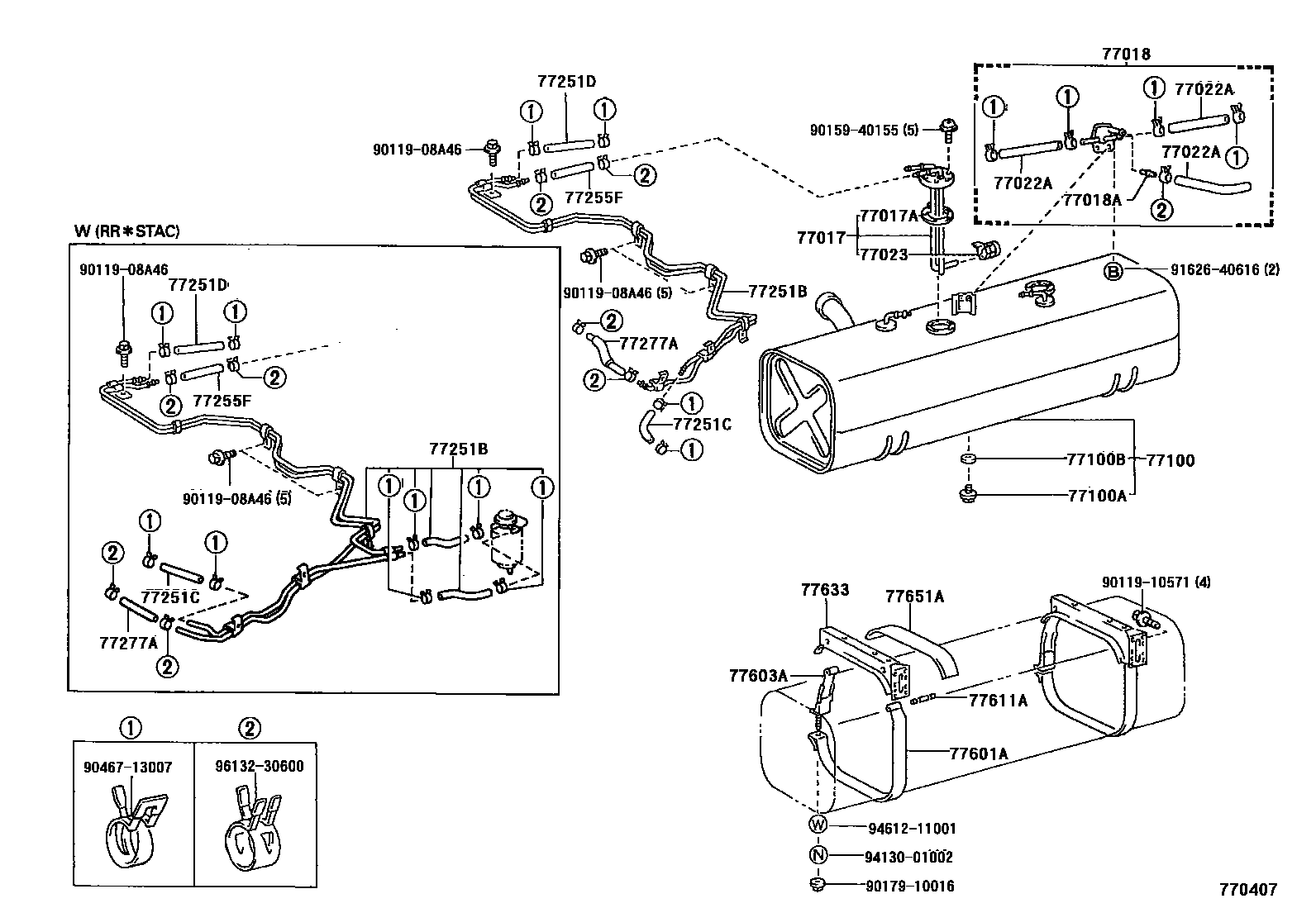

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26110iYY100199505

main77017-26121iLY100199505

77017AGASKET, FUEL TANK VENT

main77169-14020iLY100,YY100199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25130iLY100,YY100..GEN199505

sub77018-37130

main77018-26130iYY100..IV199505

main77018-26140iLY100..EUR199505

sub77018-37140

77018AORIFICE, FUEL VAPOUR

main90977-02001iLY100,YY100..EUR,GEN199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iLY100..EUR199505

*H,L=300

sub95338-06030

main95333-06040iYY100..IV199505

*H,L=380

main95333-06040iYY100..IV199505

*H,L=320

main95333-08020iLY100,YY100199505

L=200(*H,L=160)

sub95337-08020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYY100199505

main77023-32010iLY100199505

77100TANK ASSY, FUEL

main77001-26410iLY100,YY100..GEN199505

sub77001-26420

main77001-26420iLY100..EUR199505

main77001-26430iYY100..IV199505

sub77001-26540

77100APLUG(FOR FUEL TANK)

main90105-12116iLY100,YY100199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iLY100,YY100199505

77251BTUBE, FUEL MAIN

main77205-25170iYY100..IV199610

main77205-26040iLY100..RHD;LY100..LHD..T3..EUR199505

main77205-26050iYY100..CBU199505-199905

main77205-26060iYY100..IV199505-199610

sub77205-25170

main77205-26070iLY100..TW2199505

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-26030iYY100199505-199905

main90447-14045iLY100..RHD;LY100..LHD..T3..EUR199505

main95333-08030iLY100..TW2199505

L=300(*H,L=240)

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-08020iLY100199505

L=200(*H,L=150)

sub95337-08020

main95334-06014iYY100199505-199905

L=200(*H,L=140)

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-04020iYY100199505-199905

L=200(*H,L=140)

main95333-06020iLY100199505

L=200(*H,L=140)

sub95337-06020

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23273-73080iYY100199505-199610

main23273-73090iYY100199610

main90447-12109iLY100..RHD;LY100..LHD..EUR199505

L=310

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26060iLY100,YY100199505

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-26030iLY100,YY100199505

77611APIN (FOR FUEL TANK BAND)

main77653-25010iLY100,YY100199505

77633STAY, FUEL TANK

main77501-25091iLY100,YY100199505

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iLY100,YY100199505

9011908A46

main90119-08A46

9011910571

main90119-10571

9015940155

main90159-40155

9017910016

main90179-10016

9046713007

main90467-13007

9162640616

main91626-40616

9413001002

main94130-01002

9461211001

main94612-11001

9613230600

main96132-30600

28 parts on this diagram · 4 diagrams in section
