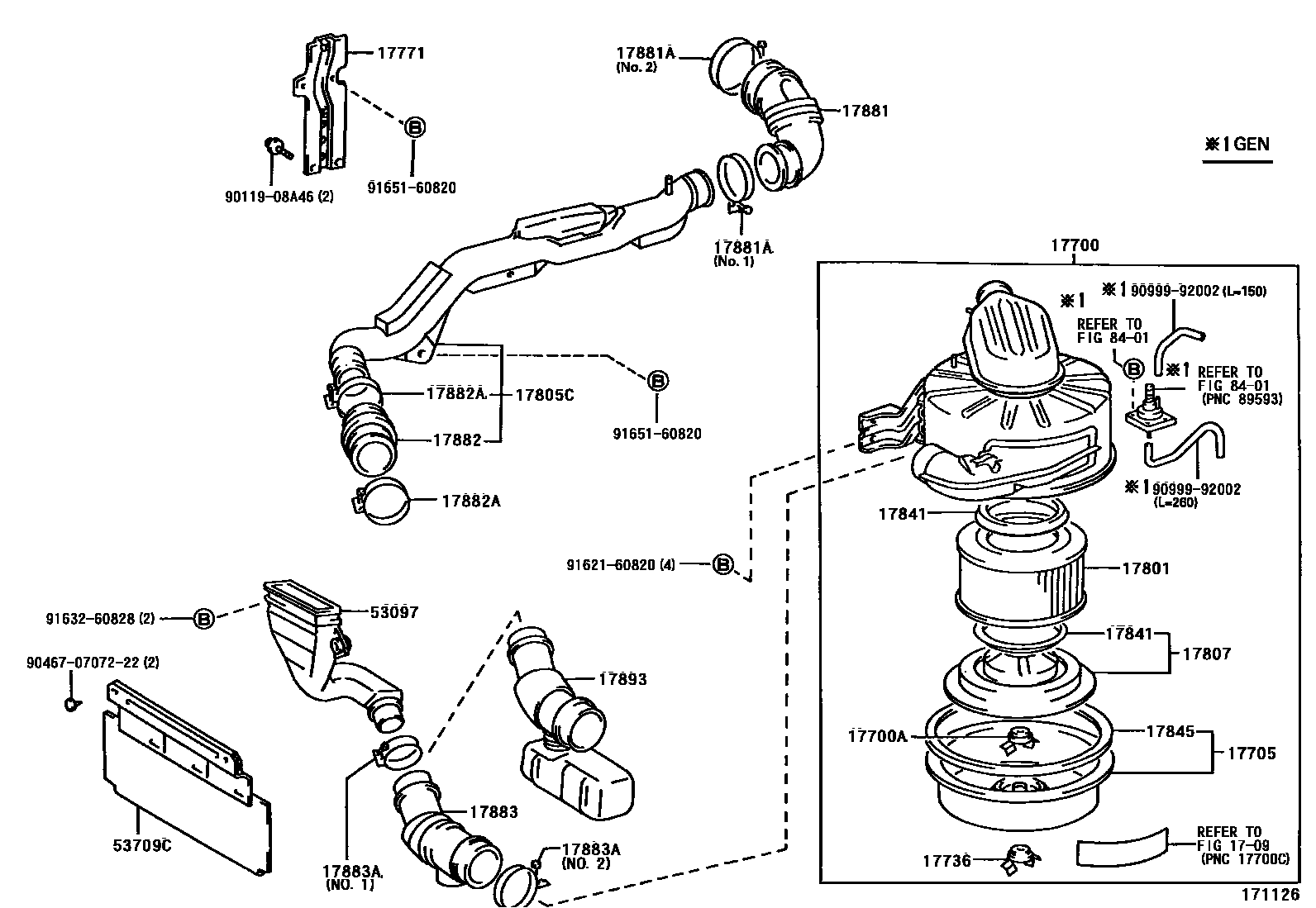

AIR CLEANER
1709
17700ANUT, WING(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
17736NUT, AIR CLEANER CASE
17771BRACKET, AIR CLEANER INLET DUCT
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17805CPIPE SUB-ASSY, AIR CLEANER, NO.1
17807PLATE SUB-ASSY, AIR CLEANER FILTER SET
17841GASKET, FILTER ELEMENT
ID=85
ID=77
17845GASKET, AIR CLEANER CAP
17881HOSE, AIR CLEANER, NO.1
MALAYSIA SPEC
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
AIRCLEANER PIPE SIDE
CONNECTOR SIDE
CARBURETOR SIDE
MALAYSIA SPEC,NO.1
NO.1
INTAKE MANIFOLD SIDE
MALAYSIA SPEC,NO.2
NO.2
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883HOSE, AIR CLEANER, NO.3
MALAYSIA SPEC
MALAYSIA SPEC
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
NO.1
INLET SIDE
MALAYSIA SPEC,NO.1
AIR CLEANER SIDE
NO.2
NO.1
MALAYSIA SPEC,NO.1 & NO.2
MALAYSIA SPEC,NO.1
NO.2
MALAYSIA SPEC,NO.2
17893RESONATOR, INTAKE AIR
MALAYSIA SPEC
53097INLET SUB-ASSY
W(SCHNORKEL),NO.1
W(SCHNORKEL),NO.2
MALAYSIA SPEC
8401
9011908A46
main90119-08A46
904670707222
main90467-0707222
9099992002
main90999-92002
9162160820
main91621-60820
9163260828
main91632-60828
9165160820
main91651-60820
28 parts on this diagram · 7 diagrams in section
