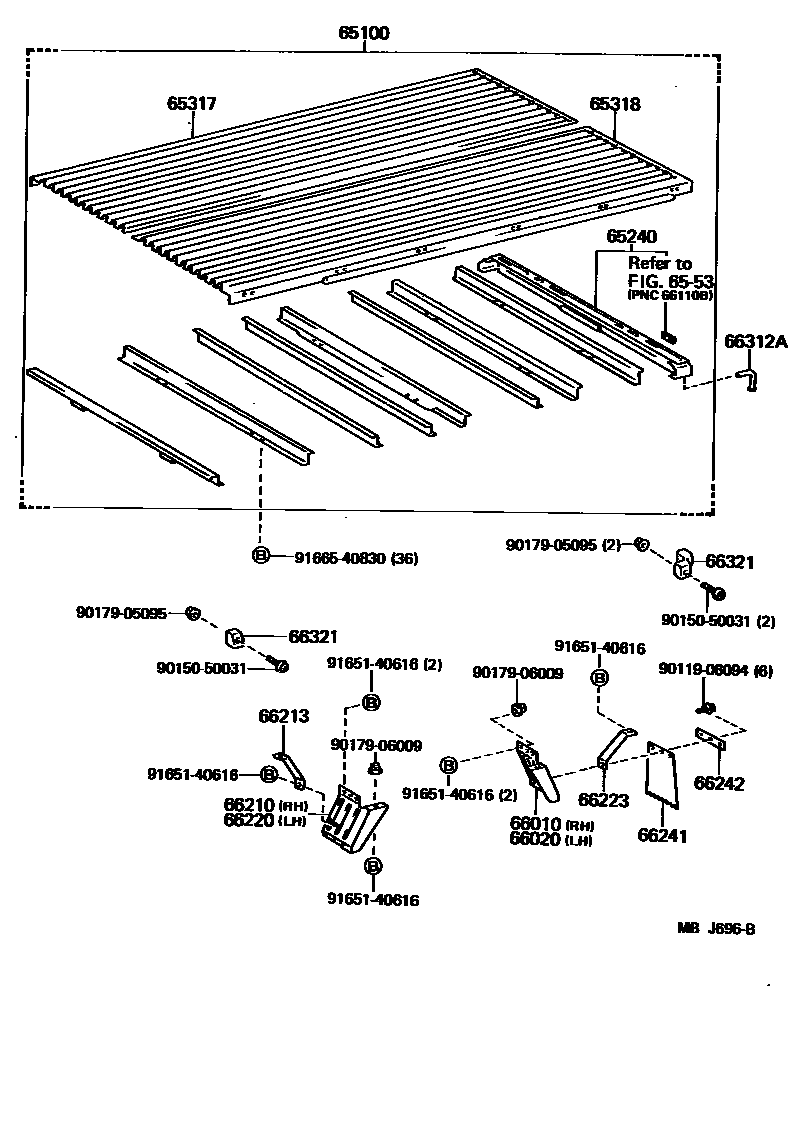

Toyota DYNA100 — REAR BODY FLOOR & FENDER
6553REAR BODY GUARD FRAME & TAIL GATE
66010FENDER ASSY, REAR BODY, REAR RH
66020FENDER ASSY, REAR BODY, REAR LH
66213STAY, REAR FENDER FRONT PLATE
66223STAY, REAR FENDER REAR PLATE
66241MUDGUARD, REAR
66242PLATE, REAR MUDGUARD SET RETAINER
66312AHOOK, ROPE, NO.2
9011906094
9015050031
9017905095
9017906009
9165140616
9166540830
21 parts on this diagram · 2 diagrams in section
REAR BODY FLOOR & FENDER for Toyota DYNA100
This section contains 23 genuine Toyota parts for the REAR BODY FLOOR & FENDER system of the Toyota DYNA100. Key components include: FLOOR ASSY, REAR BODY, CROSSMEMBER, REAR BODY FLOOR, TAIL, PANEL, FLOOR, CENTER, PANEL, FLOOR SIDE, RH, PANEL, FLOOR SIDE, LH.
