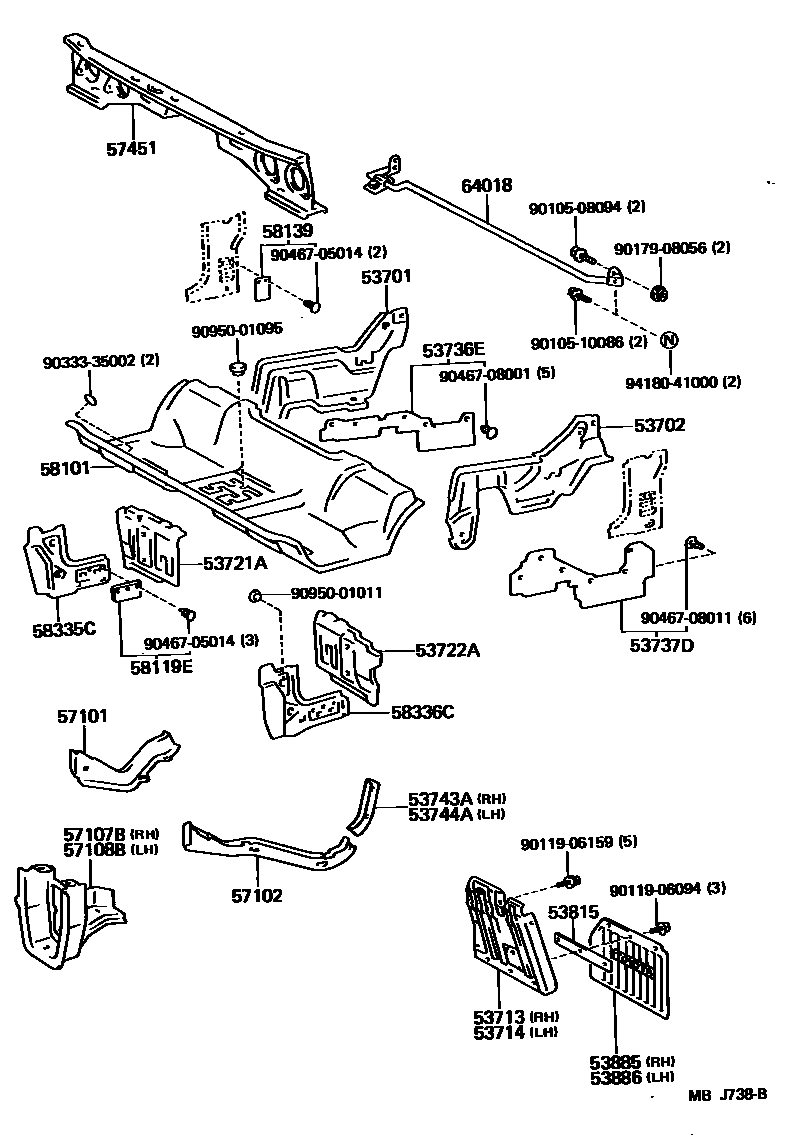

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53707-95011iYH8#198508-198708

sub53707-95012

main53707-95012iLH80198508-198708

53702APRON SUB-ASSY, FRONT FENDER, LH

main53708-95011iLH80,YH8#198508-198708

53713APRON, FENDER SIDE, RH

main53715-95A01iLH80,YH8#..T3198508-198708

main53715-95A02iLH80,YH8#..TW198508-198708

53714APRON, FENDER SIDE, LH

main53716-95A02iLH80,YH8#..T3198508-198708

main53716-95A03iLH80,YH8#..TW198508-198708

53721AAPRON, FRONT FENDER, NO.2 RH

main53721-95402iLH80,YH8#198508-198708

sub53721-37010

53722AAPRON, FRONT FENDER, NO.2 LH

main53722-95403iLH80,YH8#198508-198708

sub53722-37020

53736ESEAL, FRONT FENDER APRON, RH

main53736-95A01iLH80,YH8#198508-198708

53737DSEAL, FRONT FENDER APRON, LH

main53737-95A03iLH80,YH8#198508-198708

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-95A02iLH80,YH8#198508-198708

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-95A00iLH80,YH8#198508-198708

53815PLATE, MUDGUARD RUBBER SET, FRONT

main53887-95010iLH80,YH8#..T3198601-198708

53885MUDGUARD, FRONT RH

main53881-95A03iLH80,YH8#..T3198508-198708

main53881-95A04iLH80,YH8#..TW198508-198708

53886MUDGUARD, FRONT LH

main53881-95A03iLH80,YH8#..T3198508-198708

main53881-95A04iLH80,YH8#..TW198508-198708

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57011-95A87iLH80,YH8#198508-198708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57168-95A00iLH80,YH8#198508-198708

57107BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH

main57107-95A08iLH80,YH8#198508-198708

57108BBRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main57108-95A01iLH80,YH8#198508-198708

sub57108-95A03

57451MEMBER, FRONT FLOOR CROSS

main57408-95A01iLH80,YH8#..RHD198508-198708

main57408-95A02iLH80,YH8#..LHD198508-198708

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95A43iLH80,YH8#..RHD..5F198508-198708

sub58101-95A51

main58101-95A44iLH80..4FC198508-198708

sub58101-95A50

main58101-95A45iLH80,YH8#..LHD198508-198708

sub58101-95A48

main58101-95A47iLH80..EUR..IV198508-198708

FINLAND SPEC

sub58101-95A49

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400iLH80,YH8#198508-198708

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iLH80,YH8#..T3198508-198708

LH

main58139-95401iLH80,YH8#..T3198508-198708

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iLH80,YH8#198508-198708

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iLH80,YH8#198508-198708

64018BAR SUB-ASSY, BODY

main64018-95404iLH80,YH81..EUR198508-198608

main64018-95407iLH80,YH81..EUR198608-198708

main64018-95A02iLH80..T3..GEN..CBU198508-198708

IRELAND SPEC

main64018-95A03iLH80,YH81..ARL198508-198708

9010508094

main90105-08094

9010510086

main90105-10086

9011906094

main90119-06094

9011906159

main90119-06159

9017908056

main90179-08056

9033335002

main90333-35002

9046705014

main90467-05014

9046708001

main90467-08001

9046708011

main90467-08011

9095001011

main90950-01011

9095001095

main90950-01095

9418041000

main94180-41000

36 parts on this diagram · 3 diagrams in section
