SEAT & SEAT TRACK

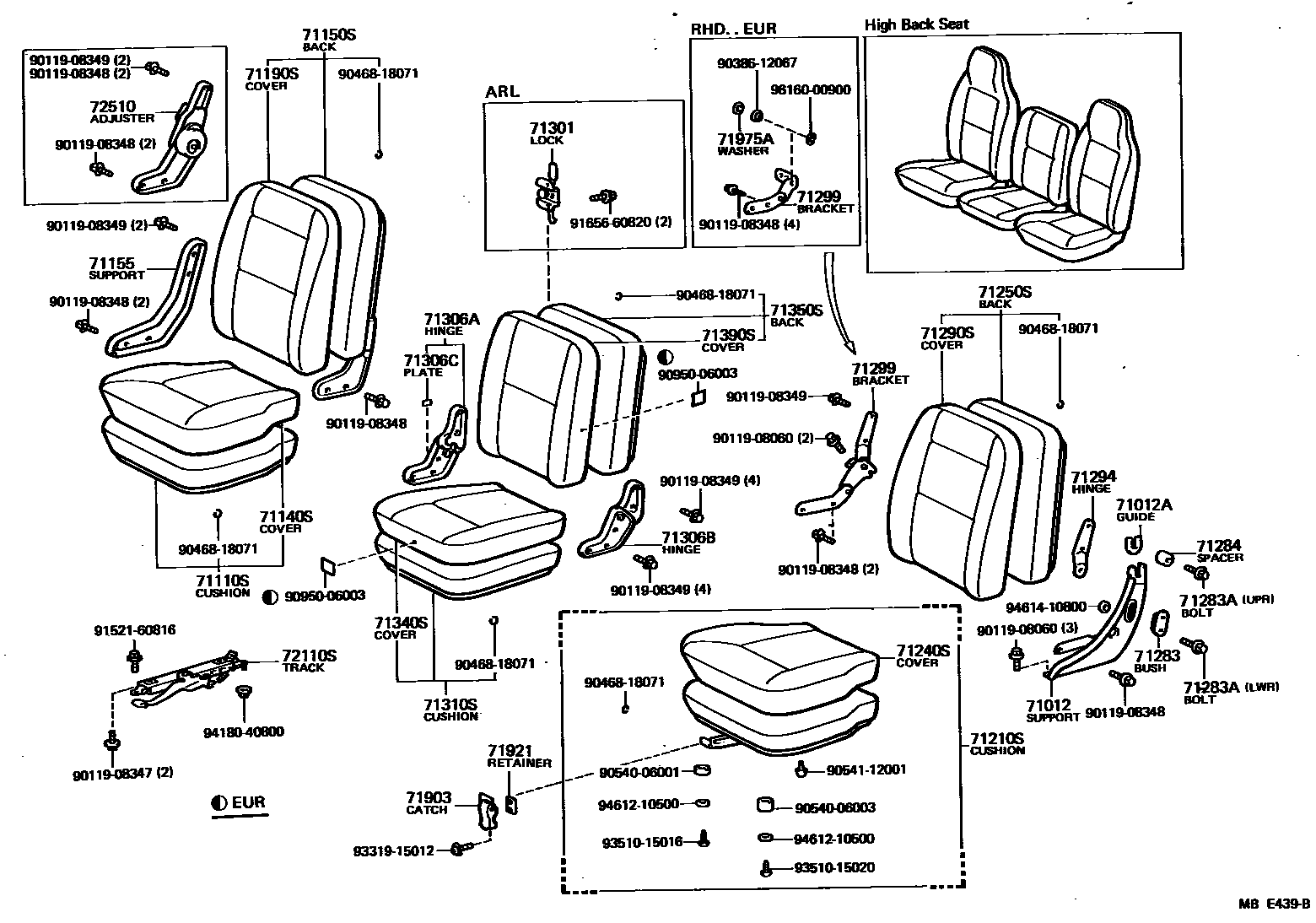

Parts diagram
71012SUPPORT SUB-ASSY, FRONT SEATBACK, LH
main71012-95A05i198211-198507
71012AGUIDE, FRONT SEATBACK SUPPORT, LH
main71297-95A00i198211-198507
71110SCUSHION ASSY, FRONT SEAT, RH
main71110-95A49i198211-198312
T=0.45
main71110-95A51i198211-198507
T=1.5
main71110-95A52i198211-198507
T=0.45
main71110-95A53i198211-198507
T=1.5
main71110-95A54i198211-198507
T=1.5
main71110-95A55i198211-198507
T=1.5
71140SCOVER, FRONT SEAT CUSHION, RH
main71140-95A37i198312-198507
T=0.45
main71140-95A39i198211-198507
T=1.5
main71140-95A40i198211-198507
T=1.5
main71140-95A41i198211-198507
T=1.5
71150SBACK ASSY, FRONT SEAT, RH
main71170-95A10i198312-198507
T=0.45,*HBS
main71170-95A12i198211-198507
T=0.45
main71170-95A13i198211-198507
T=0.45,W/ADJUSTER
main71170-95A14i198211-198507
T=0.45,*HBS,W/ADJUSTER
main71170-95A15i198211-198507
T=1.5
main71170-95A16i198211-198507
T=1.5,W/ADJUSTER
main71170-95A17i198211-198507
T=1.5,*HBS
main71170-95A18i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71170-95A19i198211-198507
T=1.5
main71170-95A20i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71170-95A21i198211-198507
T=1.5
main71170-95A22i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71170-95A24i198211-198507
NEW ZEALAND SPEC,T=1.5; T=1.5
71155SUPPORT, DRIVER SEATBACK, RH
main71191-95A05i198211-198507
71190SCOVER, FRONT SEAT BACK, RH
main71190-95A70i198211-198312
T=0.45,*HBS
main71190-95A72i198211-198507
T=0.45
main71190-95A73i198211-198507
T=0.45,W/ADJUSTER
main71190-95A74i198211-198507
T=0.45,*HBS,W/ADJUSTER
main71190-95A75i198211-198507
T=1.5
main71190-95A76i198211-198507
T=1.5,W/ADJUSTER
main71190-95A77i198211-198507
T=1.5,*HBS
main71190-95A78i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71190-95A79i198211-198507
T=1.5
main71190-95A80i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71190-95A81i198211-198507
T=1.5
main71190-95A82i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71190-95A84i198211-198507
NEW ZEALAND SPEC,T=1.5; T=1.5
71210SCUSHION ASSY, FRONT SEAT, LH
main71210-95A48i198312-198507
T=0.45
main71210-95A50i198211-198507
T=1.5
main71210-95A51i198211-198507
T=0.45
main71210-95A52i198211-198507
T=1.5
main71210-95A53i198211-198507
T=1.5
main71210-95A54i198211-198507
T=1.5
71240SCOVER, FRONT SEAT CUSHION, LH
main71240-95A51i198211-198312
T=0.45
main71240-95A53i198211-198507
T=1.5
main71240-95A54i198211-198507
T=0.45
main71240-95A55i198211-198507
T=1.5
main71240-95A56i198211-198507
T=1.5
main71240-95A57i198211-198507
T=1.5
71250SBACK ASSY, FRONT SEAT, LH
main71270-95A03i198211-198312
T=0.45,*HBS
main71270-95A05i198211-198507
T=0.45
main71270-95A06i198211-198507
T=1.5
main71270-95A07i198211-198507
T=1.5,*HBS
main71270-95A08i198211-198507
T=0.45
main71270-95A09i198211-198507
T=0.45,W/ADJUSTER
main71270-95A10i198211-198507
T=0.45,*HBS
main71270-95A11i198211-198507
T=0.45,*HBS,W/ADJUSTER
main71270-95A12i198211-198507
T=1.5
main71270-95A13i198211-198507
T=1.5,W/ADJUSTER
main71270-95A14i198211-198507
T=1.5,*HBS
main71270-95A15i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71270-95A16i198211-198507
T=1.5
main71270-95A17i198211-198507
T=1.5,*HBS
main71270-95A18i198211-198507
T=1.5
main71270-95A19i198211-198507
T=1.5,*HBS
71283BUSH, FRONT SEATBACK SUPPORT, LH
main71283-95A00i198211-198507
71283ABOLT, FRONT SEATBACK SUPPORT, LH
main71282-95A00i198211-198507
LWR
main71285-95A00i198211-198507
UPR
71284SPACER, FRONT SEATBACK SUPPORT, LH
main71284-95A00i198211-198507
71290SCOVER, FRONT SEATBACK, LH
main71290-95A16i198211-198312
T=0.45,*HBS
main71290-95A18i198211-198507
T=0.45
main71290-95A19i198211-198507
T=1.5
main71290-95A20i198211-198507
T=1.5,*HBS
main71290-95A21i198211-198507
T=0.45
main71290-95A22i198211-198507
T=0.45,W/ADJUSTER
main71290-95A23i198211-198507
T=0.45,*HBS
main71290-95A24i198211-198507
T=0.45,*HBS,W/ADJUSTER
main71290-95A25i198211-198507
T=1.5
main71290-95A26i198211-198507
T=1.5,W/ADJUSTER
main71290-95A27i198211-198507
T=1.5,*HBS
main71290-95A28i198211-198507
T=1.5,*HBS,W/ADJUSTER
main71290-95A33i198211-198507
T=1.5
main71290-95A34i198211-198507
T=1.5,*HBS
main71290-95A35i198211-198507
T=1.5
main71290-95A36i198211-198507
T=1.5,*HBS
71294HINGE, FRONT SEATBACK, LH
main71294-95A05i198211-198507
71299BRACKET, FRONT SEATBACK, LH
main71209-95A15i198211-198507
main71209-95A16i198211-198507
main71209-95A17i198211-198507
NEW ZEALAND SPEC
71301LOCK SUB-ASSY, CENTER SEAT
main71301-95A02i198211-198507
71306AHINGE SUB-ASSY, CENTER SEAT, RH
main71307-95A13i198211-198507
main71330-95A07i198312-198507
main71330-95A08i198211-198507
71306BHINGE SUB-ASSY, CENTER SEAT, LH
main71308-95A07i198211-198507
71306CPLATE, CENTER SEAT HINGE CAUTION
main71386-95A00i198211-198507
71310SCUSHION ASSY, FRONT SEAT, CENTER
main71310-95A34i198304-198312
main71310-95A35i198304-198507
main71310-95A37i198304-198507
main71310-95A38i198304-198507
71340SCOVER, FRONT SEAT CUSHION, CENTER
main71340-95A31i198312-198507
main71340-95A33i198304-198507
71350SBACK ASSY, FRONT SEAT, CENTER
main71350-95A44i198211-198304
main71350-95A45i198211-198507
main71350-95A47i198304-198507
71390SCOVER, FRONT SEATBACK, CENTER
main71390-95A37i198211-198304
main71390-95A39i198304-198507
71903CATCH SUB-ASSY, SEAT CUSHION, FRONT
main71901-95016i198211-198507
71921RETAINER, ENGINE SERVICE HOLE COVER CATCH
main71921-95700i198211-198507
71975AWASHER, PLATE
main71975-95A01i198211-198507
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
main72710-95A00i198211-198312
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72510-95A09i198211-198507
9011908060
main90119-08060
9011908347
main90119-08347
9011908348
main90119-08348
9011908349
main90119-08349
9038612067
main90386-12067
9046818071
main90468-18071
9054006001
main90540-06001
9054006003
main90540-06003
9054112001
main90541-12001
9095006003
main90950-06003
9152160816
main91521-60816
9165660820
main91656-60820
9331915012
main93319-15012
9351015016
main93510-15016
9351015020
main93510-15020
9418040800
main94180-40800
9461210500
main94612-10500
9461410800
main94614-10800
9616000900
main96160-00900

48 parts on this diagram · 3 diagrams in section
