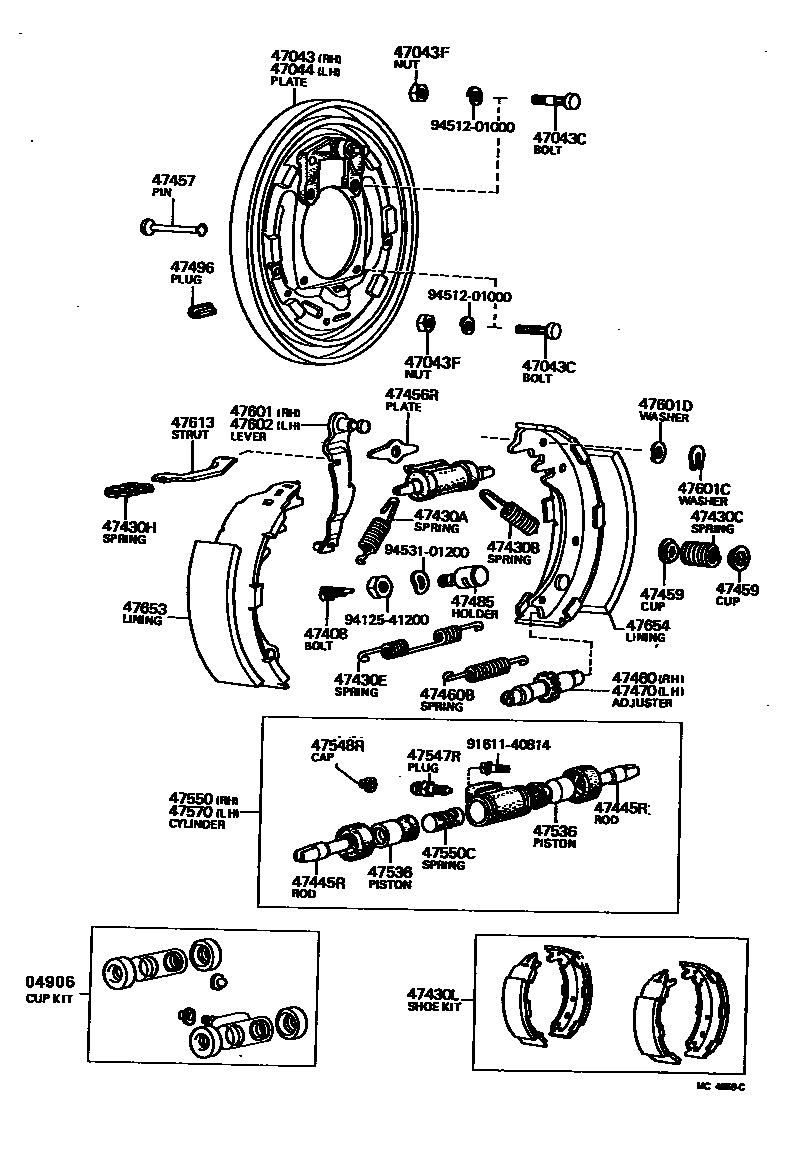

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30040iRH11..GEN,IDN197702-198012

ID=19.05

main04906-31010iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

ID=20.64

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35041iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47043-35050iLH11,20..LHD..(03S,06S)..GEN198107-198211

PORTUGAL SPEC

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×4iLH11,20,30,RH11,2#,3#,42197702-198211

*10-1.25PX37-18.5,*10-1.25PX38-16.5

main90114-10016×4iLH11,20,30,RH11,2#,3#,42197702-198211

*10-1.25PX41-18,*10-1.25PX38-15

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10172×8iLH11,20,30,RH11,2#,3#,42197702-198211

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35031iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47044-35040iLH11,20,30,RH11,20,25,3#..EUR197702-198112

FR DISC BRAKE

47408BOLT SUB-ASSY, RETRACTING SPRING CLAMP

main47408-30020×2iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLH11,20,30,RH11,2#,3#,42197702-198211

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLH11,20,30,RH11,2#,3#,42..ARL,EUR198112-198211

FR DISC BRAKE

main90506-26394×2iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20225×4iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main90501-20604×4iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-16343×2iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

main90506-26002×2iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012×2iLH11,20,30,RH11,2#,3#,42197702-198211

47430LSHOE KIT, REAR BRAKE

main04495-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main04495-35051iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

47445RROD, REAR WHEEL CYLINDER

main47538-35010×4iLH11,20,30,RH11,2#,3#,42197702-198211

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iLH11,20,30,RH11,2#,3#,42197702-198211

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLH11,20,30,RH11,2#,3#,42197702-198211

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011×8iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47449-30020×8iLH11,20,30,RH11,2#,3#,42..ARL,EUR198112-198211

FR DISC BRAKE

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47405-30010iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47405-30020iLH11,20,30,RH11,20,25,3#..EUR197702-198112

FR DISC BRAKE

47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)

main90506-23344×2iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47406-30010iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47406-30020iLH11,20,30,RH11,20,25,3#..EUR197702-198112

FR DISC BRAKE

47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

main47485-35010×2iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-35040×2iLH11,20,30,RH11,2#,3#,42197702-198211

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-30110×4iLH11,RH11..GEN,IDN198012-198211

OD=19.05

main47531-31011×4iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

OD=20.64

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iLH11,20,30,RH11,2#,3#,42197702-198211

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLH11,20,30,RH11,2#,3#,42197702-198211

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29175iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

ID=20.64

main47550-39125iLH11,RH11..GEN,IDN198012-198211

ID=19.05

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010×2iRH11..GEN,IDN197702-198012

OD=19.05

main47509-22010×2iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

OD=20.64

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29175iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

ID=20.64

main47550-39125iRH11..GEN,IDN197702-198012

ID=19.05

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iLH11,20,30,RH11,2#,3#,42197702-198211

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iLH11,20,30,RH11,2#,3#,42197702-198211

T=1.6

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iLH11,20,30,RH11,2#,3#,42197702-198211

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iLH11,20,30,RH11,2#,3#,42197702-198211

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35011iLH11,20,30,RH11,2#,3#,42197702-198211

RH

main47614-35011iLH11,20,30,RH11,2#,3#,42197702-198211

LH

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

9161140814

main91611-40814

9412541200

main94125-41200

9451201000

main94512-01000

9453101200

main94531-01200
