SEAT BELT
73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER
LIGHT BLUE,TRIM8#
SAUDI ARABIA OR OMAN SPEC,BEIGE,TRIM4#
BLACK,BLACK
main73130-89102-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
BLUE,TRIM8#
main73130-89102-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
BEIGE,TRIM4#
BLUE,TRIM8#
BEIGE,TRIM4#
SAUDI ARABIA OR OMAN SPEC,BLUE,TRIM8#
SAUDI ARABIA OR OMAN SPEC,BEIGE,TRIM4#
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
W/RETRACTOR,BLACK,BLACK
W/RETRACTOR,BLUE,BLUE
main73210-89106-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
W(*ELR),BEIGE,TRIM4#
W/O RETRACTOR,BLACK,BLACK
W/O RETRACTOR,BLUE,BLUE
W/O RETRACTOR,BEIGE,BEIGE
BLUE,TRIM8#; W/O(*ELR),BLUE,TRIM8#
BEIGE,TRIM4#; W/O(*ELR),BEIGE,TRIM4#
main73210-92301-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198809-199308
W(*ELR),BLUE,TRIM8#
main73210-92301-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198809-199308
W(*ELR),BEIGE,TRIM4#
73210BCAP (FOR FRONT SEAT OUTER BELT)
main73178-12010-04×2iYK110..LHD..4F..175..CBU; YK110..LHD..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..GEN;YK110..LHD..TW..CBU198804-198809
BLUE,TRIM8#
BLACK,BLACK
main73178-12010-15×2iYK110..LHD..4F..175..CBU; YK110..LHD..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..GEN;YK110..LHD..TW..CBU198804-198809
BEIGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
W/RETRACTOR,BLACK,BLACK
main73210-89106-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
W(*ELR),BLUE,TRIM8#
main73210-89106-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
W(*ELR),BEIGE,TRIM4#
W/O RETRACTOR,BLACK,BLACK
W/O RETRACTOR,BLUE,BLUE
W/O RETRACTOR,BEIGE,BEIGE
BLUE,TRIM8#; W/O(*ELR),BLUE,TRIM8#
BEIGE,TRIM4#; W/O(*ELR),BEIGE,TRIM4#
main73210-92301-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198809-199308
W(*ELR),BLUE,TRIM8#
main73210-92301-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198809-199308
W(*ELR),BEIGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
SAUDI ARABIA OR OMAN SPEC,LIGHT BLUE,TRIM8#
SAUDI ARABIA OR OMAN SPEC,BEIGE,TRIM4#
W/RETRACTOR,BLACK,BLACK
main73230-89105-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
SAUDI ARABIA OR OMAN SPEC OR W(*ELR),BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73230-89105-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198804-198809
SAUDI ARABIA OR OMAN SPEC OR W(*ELR),BEIGE,TRIM4#; W(*ELR),BEIGE,TRIM4#
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
W/O RETRACTOR,BLACK,BLACK
W/O RETRACTOR,BLUE,BLUE
W/O RETRACTOR,BEIGE,BEIGE
main73230-92303-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU199009-199308
BLUE,TRIM8#; W/O(*ELR),BLUE,TRIM8#
main73230-92303-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU199009-199308
BEIGE,TRIM4#; W/O(*ELR),BEIGE,TRIM4#
BLUE,TRIM8#
BEIGE,TRIM4#
main73230-92305-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198809-199009
SAUDI ARABIA OR OMAN SPEC OR W(*ELR),BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73230-92305-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU198809-199009
SAUDI ARABIA OR OMAN SPEC OR W(*ELR),BEIGE,TRIM4#; W(*ELR),BEIGE,TRIM4#
W/O RETRACTOR,BLACK,BLACK
W/O RETRACTOR,BLUE,BLUE
W/O RETRACTOR,BEIGE,BEIGE
W/RETRACTOR,BLACK,BLACK
W/RETRACTOR,BLUE,BLUE
W/RETRACTOR,BEIGE,BEIGE
73240BELT ASSY, FRONT SEAT INNER, LH
SAUDI ARABIA OR OMAN SPEC,LIGHT BLUE,TRIM8#
SAUDI ARABIA OR OMAN SPEC,BEIGE,TRIM4#
W/RETRACTOR,BLACK,BLACK
W(*ELR),BLUE,TRIM8#
W(*ELR),BEIGE,TRIM4#
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
W/O RETRACTOR,BLACK,BLACK
W/O RETRACTOR,BLUE,BLUE
W/O RETRACTOR,BEIGE,BEIGE
*SAA,BLUE,BLUE
*SAA,BEIGE,BEIGE
*SAA,BLUE,BLUE
*SAA,BEIGE,BEIGE
SAUDI ARABIA OR OMAN SPEC,BLUE,TRIM8#
SAUDI ARABIA OR OMAN SPEC,BEIGE,TRIM4#
main73230-92303-04iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU199009-199308
BLUE,TRIM8#; W/O(*ELR),BLUE,TRIM8#
main73230-92303-05iYK110..175..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..T1..GEN; YK110..LHD..4F..175..CBU199009-199308
BEIGE,TRIM4#; W/O(*ELR),BEIGE,TRIM4#
BLUE,TRIM8#
BEIGE,TRIM4#
W(*ELR),BLUE,TRIM8#
W(*ELR),BEIGE,TRIM4#
SAUDI ARABIA OR OMAN SPEC,BLUE,TRIM4#
SAUDI ARABIA OR OMAN SPEC,BEIGE,TRIM4#
W/O RETRACTOR,BLACK,BLACK
W/O RETRACTOR,BLUE,BLUE
W/O RETRACTOR,BEIGE,BEIGE
W/RETRACTOR,BLACK,BLACK
W/RETRACTOR,BLUE,BLUE
W/RETRACTOR,BEIGE,BEIGE

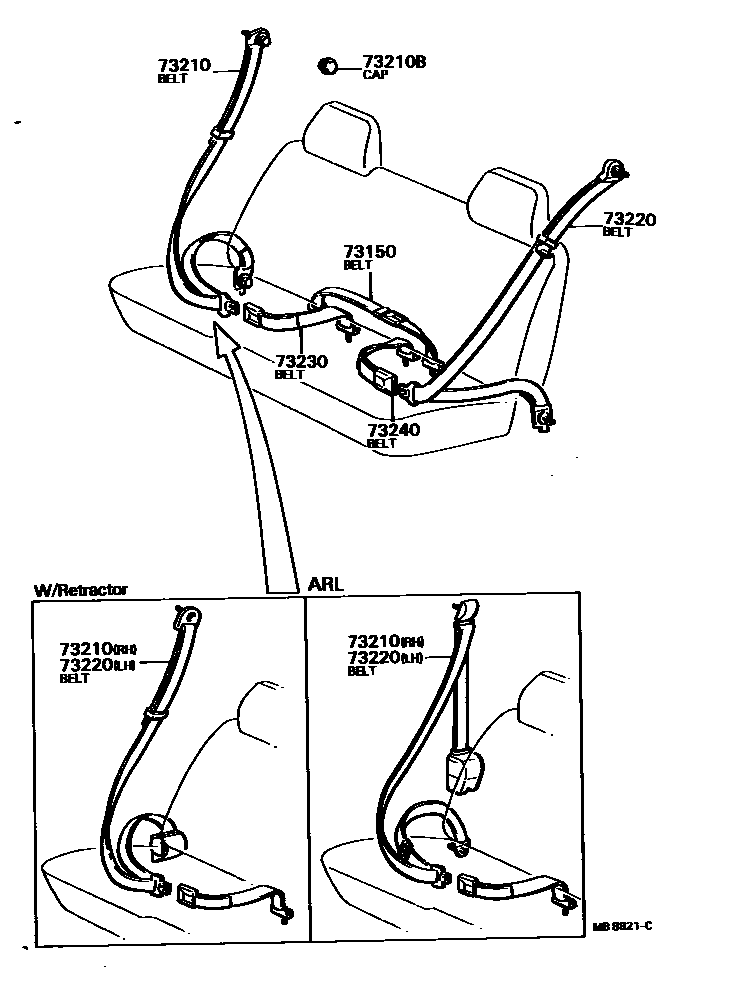

6 parts on this diagram · 1 diagram in section
