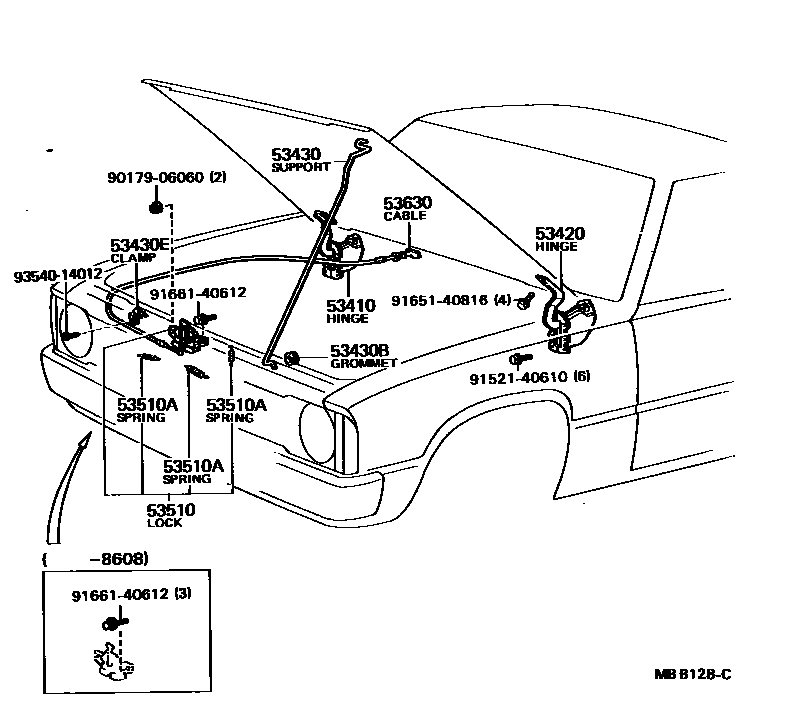

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-89104iRK110197903-198804

53420HINGE ASSY, HOOD, LH

main53420-89103iRK110197903-198804

53430SUPPORT ASSY, HOOD

main53441-89102iRK110197903-198008

main53441-89103iRK110198008-198804

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iRK110197903-198609

53430ECLAMP, HOOD SUPPORT

main53455-89101iRK110197903-198008

main53455-89102iRK110198008-198804

53510LOCK ASSY, HOOD

main53510-89110iRK110..RHD197903-198804

main53510-89111iYK110..LHD198804-200002

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09014iYK110..RHD198804-199308

OD=8.9

main90506-09017iRK110..LHD197903-198804

OD=8.9

main90506-09018iRK110..RHD197903-198007

OD=10.6

main90506-09019iRK110..LHD197903-198007

OD=10.6

main90506-09025iYK110..RHD198804-199308

OD=10.6

main90506-09026iYK110..LHD198804-200002

OD=10.6

main90506-18016iRK110197903-198804

OD=13.8

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-89106iRK110197903-198208

main53630-89108iRK110198208-198804

9017906060

main90179-06060

9152140610

main91521-40610

9165140816

main91651-40816

9166140612

main91661-40612

9354014012

main93540-14012

13 parts on this diagram · 1 diagram in section
