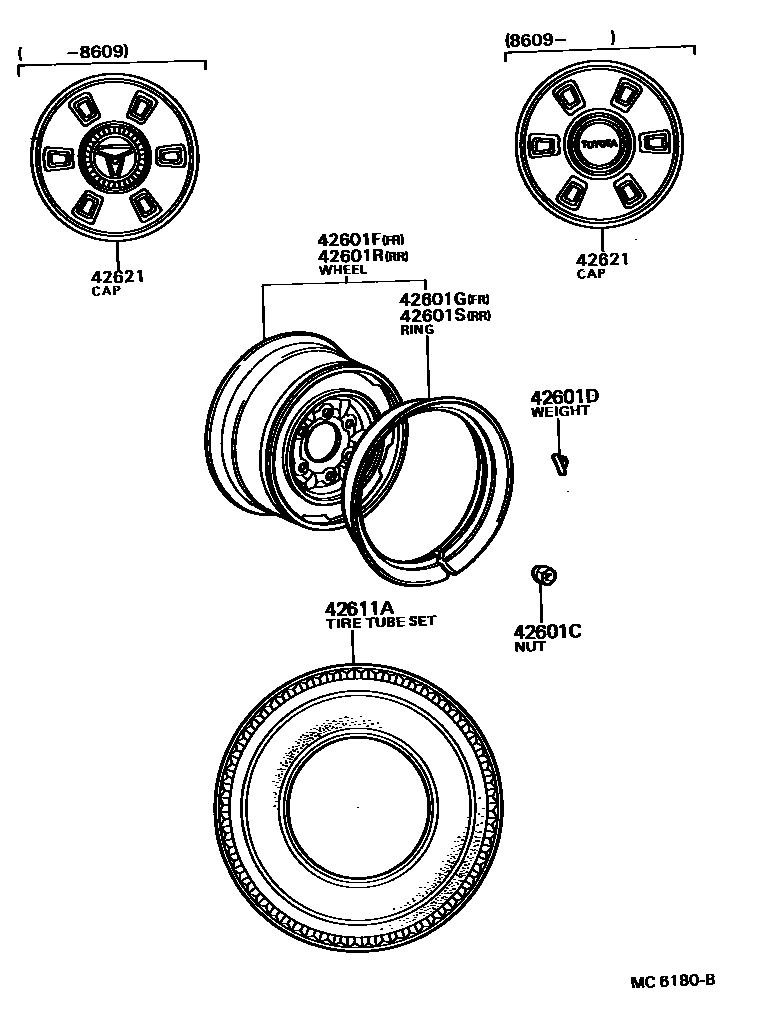

DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main90942-01004×24iRK110..TW;RK110..15T197903-198804

main90942-01012×12iRK110..175197903-198804

RH

main90942-01013×12iRK110..175197903-198804

LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045×33iRK110197903-198804

20G,20G

main90942-03047iYK110199308-199510

40G

main90942-03049iYK110199308-199510

60G

main90942-03050×33iRK110197903-198804

30G,30G

main90942-03051iYK110199308-199510

80G

main90942-03052iYK110199308-199510

50G

main90942-03053iYK110..TW;YK110..15T198804-199308

100G

main90942-03064iYK110199308-199510

70G

main90942-03079iYK110199510-200002

20G,T=10

main90942-03080iYK110199510-200002

30G,T=9.3

main90942-03081iYK110199510-200002

40G,T=9.3

main90942-03082iYK110199510-200002

50G,T=9.3

main90942-03083iYK110199510-200002

60G,T=9.3

main90942-03084iYK110199510-200002

70G,T=9.3

main90942-03085iYK110199510-200002

80G,T=9.3

main90942-03106iYK110199308-199510

10G

main90942-03107iYK110199510-200002

10G,T=8

42601FWHEEL, DISC (FOR FRONT)

main42610-35020×2iRK110..TW;RK110..15T197903-198804

5.50FX15

main42610-35020-03×2iYK110..TW;YK110..15T198804-199308

5.50FX15,GRAY,048 ,391 ,541 ,6A9 ,857

main42610-36140×2iRK110..175197903-198804

5.50FX15

main42610-36140-03×2iYK110..175198804-200002

5.50FX15,GRAY,048 ,391 ,541 ,6A9 ,857

42601GRING, DISC WHEEL SIDE (FOR FRONT)

main42613-35010×2iRK110197903-198804

42601RWHEEL, DISC (FOR REAR)

main42610-35020×2iRK110..TW;RK110..15T197903-198804

5.50FX15

main42610-35020-03×2iYK110..15T; YK110..TW198804-199308

5.50FX15,GRAY,048 ,391 ,541 ,6A9 ,857

main42610-36160×2iRK110..175197903-198804

6.00GSX15

main42610-36160-03×2iYK110..175198804-200002

6.00GSX15,GRAY,048 ,391 ,541 ,6A9 ,857

42601SRING, DISC WHEEL SIDE (FOR REAR)

main42613-35010×2iYK110..TW;YK110..15T198804-199308

main42613-35020×2iRK110..175197903-198804

42611ATIRE TUBE SET OR TUBELESS TIRE

main98061-70153×2iRK110197903-198804

FR,7.00-15-6P

main98061-70155×3iYK110..TW198804-199308

main98061-75155×2iRK110..15T197903-198804

RR,7.50-15-10P

main98061-75157×3iYK110..175198804-200002

42621CAP, WHEEL

main42621-35200×4iYK110198609-200002

main42621-36110×4iRK110197903-198609

8 parts on this diagram · 1 diagram in section
