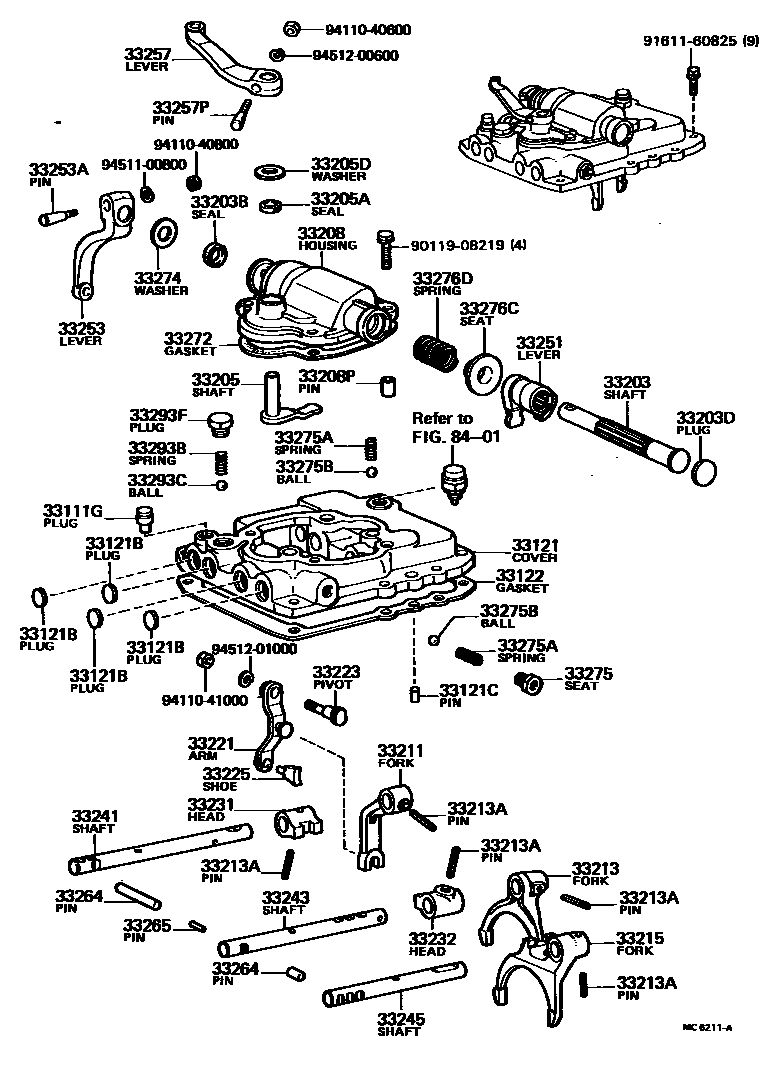

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03072iRK110197903-198101

main90930-03075iRK110198303-198609

main90930-03085iRK110198210-198303

33121COVER, MANUAL TRANSMISSION CASE

main33121-25030iRK110197903-198609

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-19003×4iRK110197903-198609

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214×2iRK110197903-198609

L=14,OD=10

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-25010iRK110197903-198609

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-35040iRK110197903-198609

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-20006iYK110..4H198804-199308

main90312-17001iRK110197903-198609

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main96412-12800iRK110197903-198609

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25010iRK110197903-198609

main33262-25040iYK110..4H198804-199308

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iRK110197903-198609

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13228iRK110197903-198609

sub90201-13012

main94612-11300iYK110..4H198804-199308

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-35020iYK110..4H198804-199308

main33271-25011iRK110197903-198609

33208PPIN, RING(FOR SHIFT LEVER SHAFT HOUSING)

main90253-11001×2iRK110197903-198609

33211FORK, REVERSE SHIFT

main33211-25010iRK110197903-198609

main33211-35030iYK110198609-200002

33213FORK, 1ST & 2ND SHIFT

main33212-25011iYK110..4H198804-199308

main33212-35032iYK110..4F,5F198701-200002

main33213-35011iRK110197903-198609

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×2iYK110199308-199603

main90254-05016×2iYK110199603-200002

33215FORK, 3RD & 4TH SHIFT

main33213-25010iRK110197903-198609

main33213-25020iYK110..4H198804-199308

sub33213-25021

main33213-35040iYK110..4F,5F198609-200002

33221ARM, REVERSE SHIFT

main33201-25010iRK110197903-198606

main33201-25011iRK110198606-198609

main33221-35030iYK110198609-200002

33223PIVOT, SHIFT ARM

main33223-35011iRK110197903-198606

main33223-35012iRK110198606-198609

33225SHOE, SHIFT ARM

main33225-35040iYK110198609-200002

main33225-36010iRK110197903-198606

main33225-36011iRK110198606-198609

33231HEAD, REVERSE SHIFT

main33231-25010iRK110197903-198609

main33231-35060iYK110..4F,5F198609-199208

main33231-35061iYK110..4F,5F199208-199308

main33231-35080iYK110199405-200002

33232HEAD, 1ST & 2ND SHIFT

main33231-25010iRK110197903-198609

33241SHAFT, REVERSE SHIFT FORK

main33241-25010iRK110197903-198609

main33244-25030iYK110..4H198804-199308

main33244-35040iYK110..4F,5F198804-199308

sub33244-60040

main33244-35070iYK110199405-200002

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-25010iRK110197903-198609

main33242-25030iYK110..4H198804-199308

main33242-35030iYK110..4F,5F198609-199208

main33242-35031iYK110..4F,5F199208-200002

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-25010iRK110197903-198609

main33243-25020iYK110..4H198804-199308

main33243-35070iYK110..4F,5F198609-199208

main33243-35071iYK110..4F,5F199208-200002

sub33243-60090

33251LEVER, SHIFT & SELECT

main33251-35030iRK110197903-198609

main33251-35090iYK110..4H198804-199308

sub33251-26050

33253LEVER, SHIFT OUTER, NO.1

main33253-35031iRK110..4H197903-198609

main33253-35040iRK110..4F197903-198609

main33253-35080iYK110..4H198804-199308

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iRK110198412-198609

main33281-30010iRK110197903-198412

main33282-57010iYK110..4H198804-199308

33257LEVER, SELECT OUTER

main33257-35031iRK110..4H197903-198609

main33257-35040iRK110..4F197903-198609

main33257-35080iYK110..4H198804-199308

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iRK110197903-198609

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90361-10003×2iYK110..4H198804-199308

L=13.6,OD=9.5

main90361-10008iRK110197903-198609

L=15,OD=9.5

main90361-10009iRK110197903-198609

L=38.9,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05029×2iYK110..4F,5F198804-200002

L=11.5,OD=4.8

main90250-05034iRK110197903-198409

main90361-05001iRK110198409-198609

L=13

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-25010iRK110197903-198609

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main90201-17048iRK110197903-198609

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008×4iYK110..4H198804-199308

OD=18

main90341-12055iRK110197903-198609

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14029×2iRK110197903-198609

sub90501-16115

main90501-14096×3iYK110..4H198804-198811

L=34.5

main90501-16117×3iYK110..4H198811-199308

33275BBALL, SHAFT DETENT

main90360-10003×2iRK110197903-198609

33276CSEAT, SELECT SPRING

main33276-25011iRK110197903-198609

33276DSPRING, COMPRESSION (FOR SELECT LEVER SHAFT)

main90501-26012iRK110197903-198609

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14029iRK110197903-198609

sub90501-16115

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iRK110197903-198609

33293FPLUG (FOR REVERSE RESTRICT BALL HOLDER)

main90341-18005iRK110197903-198609

8401

9011908219

main90119-08219

9161160825

main91611-60825

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451200600

main94512-00600

9451201000

main94512-01000

51 parts on this diagram · 5 diagrams in section
