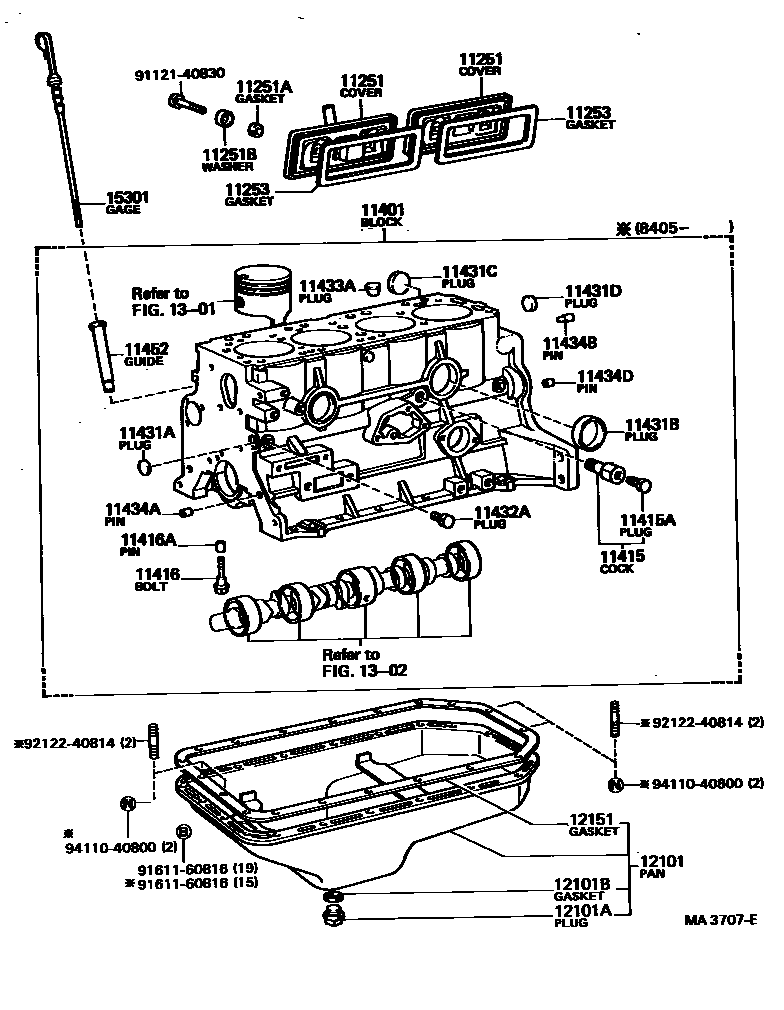

CYLINDER BLOCK
11251COVER, VALVE PUSH ROD
FR,W/PCV
FR,W/O PCV
RR
11251AGASKET(FOR VALVE PUSH ROD COVER BOLT)
11251BWASHER, SEAL(FOR VALVE PUSH ROD COVER BOLT)
11253GASKET, VALVE PUSH ROD COVER
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*12-1.25PX67-21
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=21
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=50
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=27
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
OD=30
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
L=11,OD=11,L=11,OD=11
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=18,OD=8
L=20,OD=10,L=20,OD=10
L=22,OD=10
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=11,OD=11,L=11,OD=11
11452GUIDE, OIL LEVEL GAGE
12151GASKET, OIL PAN
1301
1302
15301GAGE SUB-ASSY, OIL LEVEL
9112140830
main91121-40830
9161160816
main91611-60816
9212240814
main92122-40814
9411040800
main94110-40800
30 parts on this diagram · 2 diagrams in section
