SEAT & SEAT TRACK

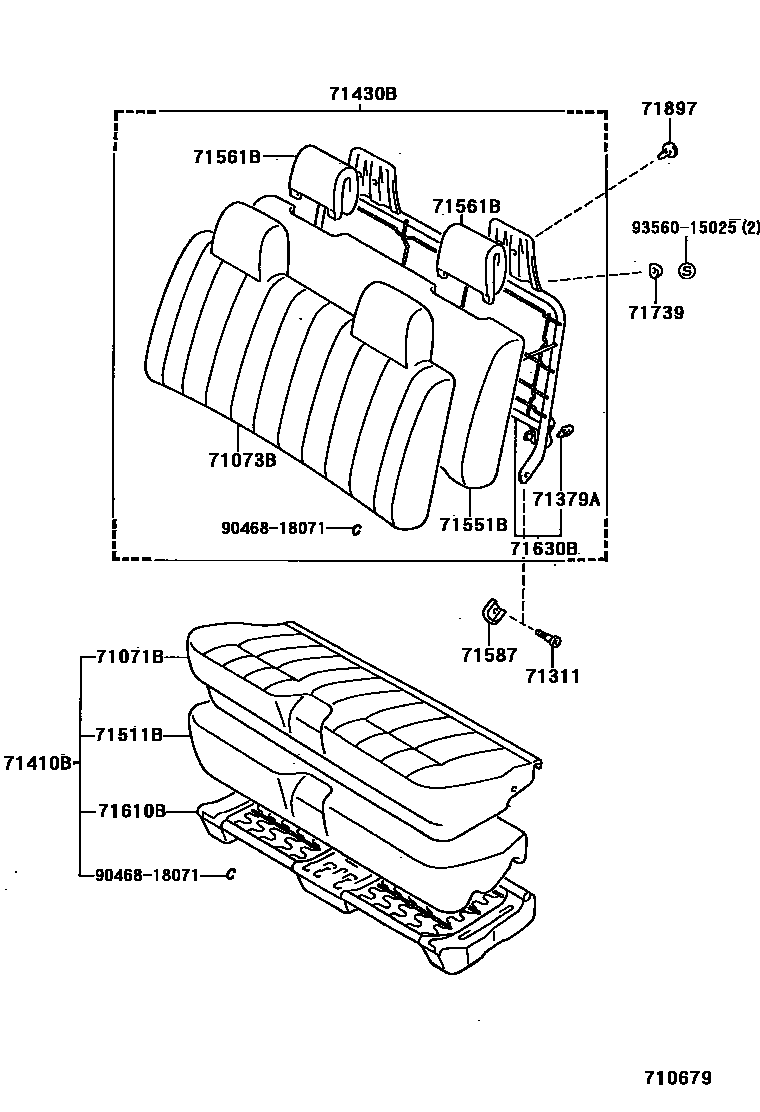

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-04010-B0i199106-199410
MEDIUM GRAY,TRIM1#
main71071-04010-E0i199001-199106
BROWN,TRIM4#
main71071-04010-J0i199001-199106
MEDIUM BLUE,TRIM8#
main71071-04010-J1i199110-199410
LIGHT BLUE,TRIM8#
main71071-04020-B0i199001-199101
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71071-04020-E0i199001-199101
DLX PACKAGE,BROWN,TRIM4#
main71071-04021-B1i199106-199410
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71071-04021-B2i199101-199106
DLX PACKAGE,MEDIUM GRAY,TRIM8#
main71071-04021-E1i199101-199106
DLX PACKAGE,BROWN,TRIM4#
main71071-04090-B2i199410-199702
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71071-04170-B1i199410-199702
MEDIUM GRAY,TRIM1#
main71071-35010-B0i198901-198911
MEDIUM GRAY,TRIM1#
main71071-35010-E0i198901-198911
BROWN,TRIM4#
main71071-35010-J0i198901-198911
MEDIUM BLUE,TRIM8#
main71071-35011-B0i198911-199001
MEDIUM GRAY,TRIM1#
main71071-35011-E0i198911-199001
BROWN,TRIM4#
main71071-35011-J0i198911-199001
MEDIUM BLUE,TRIM8#
main71071-35020-B0i198901-198911
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71071-35020-E0i198901-198911
DLX PACKAGE,BROWN,TRIM4#
main71071-35020-J0i198901-198911
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71071-35021-B3i198911-199001
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71071-35021-E3i198911-199001
DLX PACKAGE,BROWN,TRIM4#
main71071-35021-J3i198911-199001
DLX PACKAGE,MEDIUM BLUE,TRIM8#
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-04010-B0i199001-199106
MEDIUM GRAY,TRIM1#
main71073-04010-E0i199106-199110
BROWN,TRIM4#
main71073-04010-J0i199106-199110
MEDIUM BLUE,TRIM8#
main71073-04010-J1i199110-199210
LIGHT BLUE,TRIM8#
main71073-04020-B0i199001-199101
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71073-04020-E0i199001-199101
DLX PACKAGE,BROWN,TRIM4#
main71073-04020-J0i199001-199101
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71073-04021-B1i199106-199210
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71073-04021-B2i199101-199106
DLX PACKAGE,MEDIUM GRAY,TRIM8#
main71073-04021-E1i199106-199110
DLX PACKAGE,BROWN,TRIM4#
main71073-04040-B0i199210-199410
LIGHT GRAY,TRIM1#
main71073-04040-J0i199210-199410
LIGHT BLUE,TRIM8#
main71073-04050-B0i199210-199410
DLX PACKAGE,MEDIUM GRAY BLUE,TRIM1#
main71073-04050-B1i199210-199410
DLX PACKAGE,MEDIUM GRAY BLUE,TRIM8#
main71073-04121-B2i199410-199702
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71073-04141-B1i199410-199702
MEDIUM GRAY,TRIM1#
main71073-35010-B0i198901-198911
MEDIUM GRAY,TRIM1#
main71073-35010-E0i198901-198911
BROWN,TRIM4#
main71073-35010-J0i198901-198911
MEDIUM BLUE,TRIM8#
main71073-35011-B0i198911-199001
MEDIUM GRAY,TRIM1#
main71073-35011-E0i198911-199001
BROWN,TRIM4#
main71073-35011-J0i198911-199001
MEDUAM BLUE,TRIM8#
main71073-35020-B0i198901-198911
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71073-35020-E0i198901-198911
DLX PACKAGE,BROWN,TRIM4#
main71073-35020-J0i198901-198911
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71073-35021-B3i198911-199001
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71073-35021-E3i198911-199001
DLX PACKAGE,BROWN,TRIM4#
main71073-35021-J3i198911-199001
DLX PACKAGE,MEDIUM BLUE,TRIM8#
71311PIN, FRONT SEAT HINGE
main71311-89105×2i198901-199106
71379ASTOPPER, FRONT SEAT VERTICAL HANDLE
main71379-89101×2i199110-199702
71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
main71410-04010-B0i198901-198911
MEDIUM GRAY,TRIM1#
main71410-04010-E0i198901-198911
BROWN,TRIM4#
main71410-04010-J0i198901-198911
MEDIUM BLUE,TRIM8#
main71410-04011-B0i198911-199001
MEDIUM GRAY,TRIM1#
main71410-04011-E0i198911-199001
BROWN,TRIM4#
main71410-04011-J0i198911-199001
MEDIUM BLUE,TRIM8#
main71410-04020-B0i198901-198911
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71410-04020-E0i198901-198911
DLX PACKAGE,BROWN,TRIM4#
main71410-04020-J0i198901-198911
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71410-04021-B2i198911-199001
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71410-04021-E2i198911-199001
DLX PACKAGE,BROWN,TRIM4#
main71410-04021-J2i198911-199001
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71410-04040-B0i199001-199106
MEDIUM GRAY,TRIM1#
main71410-04040-E0i199106-199110
BROWN,TRIM4#
main71410-04040-J0i199001-199106
MEDIUM BLUE,TRIM8#
main71410-04040-J1i199110-199410
LIGHT BLUE,TRIM8#
main71410-04050-B0i199001-199101
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71410-04050-E0i199001-199101
DLX PACKAGE,BROWN,TRIM4#
main71410-04050-J0i199001-199101
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71410-04051-B1i199101-199106
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71410-04051-B2i199101-199106
DLX PACKAGE,MEDIUM GRAY,TRIM8#
main71410-04051-E1i199101-199106
DLX PACKAGE,BROWN,TRIM4#
main71410-04120-B1i199410-199702
MEDIUM GRAY,TRIM1#
main71410-04190-B2i199410-199702
DLX PACKAGE,MEDIUM GRAY,TRIM1#
71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)
main71430-04010-B0i198901-198911
MEDIUM GRAY,TRIM1#
main71430-04010-E0i198901-198911
BROWN,TRIM4#
main71430-04010-J0i198901-198911
MEDIUM BLUE,TRIM8#
main71430-04011-B0i198911-199001
MEDIUM GRAY,TRIM1#
main71430-04011-E0i198911-199001
BROWN,TRIM4#
main71430-04011-J0i198911-199001
MEDIUM BLUE,TRIM8#
main71430-04020-B0i198901-198911
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71430-04020-E0i198901-198911
DLX PACKAGE,BROWN,TRIM4#
main71430-04020-J0i198901-198911
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71430-04021-B2i198911-199001
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71430-04021-E2i198911-199001
DLX PACKAGE,BROWN,TRIM4#
main71430-04021-J2i198911-199001
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71430-04040-B0i199001-199103
MEDIUM GRAY,TRIM1#
main71430-04040-E0i199001-199103
GROWN,TRIM4#
main71430-04040-J0i199001-199103
MEDIUM BLUE,TRIM8#
main71430-04050-B0i199001-199101
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71430-04050-E0i199001-199101
DLX PACKAGE,BROWN,TRIM4#
main71430-04050-J0i199001-199101
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main71430-04051-B1i199106-199210
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main71430-04051-B2i199101-199106
DLX PACKAGE,MEDIUM GRAY,TRIM8#
main71430-04051-E1i199101-199106
DLX PACKAGE,BROWN,TRIM4#
main71430-04070-B0i199103-199106
MEDIUM GRAY,TRIM1#
main71430-04070-E0i199103-199106
BROWN,TRIM4#
main71430-04070-J0i199106-199110
MEDIUM BLUE,TRIM8#
main71430-04070-J1i199110-199210
LIGHT BLUE,TRIM8#
main71430-04090-B0i199210-199410
LIGHT GRAY,TRIM1#
main71430-04090-J0i199210-199410
LIGHT BLUE,TRIM8#
main71430-04130-B0i199210-199410
DLX PACKAGE,MEDIUM GRAY BLUE,TRIM1#
main71430-04130-B1i199210-199410
DLX PACKAGE,MEDIUM GRAY BLUE,TRIM8#
main71430-04180-B1i199410-199702
MEDIUM GRAY,TRIM1#
main71430-04190-B2i199410-199702
DLX PACKAGE,MEDIUM GRAY,TRIM1#
71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71511-04010i199106-199702
main71511-89149i198901-199001
71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)
main71551-04010i199001-199106
main71551-89144i198901-199001
71561BPAD, FRONT SEATBACK, UPPER
main71561-04010×2i199001-199012
main71561-04030×2i199012-199106
main71561-04060×2i199210-199702
main71561-89114×2i198901-199001
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-89103×2i198901-199106
71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71610-89145i198901-199106
71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)
main71630-35020i199110-199210
main71630-35030i199210-199702
main71630-89146i199106-199110
71739CUSHION, SEAT SUPPORT
main71739-35010×2i199106-199702
W(SEPALATE SEAT)
main71739-89112×2i198901-199106
71897HOOK, SEAT COVER SIDE
main71897-89102-B1×4i198901-199106
GRAY,TRIM1#
main71897-89102-E0×4i199106-199110
LIGHT BROWN,TRIM4#
main71897-89102-J1×4i198901-199106
BLUE,TRIM8#
9046818071
main90468-18071
9356015025
main93560-15025

16 parts on this diagram · 3 diagrams in section
