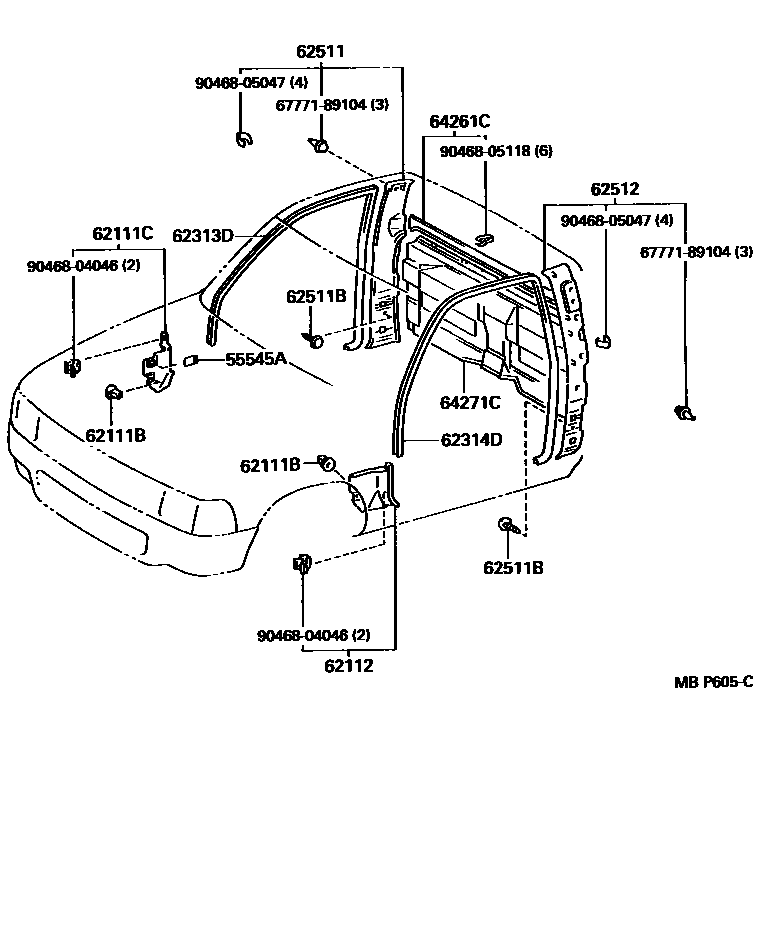

INSIDE TRIM BOARD
55545ACOVER, FUSE BOX OPENING
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
62112BOARD, COWL SIDE TRIM, LH
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
62313DTRIM, FRONT DOOR OPENING, RH
GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
62314DTRIM, FRONT DOOR OPENING, LH
GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
62511BOARD, QUARTER INSIDE TRIM, RH
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62512BOARD, QUARTER INSIDE TRIM, LH
64261CGARNISH, BACK PANEL, UPPER
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
W(SEPARATE SEAT),BROWN,TRIM4#
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
MEDIUM BLUE,TRIM8#
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub64261-89101
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub64261-89101
64271CTRIM, BACK PANEL
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
9046804046
main90468-04046
9046805047
main90468-05047
9046805118
main90468-05118
15 parts on this diagram · 1 diagram in section
