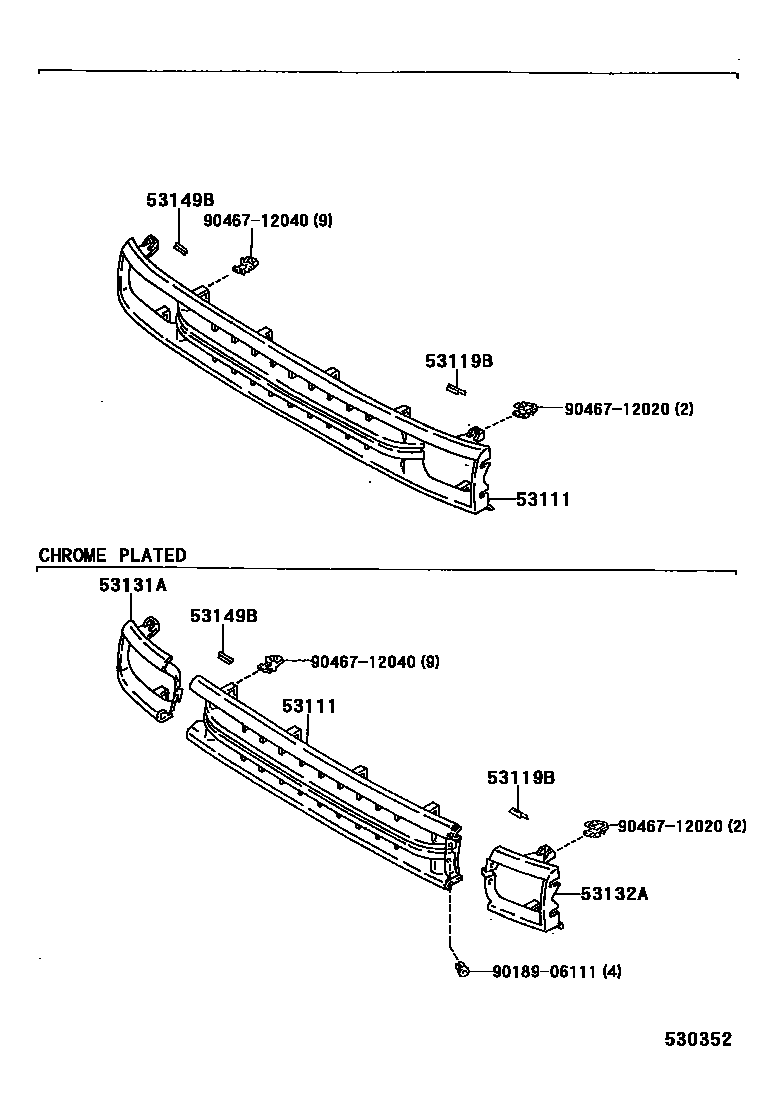

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-35050iLN85,YN85..VWP198901-199110

VW BRAND

main53111-35060iLN85,YN85..VWP199110-199410

main53111-35110iLN85,YN85..VWP..LHD199110-199410

*FRG

main53111-35250iLN85..VWP199410-199702

main53111-89134iLN85,YN85..VWP198901-199110

53119BPROTECTOR, RADIATOR GRILLE

main53119-89105iLN85,YN85..VWP198901-199110

53131ADOOR, HEADLAMP, RH

main53131-35040iLN85,YN85..VWP..LHD199110-199410

*FRG

main53131-89122iLN85,YN85..VWP198901-199110

53132ADOOR, HEADLAMP, LH

main53132-35040iLN85,YN85..VWP..LHD199110-199410

*FRG

main53132-89121iLN85,YN85..VWP198901-199110

53149BPROTECTOR, HEADLAMP DOOR, NO.3

main53149-89101iLN85,YN85..VWP198901-199110

9018906111

main90189-06111

9046712020

main90467-12020

9046712040

main90467-12040

8 parts on this diagram · 2 diagrams in section
