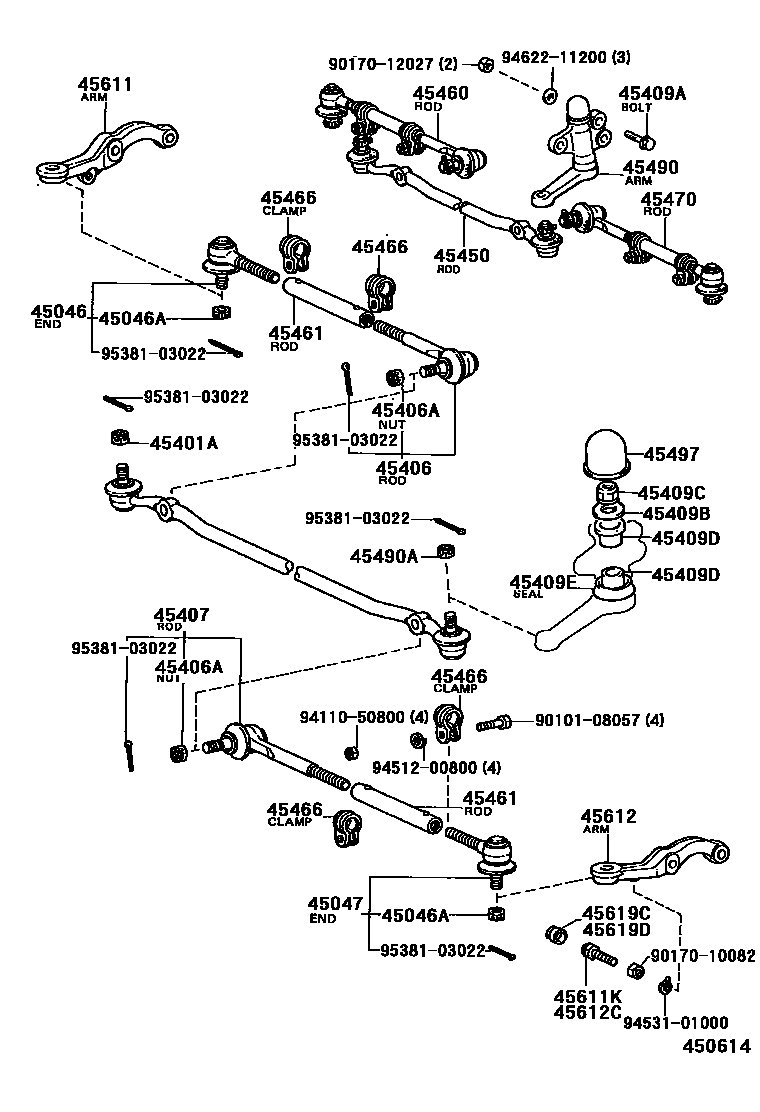

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45401ARM SUB-ASSY, PITMAN
W(POWER STEERING)
45401ANUT, CASTLE(FOR PITMAN ARM)
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
*12-1.25PX95-25
*12-1.25PX35-26
45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
45409CNUT(FOR IDLER ARM SUPPORT)
45409DBUSH(FOR IDLER ARM)
45409ESEAL, DUST(FOR IDLER ARM SUPPORT)
45450ROD ASSY, STEERING RELAY
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45470ROD ASSY, TIE, LH
45490ARM ASSY, STEERING IDLER
45490ANUT, CASTLE(FOR IDLER ARM)
45497CAP, IDLER ARM BRACKET
45611ARM, STEERING KNUCKLE, RH
45611KBOLT(FOR STEERING KNUCKLE STOPPER RH)
45612ARM, STEERING KNUCKLE, LH
45612CBOLT(FOR STEERING KNUCKLE STOPPER LH)
45619CCOVER, STEERING KNUCKLE STOPPER, RH
45619DCOVER, STEERING KNUCKLE STOPPER, LH
9010108057
main90101-08057
9017010082
main90170-10082
9017012027
main90170-12027
9411050800
main94110-50800
9451200800
main94512-00800
9453101000
main94531-01000
9462211200
main94622-11200
9538103022
main95381-03022
35 parts on this diagram · 4 diagrams in section
