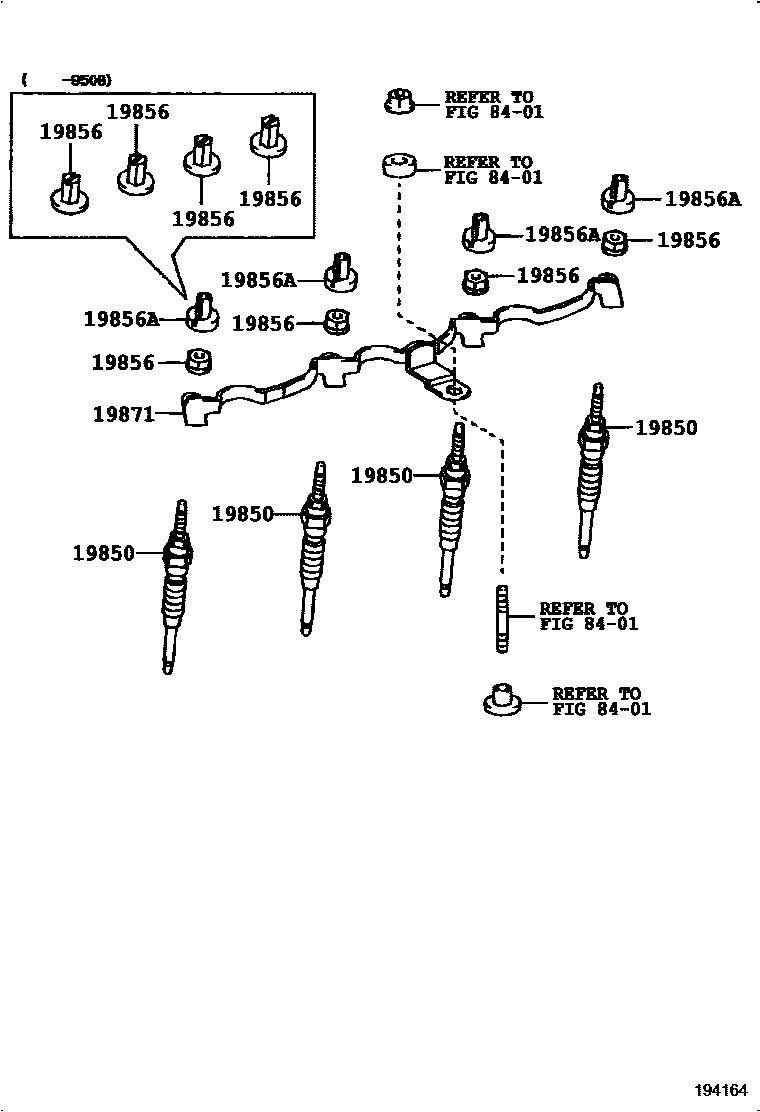

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-54090i2L..LN85..VWP198901-199702

*BV-GV=12V-11V

19856NUT, CONNECTING(FOR GLOW PLUG)

main90179-04019i2L..LN85..VWP198901-199508

main90179-04030i2L..LN85..VWP199508-199702

19856AGROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)

main90189-04024i2L..LN85..VWP199508-199702

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i2L..LN85..VWP198901-199702

8401

5 parts on this diagram · 3 diagrams in section
