V-BELT

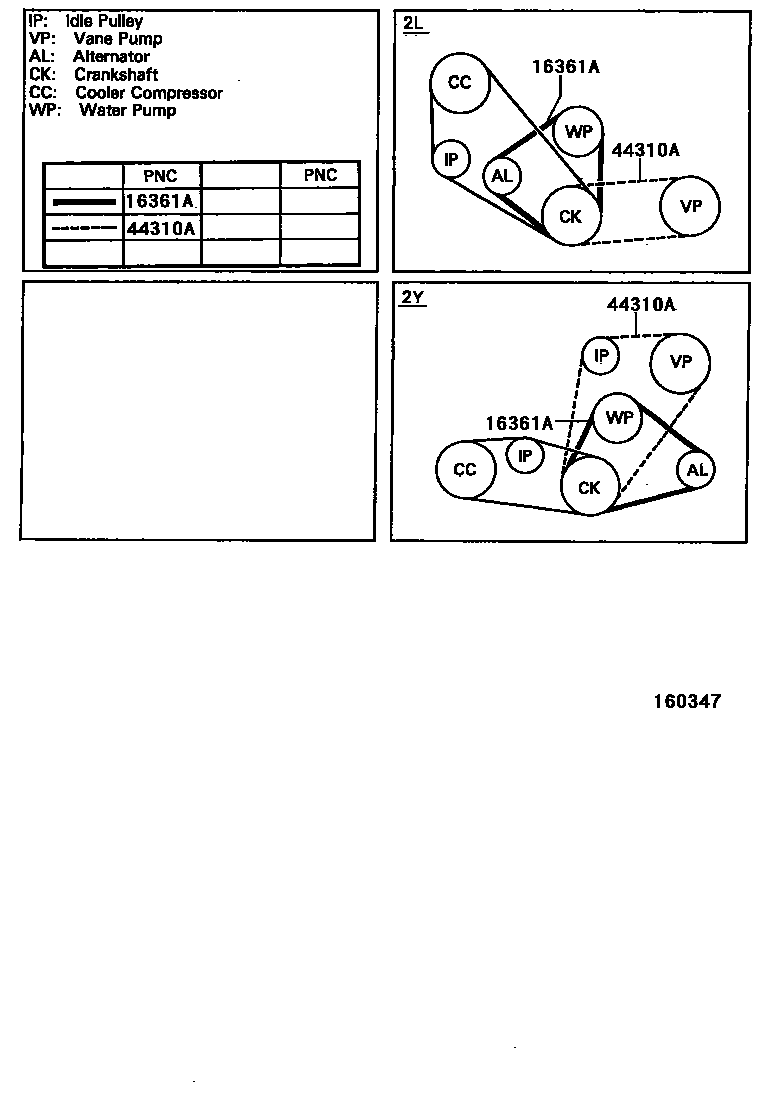

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02209i198901-199604

main90916-02211i199604-199702

main99364-50830i199101-199103

main99364-50840i199101-199103

ALTERNATOR=45A

main99364-70830i199010-199101

main99364-80830i199110-199410

ALTERNATOR=55A

main99364-80840i199110-199410

44310ABELT, V(FOR VANE PUMP)

main99332-00830i199210-199702

main99332-10865i198901-199702

2 parts on this diagram · 1 diagram in section
