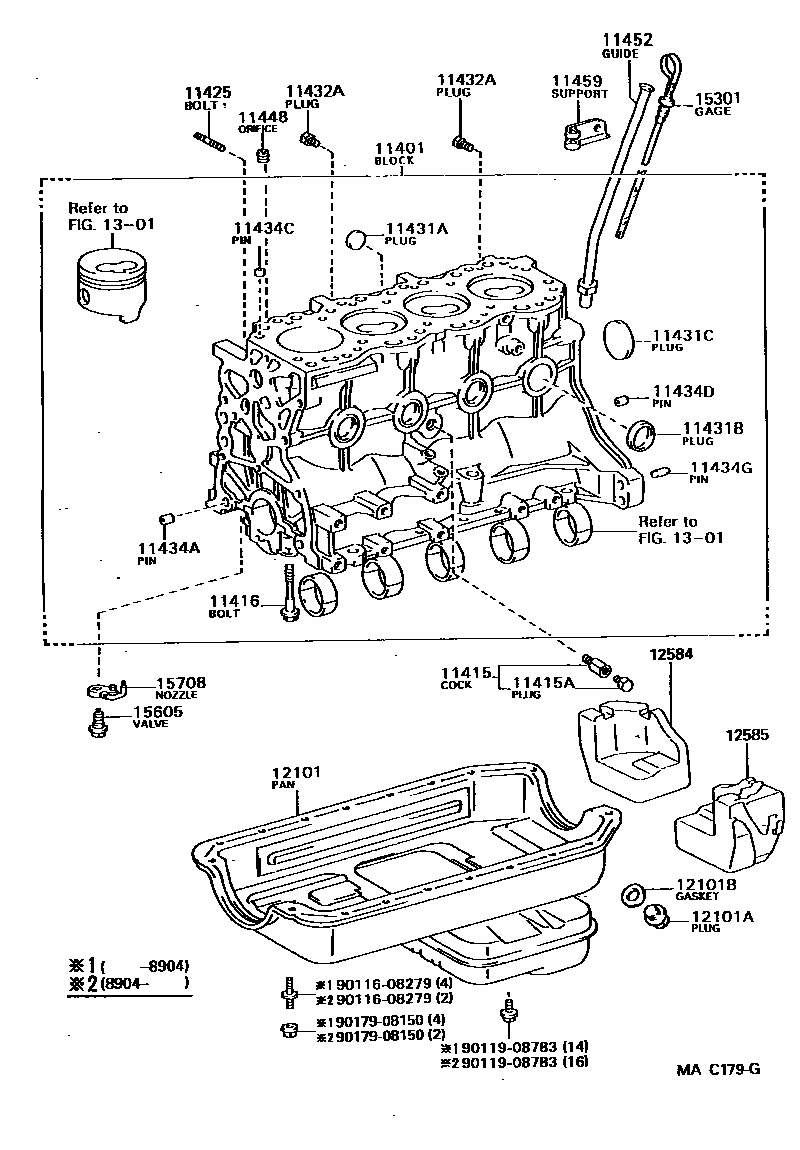

CYLINDER BLOCK
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11425BOLT, STUD(FOR OIL FILTER)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
L=11,OD=11
L=8,OD=11
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=7,OD=14.5
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=11,OD=11
L=8,OD=11
11434GPIN, STRAIGHT(FOR END PLATE)
11448ORIFICE, CYLINDER BLOCK OIL
11452GUIDE, OIL LEVEL GAGE
11459SUPPORT, OIL LEVEL GAGE GUIDE
12584INSULATOR, CYLINDER BROCK, NO.4
sub12584-54080
12585INSULATOR, CYLINDER BROCK, NO.5
sub12585-54080
1301
15301GAGE SUB-ASSY, OIL LEVEL
15605VALVE SUB-ASSY, OIL CHECK
9011608279
main90116-08279
9011908783
main90119-08783
9017908150
main90179-08150
28 parts on this diagram · 2 diagrams in section
