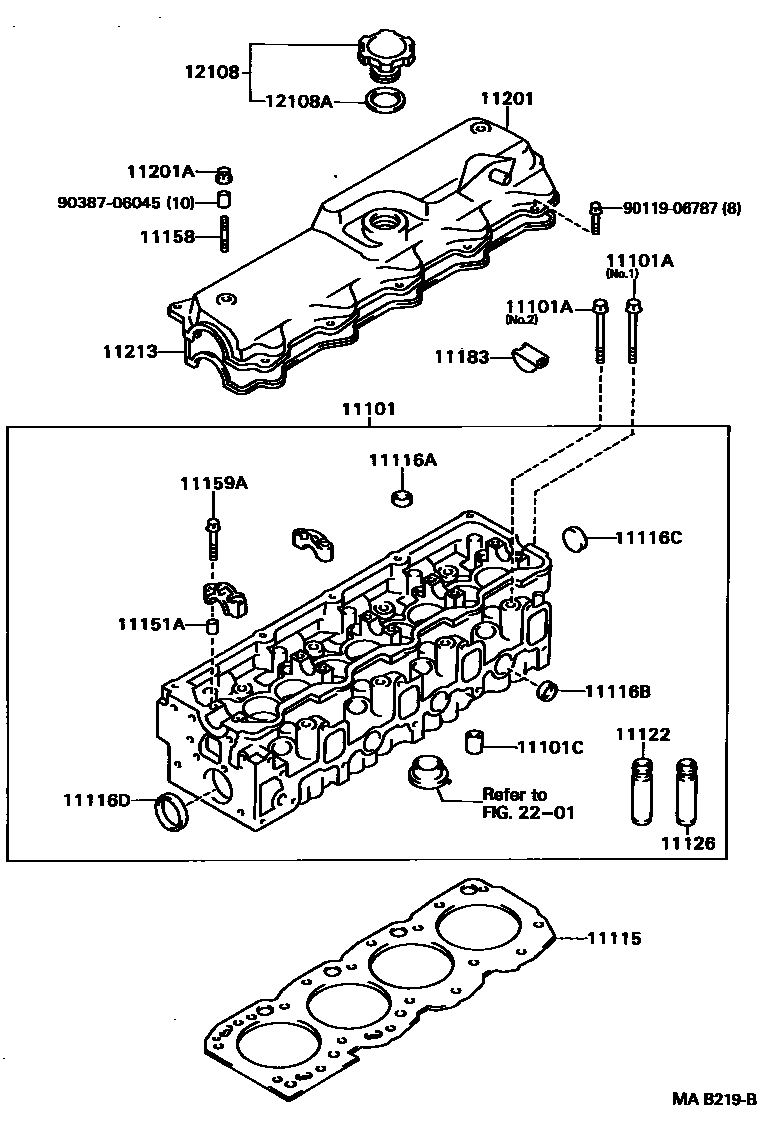

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1
NO.2
11101CTUBE(FOR CYLINDER HEAD)
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
S=9 & 9,L=26
S=9 & 9,L=25
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
2201
9011906787
main90119-06787
9038706045
main90387-06045
22 parts on this diagram · 2 diagrams in section
