LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69055BCYLINDER & KEY SET, BACK DOOR LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69503AKEY, BLANK
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),INSIDE CUT TYPE
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),INSIDE CUT TYPE
MASTER KEY,W(*68),OUTSIDE CUT TYPE
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),INSIDE CUT TYPE
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),INSIDE CUT TYPE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
TURKEY SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
89745CBATTERY, TRANSMITTER
CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
CR2032
CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
CR2450,TURKEY SPEC (EURO 6 REGULATION)
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
CR2450,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
CR2450,TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD
CR2450,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE
CR2450,TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD
CR2450
CR2450,ISRAEL SPEC (EURO 6 REGULATION)
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
CR2450,ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
89751ACOVER, TRANSMITTER HOUSING
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD
TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD
ISRAEL SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
89752ACASE, TRANSMITTER HOUSING
ISRAEL SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)

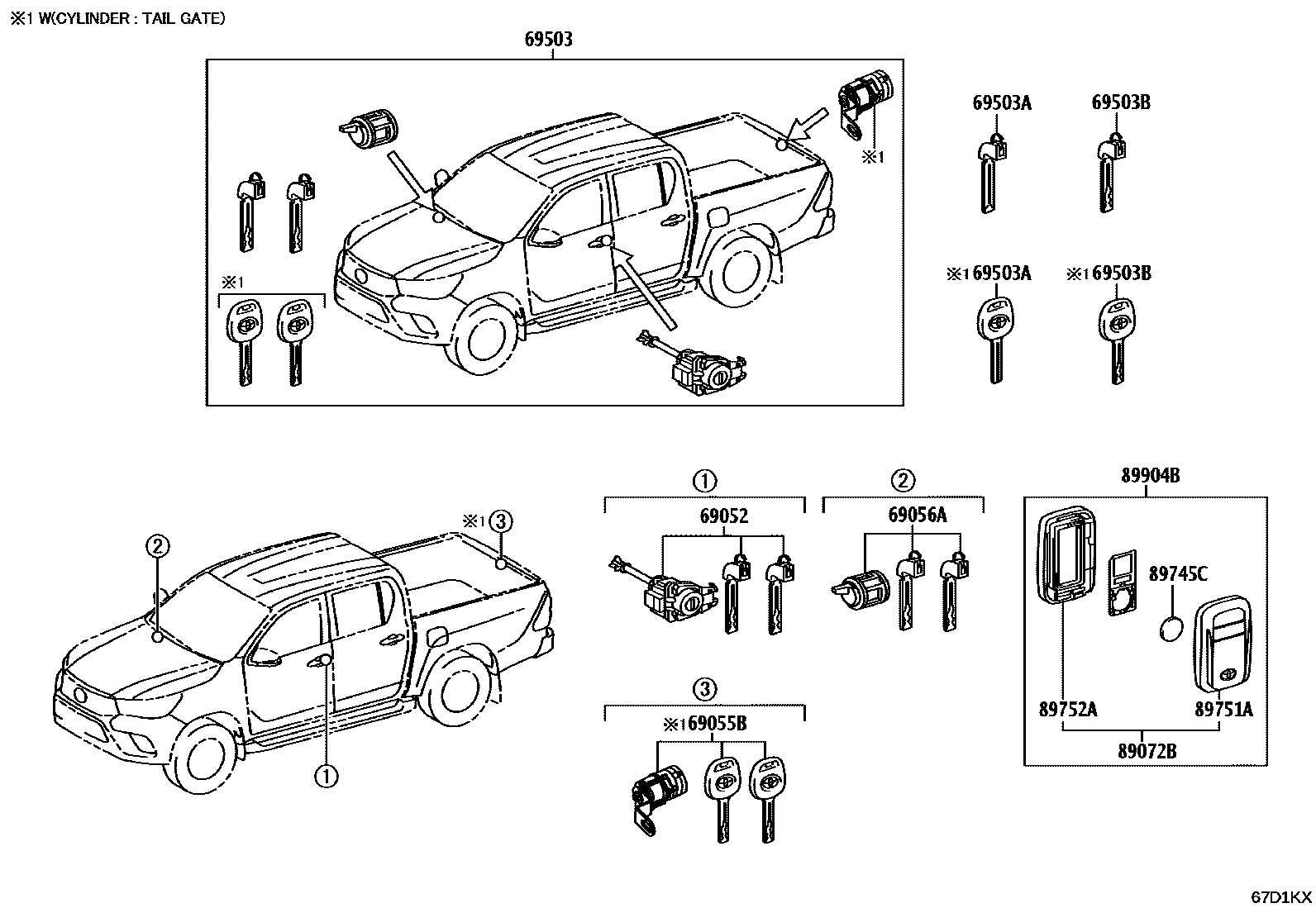

11 parts on this diagram · 5 diagrams in section
