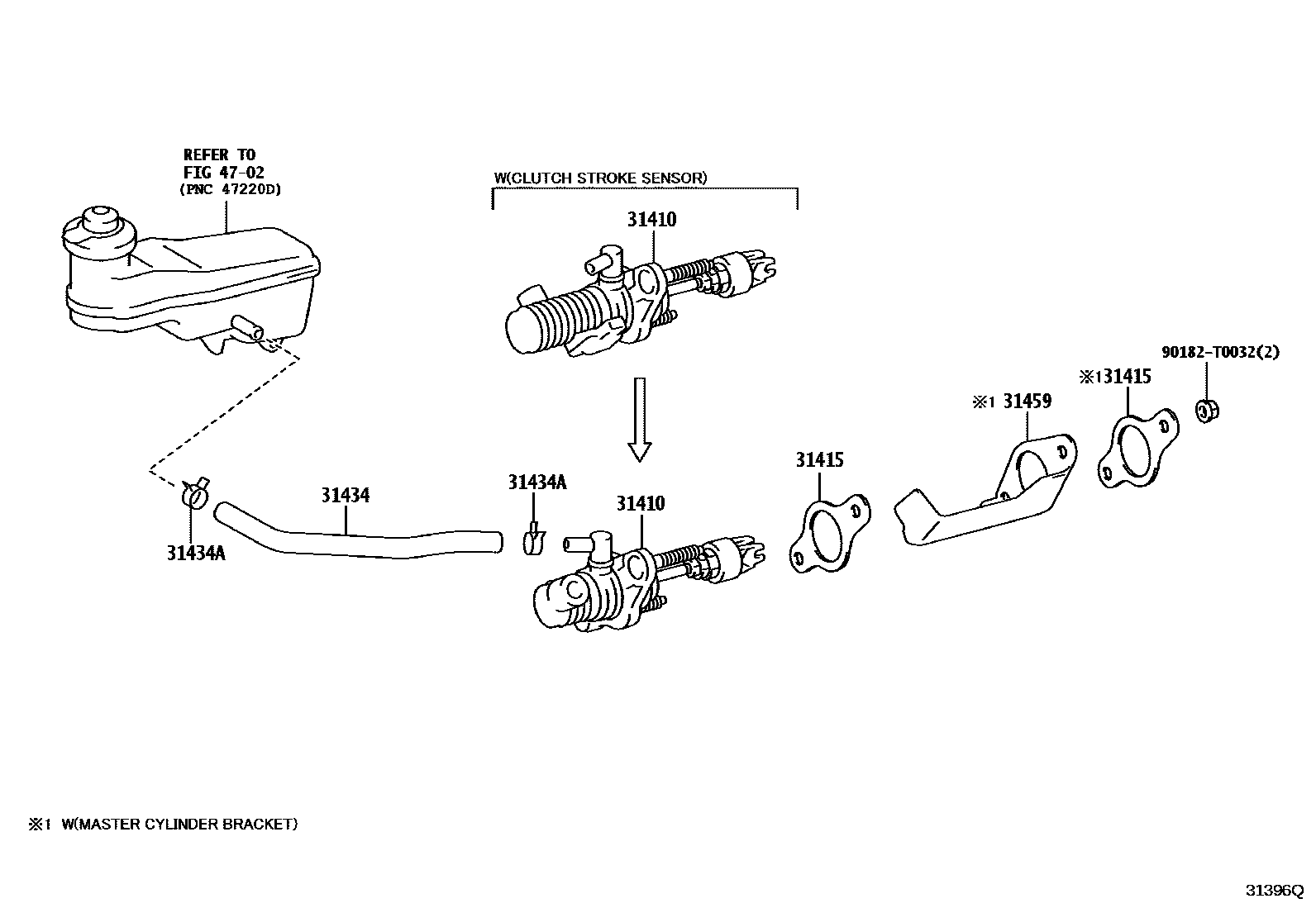

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K061iGUN126..LHD..(DCB,XTR)..6F; GUN126..RHD..6F..H202411

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31420-0K071iGUN12#..6F..S;GUN126..LHD..6F..H202411

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN12#..LHD..6F; GUN126..RHD..6F202411

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN126..RHD..6F..H202411

main31434-0K091iGUN126..RHD..S202411

main31434-0K111iGUN12#..LHD..6F202411

main31434-0K051iGUN126..LHD..(DCB,XTR)..6F202411

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015×2iGUN12#..6F202411

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-71010iGUN126..RHD..6F202411

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182T0032

main90182-T0032

7 parts on this diagram · 1 diagram in section
