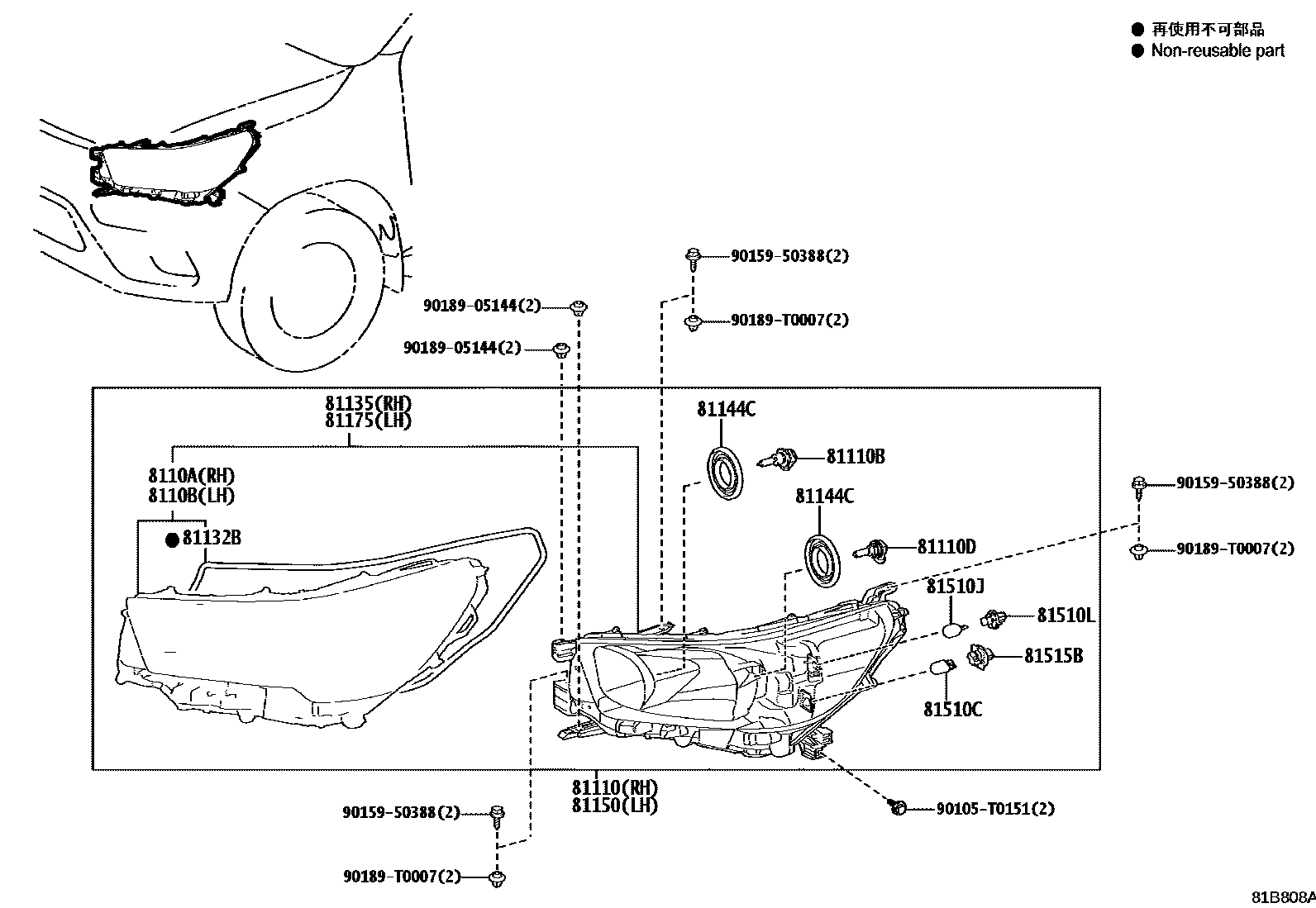

Toyota 781550 — HEADLAMP
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
81144CCOVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81510JBULB(FOR DAYTIME RUNNING LAMP)
81510LSOCKET, DAYTIME RUNNING LAMP
81515BSOCKET, FRONT TURN SIGNAL LAMP
90105T0151
9015950388
9018905144
90189T0007
18 parts on this diagram · 5 diagrams in section
HEADLAMP for Toyota 781550
This section contains 37 genuine Toyota parts for the HEADLAMP system of the Toyota 781550. Key components include: GARNISH, HEADLAMP ORNAMENT, RH, GARNISH, HEADLAMP ORNAMENT, LH, COMPUTER SUB-ASSY, HEADLAMP, RH, COMPUTER SUB-ASSY, HEADLAMP, LH, LENS SUB-ASSY, HEADLAMP, RH.
