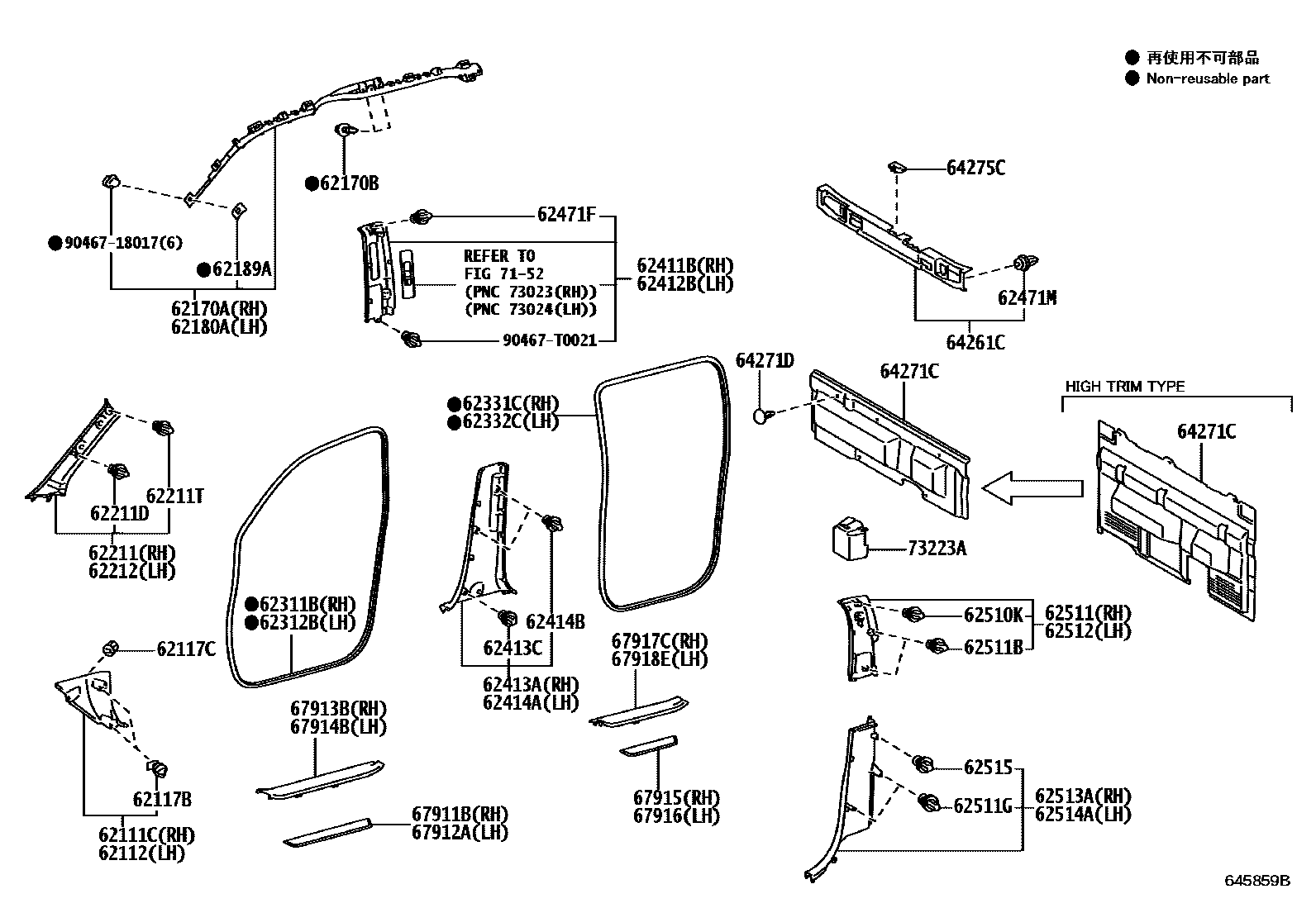

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K210-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main62111-KK010-C0iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K210-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main62112-KK010-C0iGUN125,135..SAP..6F202402-202410

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-11089-A0iGUN12#,135..THP202308-202410

IVORY

sub90467-11089

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iGUN12#,135..THP202308-202410

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K100iGUN12#,135..THP202308-202407

main62170-0K120iGUN125,135..DCB..SAP..6F202402-202410

main62170-0K150iGUN125,135..SCB202402-202408

main62170-0K160iGUN126..XTR;GUN125..XTR..6FC202402-202410

62170BBOLT, W/WASHER

main91673-80616iGUN125,135..SAP..6F202308-202410

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K100iGUN12#,135..THP202308-202407

main62180-0K120iGUN125,135..DCB..SAP..6F202402-202410

main62180-0K150iGUN125,135..SCB202402-202408

main62180-0K160iGUN125..XTR..6F202402-202410

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iGUN12#,135..THP202308-202410

62211GARNISH, FRONT PILLAR, RH

main62211-0K190-C0iGUN12#,135..THP..S202308-202407

BLACK,TRIM2#

main62211-KK030-B0iGUN126..SAP..H;GUN125..SAP..6FC..H202402-202410

LT.GRAY,TRIM2#

main62211-KK030-B0iGUN125,135..SAP..(L,S)202402-202410

LT.GRAY,TRIM20

main62211-KK030-C0iGUN125..6F..H202402-202410

BLACK,TRIM21

main62211-KK030-C0iGUN126..DCB..SAP202405-202406

BLACK,TRIM21,23,25

main62211-KK030-C0iGUN126..DCB..SAP..6FC..DCRL202406-202410

BLACK,TRIM21,25

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-T0021iGUN126..SAP;GUN125,135..SAP..6FC202308-202410

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-T0021iGUN12#,135..THP202308-202410

62212GARNISH, FRONT PILLAR, LH

main62212-0K190-B0iGUN12#..THP..H202308-202407

LT.GRAY,TRIM20

main62212-0K190-B0iGUN12#,135..THP..S202308-202407

LT.GRAY,TRIM2#

main62212-0K190-C0iGUN126..THP..H202308-202407

BLACK,TRIM21

main62212-0K190-C0iGUN126..THP..H202308-202407

BLACK,TRIM21,25

main62212-KK030-B0iGUN12#..SAP..6FC202402-202408

LT.GRAY,TRIM20

main62212-KK030-B0iGUN125..6F..H202402-202408

LT.GRAY,TRIM2#

main62212-KK030-C0iGUN126..DCB..SAP202405-202406

BLACK,TRIM21,23,25

main62212-KK030-C0iGUN126..XTR;GUN125..SAP..6FC202402-202408

BLACK,TRIM21

main62212-KK060-B0iGUN126..6F..S;GUN125,135..SAP..6FC..S202408-202410

LT.GRAY,TRIM2#

main62212-KK060-B0iGUN126..SAP..H;GUN125..SAP..6FC..H202406-202410

LT.GRAY,TRIM20

main62212-KK060-C1iGUN126..MHV;GUN126..6F..H;GUN126..XTR..6FC;GUN125..SAP..6FC..H202406-202410

BLACK,TRIM21,25

main62212-KK060-C1iGUN126..MHV;GUN126..6F..H;GUN126..XTR..6FC;GUN125..SAP..6FC..H202406-202410

BLACK,TRIM21

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0K111iGUN12#,135..THP202308-202407

main62311-0K141iGUN125,135..DCB..SAP..6F202402-202410

main62311-0K160iGUN126..XTR;GUN125..XTR..6FC202402-202410

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0K111iGUN12#,135..THP202308-202407

main62312-0K141iGUN125,135..DCB..SAP..6F202402-202410

main62312-0K160iGUN125..XTR..6F202402-202410

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K121iGUN12#,135..THP202308-202407

main62331-0K141iGUN125,135..DCB..SAP..6F202402-202410

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K121iGUN12#,135..THP202308-202407

main62332-0K141iGUN125,135..DCB..SAP..6F202402-202410

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0K110-B0iGUN12#,135..THP..S202308-202407

LT.GRAY,TRIM2#

main62411-0K110-B0iGUN12#,135..THP..S202308-202407

LT.GRAY,TRIM20

main62411-0K110-C0iGUN126..THP..H202308-202407

BLACK,TRIM21,25

main62411-0K110-C0iGUN126..THP..H202308-202407

BLACK,TRIM21

main62411-KK020-B0iGUN125,135..DCB..SAP..S202402-202410

LT.GRAY,TRIM2#

main62411-KK020-B0iGUN125,135..DCB..SAP..S202402-202410

LT.GRAY,TRIM20

main62411-KK020-C0iGUN126..DCB..SAP..6FC..DCRL202405-202410

BLACK,TRIM21,23,25

main62411-KK020-C0iGUN125..DCB..6F..H202402-202410

BLACK,TRIM21

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0K110-B0iGUN12#..THP..H202308-202407

LT.GRAY,TRIM2#

main62412-0K110-B0iGUN12#..THP..H202308-202407

LT.GRAY,TRIM20

main62412-0K110-C0iGUN126..THP..H202308-202407

BLACK,TRIM21

main62412-0K110-C0iGUN126..THP..H202308-202407

BLACK,TRIM21,25

main62412-KK020-B0iGUN125,135..DCB..SAP..S202402-202410

LT.GRAY,TRIM2#

main62412-KK020-B0iGUN125,135..DCB..SAP..S202402-202410

LT.GRAY,TRIM20

main62412-KK020-C0iGUN125..DCB..6F..H202402-202410

BLACK,TRIM21

main62412-KK020-C0iGUN126..DCB..SAP..6FC..DCRL202405-202410

BLACK,TRIM21,23,25

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K110-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main62413-KK010-C0iGUN126..DCB..SAP;GUN125,135..DCB..SAP..6FC202402-202410

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iGUN125,135..DCB..SAP..6F202308-202410

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K110-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main62414-KK010-C0iGUN126..DCB..SAP;GUN125,135..DCB..SAP..6FC202402-202410

BLACK,TRIM2#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10188iGUN126..DCB..SAP;GUN125,135..DCB..SAP..6FC202308-202410

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iGUN125,135..DCB..SAP..6F202308-202410

62471MCLIP

main90467-T0021iGUN125,135..(DCB,SCB)..SAP..6F202308-202410

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10188iGUN126..SAP;GUN125,135..SAP..6FC202308-202410

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-0K360-B0iGUN12#..THP..H202308-202407

LT.GRAY,TRIM2#

main62511-0K360-B0iGUN12#,135..THP..S202308-202407

LT.GRAY,TRIM20

main62511-0K360-C0iGUN125..THP..H202308-202407

BLACK,TRIM21

main62511-0K360-C0iGUN126..THP..H202308-202407

BLACK,TRIM21,25

main62511-KK020-B0iGUN125,135..SCB202402-202408

LT.GRAY,TRIM2#

main62511-KK040-B0iGUN125..XTR..S202402-202410

LT.GRAY,TRIM2#

main62511-KK040-B0iGUN125..XTR..S202402-202410

LT.GRAY,TRIM20

main62511-KK040-C0iGUN126..XTR..H;GUN125..XTR..6FC..H202402-202410

BLACK,TRIM21

main62511-KK070-B0iGUN125..DCB..6F..H202402-202410

LT.GRAY,TRIM2#

main62511-KK070-B0iGUN126..DCB..SAP..H;GUN125..DCB..SAP..6FC..H202402-202410

LT.GRAY,TRIM20

main62511-KK070-C0iGUN126..MHV;GUN126..DCB..6F..H;GUN125..DCB..SAP..6FC..H202402-202410

BLACK,TRIM21

main62511-KK070-C0iGUN126..DCB..SAP..6FC..DCRL202405-202410

BLACK,TRIM21,23,25

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-T0021iGUN12#,135..THP202308-202410

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-T0021iGUN126..SAP;GUN125,135..SAP..6FC202308-202410

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-0K360-B0iGUN12#,135..THP..S202308-202407

LT.GRAY,TRIM2#

main62512-0K360-B0iGUN12#..THP..H202308-202407

LT.GRAY,TRIM20

main62512-0K360-C0iGUN125..THP..H202308-202407

BLACK,TRIM21,25

main62512-0K360-C0iGUN126..THP..H202308-202407

BLACK,TRIM21

main62512-KK020-B0iGUN125,135..SCB202402-202408

LT.GRAY,TRIM2#

main62512-KK040-B0iGUN126..XTR..H;GUN125..XTR..6FC..H202402-202410

LT.GRAY,TRIM2#

main62512-KK040-B0iGUN126..XTR..S;GUN125..XTR..6FC..S202402-202410

LT.GRAY,TRIM20

main62512-KK040-C0iGUN125..XTR..6F..H202402-202410

BLACK,TRIM21

main62512-KK070-B0iGUN126..DCB..6F..S;GUN125,135..DCB..SAP..6FC..S202402-202410

LT.GRAY,TRIM2#

main62512-KK070-B0iGUN125,135..DCB..SAP..S202402-202410

LT.GRAY,TRIM20

main62512-KK070-C0iGUN126..MHV;GUN126..DCB..6F..H;GUN125..DCB..SAP..6FC..H202402-202410

BLACK,TRIM21

main62512-KK070-C0iGUN126..DCB..SAP..6FC..DCRL202405-202410

BLACK,TRIM21,23,25

62513APANEL, QUARTER TRIM, LOWER RH

main62513-0K110-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

sub62513-0K111

main62513-0K250-C0iGUN126..XTR;GUN125..XTR..6FC202402-202410

BLACK,TRIM2#

main62513-KK010-C0iGUN125,135..SCB202402-202408

BLACK,TRIM2#

main62513-KK060-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-0K110-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main62514-0K250-C0iGUN125..XTR..6F202402-202410

BLACK,TRIM2#

main62514-KK010-C0iGUN125,135..SCB202402-202408

BLACK,TRIM2#

main62514-KK020-C0iGUN126..MHV202406-202410

BLACK,TRIM2#

main62514-KK060-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

62515CLIP, QUARTER INSIDE TRIM

main90467-10167iGUN12#,135..THP202308-202407

main90467-T0021iGUN125,135..DCB..SAP..6F202402-202410

64261CGARNISH, BACK PANEL, UPPER

main64261-0K090-B0iGUN12#..THP..H202308-202407

DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION),LT.GRAY,TRIM2#

main64261-0K090-B0iGUN12#,135..THP202308-202407

LT.GRAY,TRIM2#

main64261-0K090-B0iGUN12#,135..THP202308-202407

DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD)),LT.GRAY,TRIM2#

main64261-KK010-B0iGUN125,135..SCB202402-202408

LT.GRAY,TRIM2#

main64261-KK050-B0iGUN126..DCB..SAP;GUN125,135..DCB..SAP..6FC202402-202410

LT.GRAY,TRIM2#

64271CTRIM, BACK PANEL

main64271-0K250iGUN125,135..SCB202402-202408

main64271-0K280iGUN125,135..DCB..SAP..S202402-202410

main64271-0K300iGUN12#,135..THP202308-202407

main64271-0K370iGUN125..DCB..6F..H202402-202410

main64271-0K440-C0iGUN125..XTR..6F202402-202410

BLACK,TRIM2#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-10188iGUN125..XTR..6F202402-202410

NO.1

main90467-T0004-C1iGUN12#,135..THP202308-202410

BLACK

main90467-T0021iGUN126..XTR;GUN125..XTR..6FC202402-202410

NO.2

64275CCOVER, BACK PANEL TRIM

main64275-0K030-B0iGUN12#,135..THP202308-202410

LT.GRAY,TRIM2#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0K030-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67911-KK010-C0iGUN126..DCB..SAP;GUN125,135..DCB..SAP..6FC202402-202410

BLACK,TRIM2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0K010-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67912-KK010-C0iGUN126..DCB..SAP;GUN125,135..DCB..SAP..6FC202402-202410

BLACK,TRIM2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K150-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67913-KK010-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

main67913-KK020-C0iGUN125,135..SCB202402-202408

BLACK,TRIM2#

main67913-KK030-C0iGUN125..XTR..6F202402-202410

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K150-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67914-KK010-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

main67914-KK020-C0iGUN125,135..SCB202402-202408

BLACK,TRIM2#

main67914-KK030-C0iGUN125..XTR..6F202402-202410

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0K030-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67915-KK010-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0K030-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67916-KK010-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K150-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67917-KK010-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K150-C0iGUN12#,135..THP202308-202407

BLACK,TRIM2#

main67918-KK010-C0iGUN125,135..DCB..SAP..6F202402-202410

BLACK,TRIM2#

7152

73223ACOVER, SEAT BELT RETRACTOR

main73223-KK020iGUN12#,135..THP202308-202410

9046718017

main90467-18017

90467T0021

main90467-T0021

48 parts on this diagram · 3 diagrams in section
