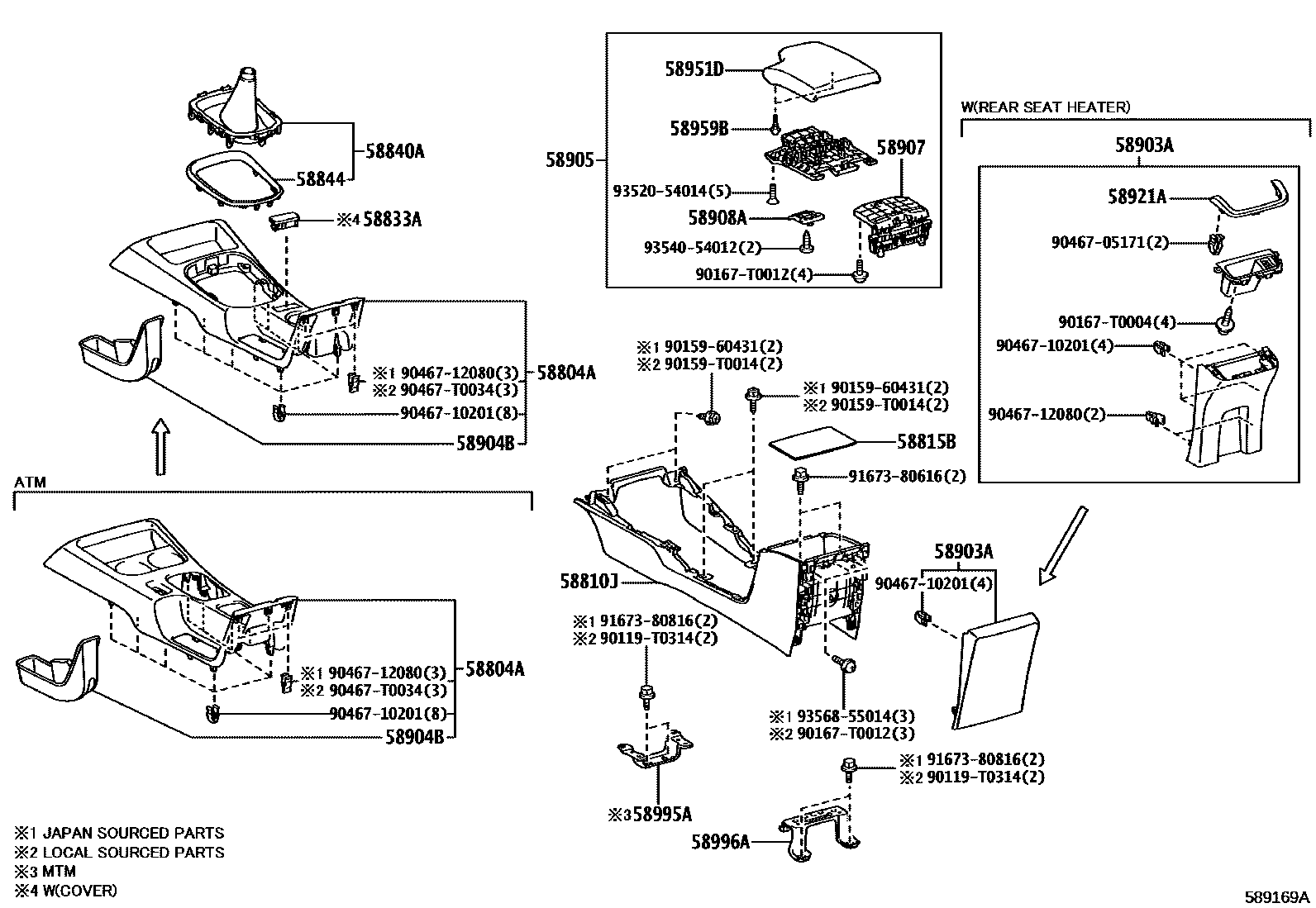

CONSOLE BOX & BRACKET
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58815BCARPET, CONSOLE BOX
58833ACOVER, CONSOLE, UPPER
BLACK,TRIM2#
58840ACOVER ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLACK,TRIM2#
58844BEZEL, CONSOLE BOX
BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
UKRAINE SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER,BLACK,TRIM2#
GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#
GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT,LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#
MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER &REAR SEAT),BLACK,TRIM2#
GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT(LEATHER)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
GR SPORT WIDE TREAD&STEERING WHEEL-GR SPORT,LEATHER & WITH(STEERING HEATER)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER&SEATHEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH),BLACK/BLACK,TRIM2#
sub58905-KK130
BLACK/BLACK,TRIM20,21,25
sub58905-KK140
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH),BLACK/BLACK,TRIM2#
sub58905-KK140
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58921APANEL, REAR CONSOLE, UPPER
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH),BLACK/GRAY,TRIM2#
sub58951-KK140
BLACK,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20,21,25
sub58951-KK150
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH),BLACK/GRAY,TRIM2#
sub58951-KK150
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
90119T0314
main90119-T0314
9015960431
main90159-60431
90159T0014
main90159-T0014
90167T0004
main90167-T0004
90167T0012
main90167-T0012
9046705171
main90467-05171
9046710201
main90467-10201
9046712080
main90467-12080
90467T0034
main90467-T0034
9167380616
main91673-80616
9167380816
main91673-80816
9352054014
main93520-54014
9354054012
main93540-54012
9356855014
main93568-55014
30 parts on this diagram · 2 diagrams in section
