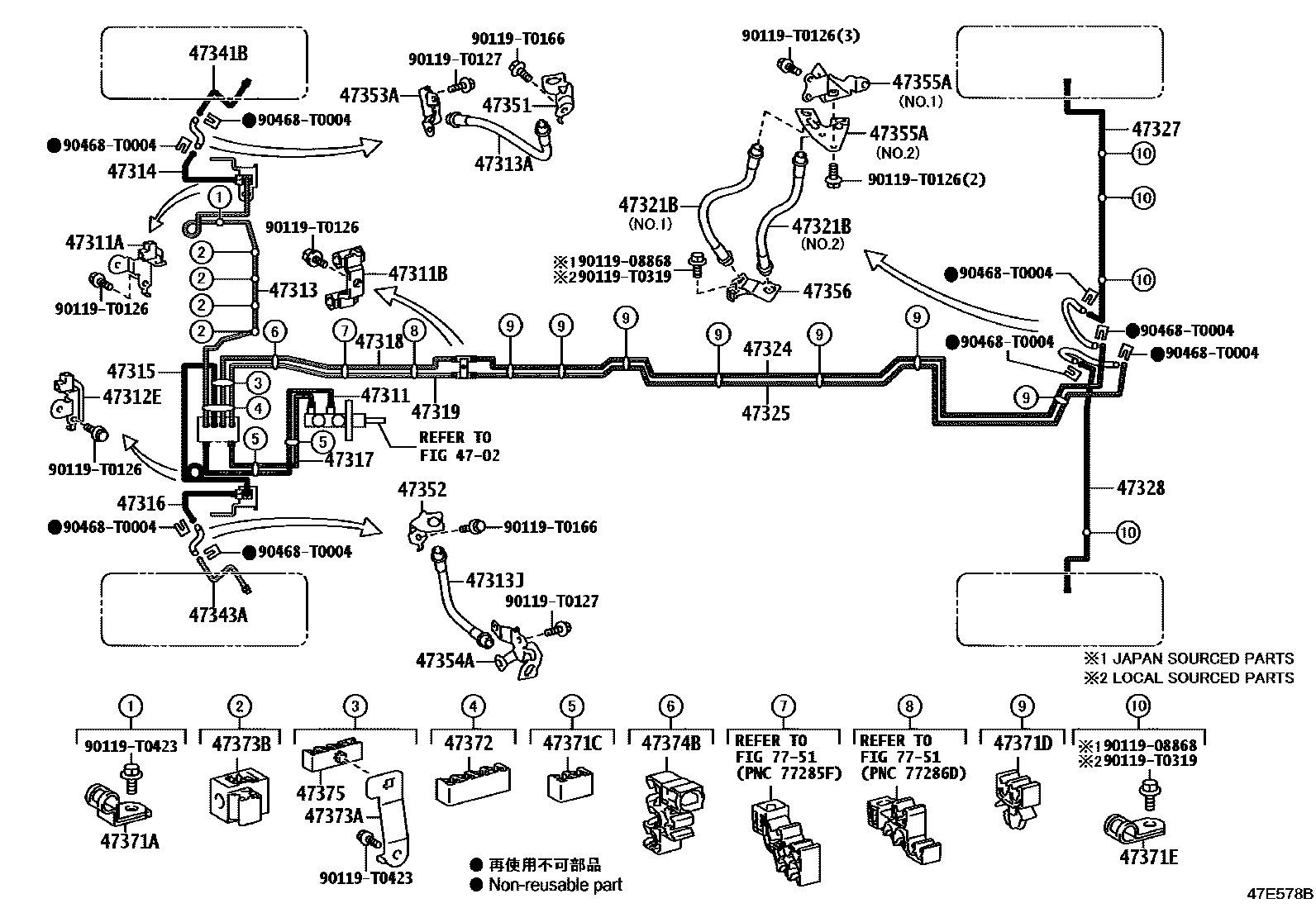

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311AWAY(FOR FRONT BRAKE TUBE)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
GR SPORT WIDE TREAD
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
GR SPORT WIDE TREAD
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
47319TUBE, FRONT BRAKE, NO.9
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS)
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
47324TUBE, REAR BRAKE, NO.4
ISRAEL EURO6 FOR 12 E-PF; TURKEY EURO6 FOR 12 E-PF; UKRAINE SPEC (EURO 6 REGULATION)
RUSSIA&CUSTOM UNION SPEC
47325TUBE, REAR BRAKE, NO.5
ISRAEL EURO6 FOR 12 E-PF; TURKEY EURO6 FOR 12 E-PF; UKRAINE SPEC (EURO 6 REGULATION)
RUSSIA&CUSTOM UNION SPEC
47327TUBE, REAR BRAKE, NO.7
GR SPORT WIDE TREAD
47328TUBE, REAR BRAKE, NO.8
GR SPORT WIDE TREAD
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2
GR SPORT WIDE TREAD
47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2
GR SPORT WIDE TREAD
47355ABRACKET, FLEXIBLE HOSE, NO.5
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
47356BRACKET, FLEXIBLE HOSE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
GR SPORT WIDE TREAD
47372CLAMP, BRAKE TUBE, NO.2
47373ABRACKET, TUBE CLAMP
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
7751FUEL TANK & TUBE
9011908868
main90119-08868
90119T0126
main90119-T0126
90119T0127
main90119-T0127
90119T0166
main90119-T0166
90119T0319
main90119-T0319
90119T0423
main90119-T0423
90468T0004
main90468-T0004
44 parts on this diagram · 6 diagrams in section
