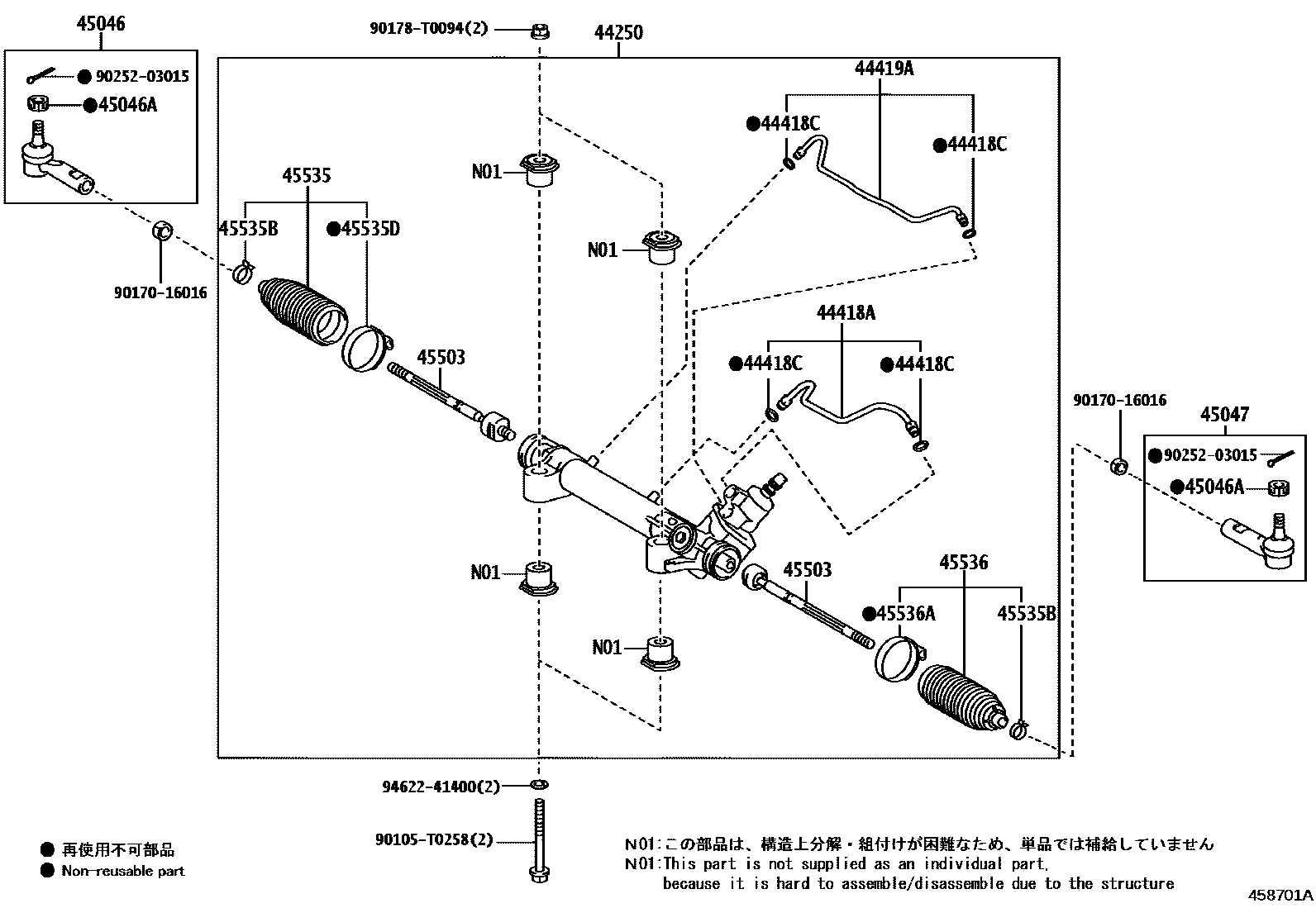

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0K723iGUN126..RHD;GUN125..RHD..6FC202402-202410

main44250-0K733iGUN12#,135..THP202308-202407

main44250-0K743iGUN125,135..LHD..SAP..6F202402-202408

main44250-0KA21iGUN126..RHD..6FC..DCRL202405-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

main44250-0KA31iGUN126..LHD..DCB..SAP..6FC..DCRL202308-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K260iGUN126..RHD;GUN125..RHD..6FC202402-202410

main44418-0K270iGUN12#,135..THP202308-202407

main44418-0K280iGUN125,135..LHD..SAP..6F202402-202408

main44418-0K250iGUN126..RHD..6FC..DCRL202405-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032×4iGUN126..LHD..SAP;GUN125,135..LHD..SAP..6FC202308-202410

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K260iGUN125..RHD..6F202402-202408

main44419-0K270iGUN12#,135..THP202308-202407

main44419-0K280iGUN126..LHD..SAP;GUN125,135..LHD..SAP..6FC202402-202410

main44419-0K250iGUN126..RHD..6FC..DCRL202405-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

45046END SUB-ASSY, TIE ROD, RH

main45046-09800iGUN125,135..SAP..6F202308-202408

main45046-09A30iGUN126..DCB..SAP..6FC..DCRL202308-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002×2iGUN12#,135..THP202308-202407

45047END SUB-ASSY, TIE ROD, LH

main45046-09800iGUN126..SAP;GUN125,135..SAP..6FC202308-202410

main45046-09A30iGUN126..THP..H202308-202407

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

45503END SUB-ASSY, STEERING RACK

main45503-0K130×2iGUN12#,135..THP202308-202407

main45503-0K090×2iGUN126..DCB..SAP..6FC..DCRL202308-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

45535BOOT, STEERING RACK, NO.1

main45535-09390iGUN12#,135..THP202308-202407

main45535-09410iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

45535BCLIP(FOR STEERING RACK BOOT)

main90466-T0004×2iGUN12#,135..THP202308-202407

main90466-T0005×2iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0K030iGUN12#,135..THP202308-202407

main45538-0K040iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

45536BOOT, STEERING RACK, NO.2

main45535-09390iGUN12#,135..THP202308-202407

main45535-09410iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0K030iGUN12#,135..THP202308-202407

main45538-0K040iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

90105T0258

main90105-T0258

9017016016

main90170-16016

90178T0094

main90178-T0094

9025203015

main90252-03015

9462241400

main94622-41400

18 parts on this diagram · 2 diagrams in section
