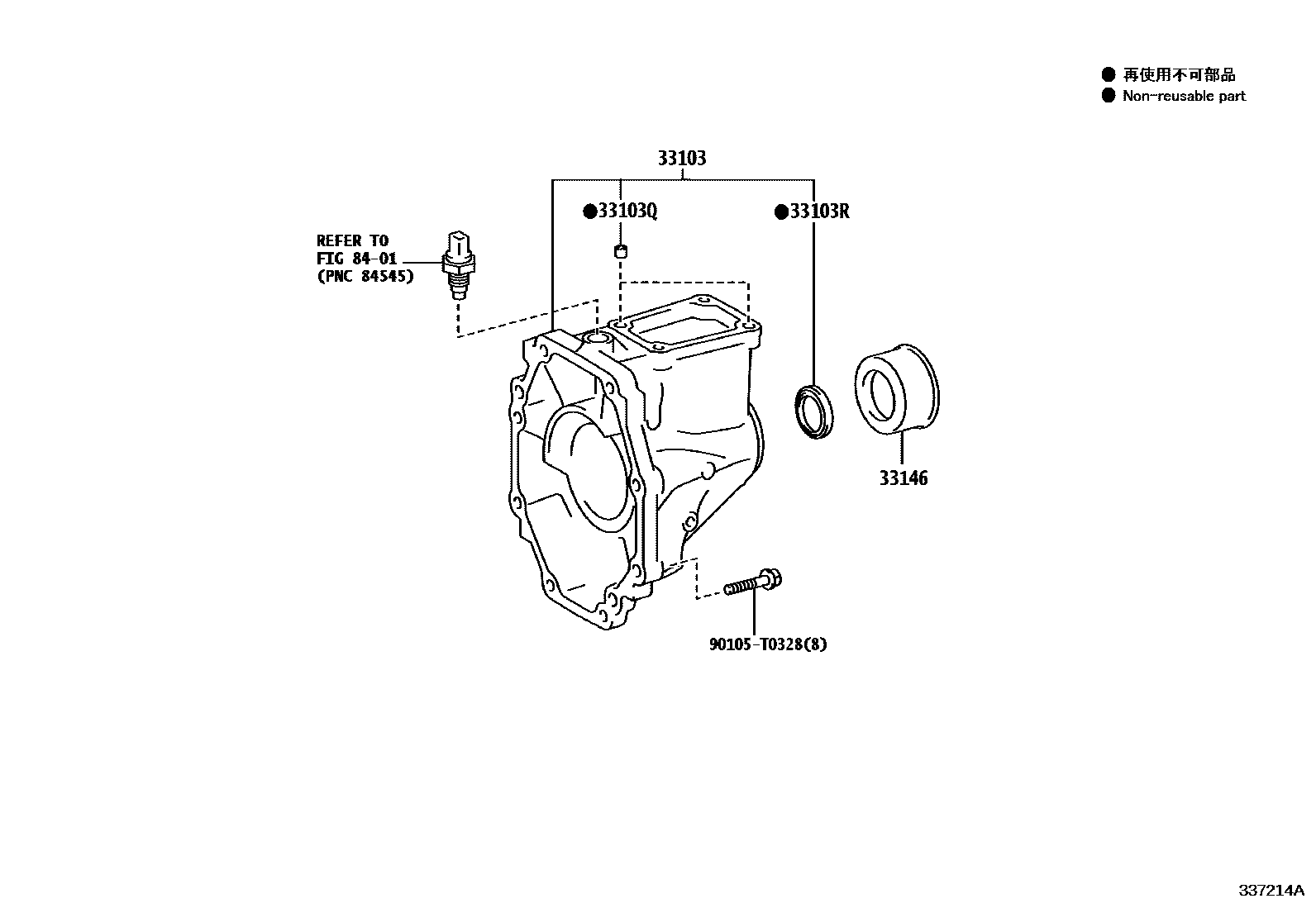

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K110iGUN135..SAP202308-202408

TYPE A:REFER 33-01

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-11021×2iGUN135..THP..6F202308-202407

TYPE A:REFER 33-01

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-T0069iGUN135..SAP202308-202408

TYPE A:REFER 33-01

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-0K020iGUN135..THP..6F202308-202407

(L)

main33146-35020iGUN135..THP..6F202308-202407

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0328

main90105-T0328

6 parts on this diagram · 1 diagram in section
