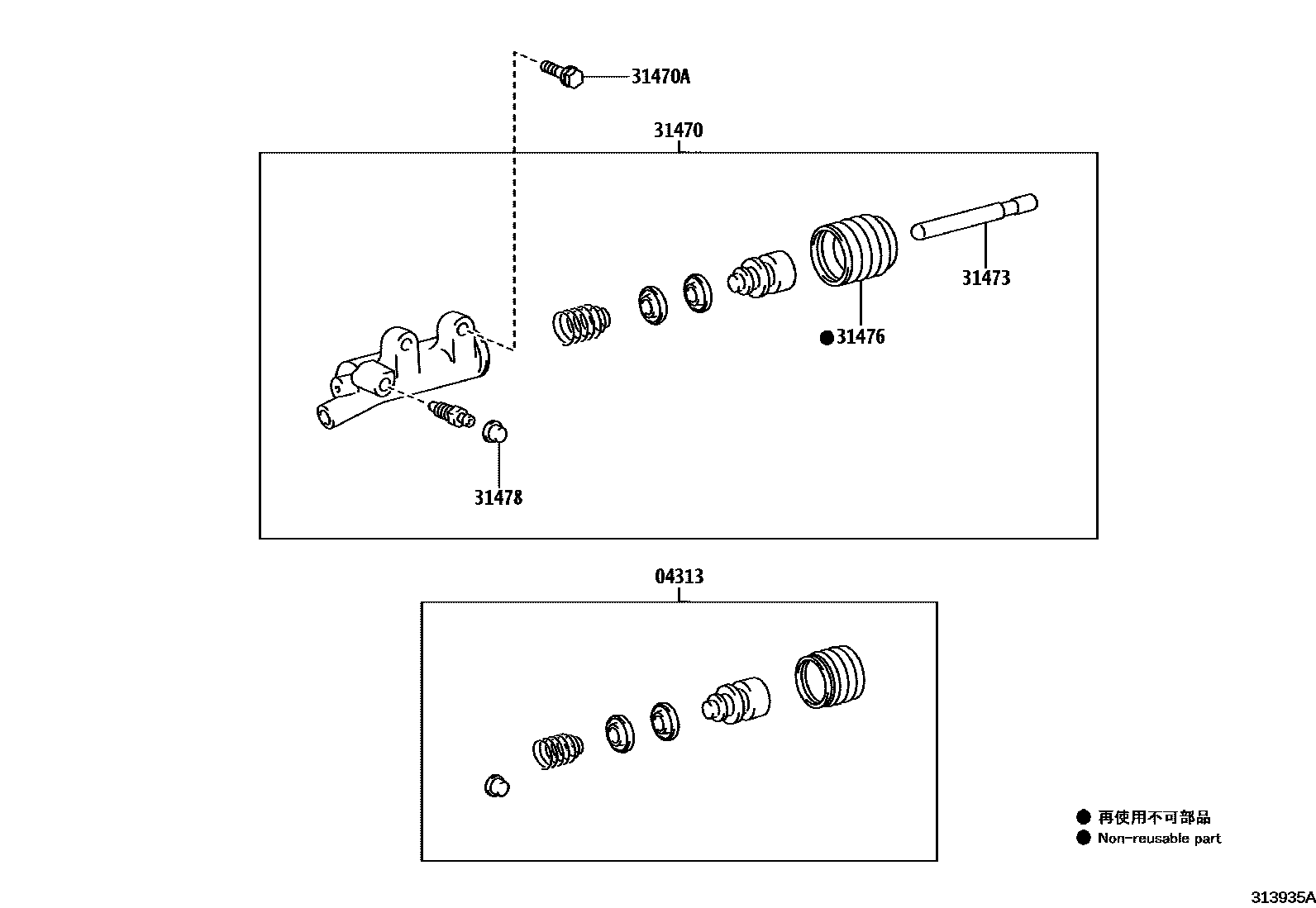

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K080iGUN125,135..THP..6F202308-202407

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K100iGUN125,135..THP..6F202308-202407

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221×2iGUN125,135..THP..6F202308-202407

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0K030iGUN125,135..THP..6F202308-202407

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iGUN125,135..THP..6F202308-202407

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGUN125,135..THP..6F202308-202407

6 parts on this diagram · 1 diagram in section
